BITUBO Cartridge Kit for Honda CBR 600 RR, 2024-
€2,092.56 gross €2,202.69 UVP brutto
Product number:
BI-H0164-EBH09
Product details
BITUBO Cartridge Kit with springs, spring preload 15mm (15 turns) adjustable, one leg with rebound damping adjustable in 24 clicks, one leg with compression damping damping adjustable in 24 clicks; without ABE, for Honda CBR 600 RR, Type PC69, Model Year 2024-General description
The EBH pressure cartridge features a range of innovative systems, such as the well-known FPS, EC, LC, and the new OPC (over pressure control) system. These systems are the result of many years of development work by our R&D department in collaboration with some of the best teams that have participated in SBK, BSB, IDM, and CIV.On the upper cap, all settings, spring preload, extension, and compression, which are different in the two cartridges, are simple and intuitive.
The high damping coefficient at very low speeds controls the excessive sinking of the front wheel already in the first moments of brake.
TECHNICAL FEATURES
- Hydraulic control with FPS system (Bitubo Patent) Ø27mm Ergal-piston
- Piston rod Ø 10 mm with low-friction surface coating
- Mechanical bottom-out contact with NBR polyurethane buffer
- springs made of Cr-Si steel with heat treatment, embedding, and final bal blasting
- Upper fork cap with integrated spring preload adjustment
- Independent damping adjustment for compression and rebound
- Coaxial compensation chamber (Bitubo Patent)
- Ergal cartridge body with low-friction surface coating
- Hydraulic lubrication separated from sliding lubrication
- Pressure application force control system
LC: This product has a high proportion of special light alloy alloys and weight-optimised details, with the aim of achieving the greatest possible lightness.
FPS: Full Pressure System exhibits the highest efficiency and practicality of this patented system. This innovative damping system provides immediate damping without any cavitation phenomena in the internal fluid. The system is pressurised with low-pressure gas. The cartridges are asymmetrical: one controls the compression, the other the rebound. With two alternating chambers at both ends, it is possible to generate high damping force even at very low speeds.
INCLUDED IN THE PACKAGE:
- Installation instructions with recommended oil viscosity and oil level, corresponding the experiences and data from our R&D team, adjustment and mounting tools, Fuchs-Silkolene oil with high smoothness
- The package includes 2 additional spare springs with different stiffness values for various setups, to achieve the best control of the highest power, performance levels.
| fork filter: | Cartridge |
|---|
Delivery Scope
- Cartridge with springs
- The package includes 2 additional spare springs with
different stiffness rates for various setups,
to achieve the best control of the highest
power, performance levels
- 1 liter oil
- Wrench for tightening the cartridge cap
- 2x Cartridge fixing wrench

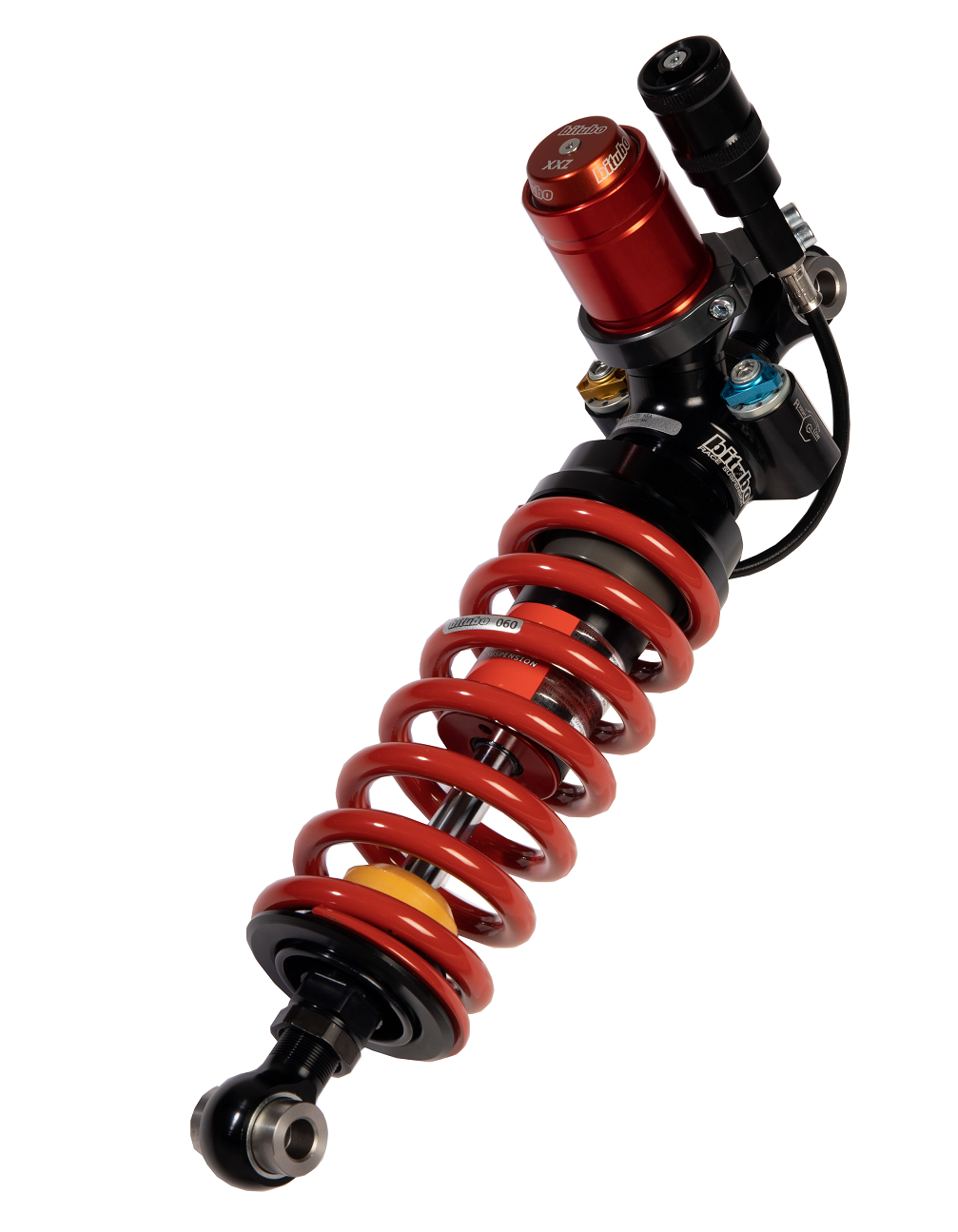

BI-H0130-XXZ31
€1,464.56
| Manufacturer | Model | Type | Model Year | ccm |
|---|---|---|---|---|
| Honda | CBR600RR | PC69 EURO5+ | 2024 - | 600 |
