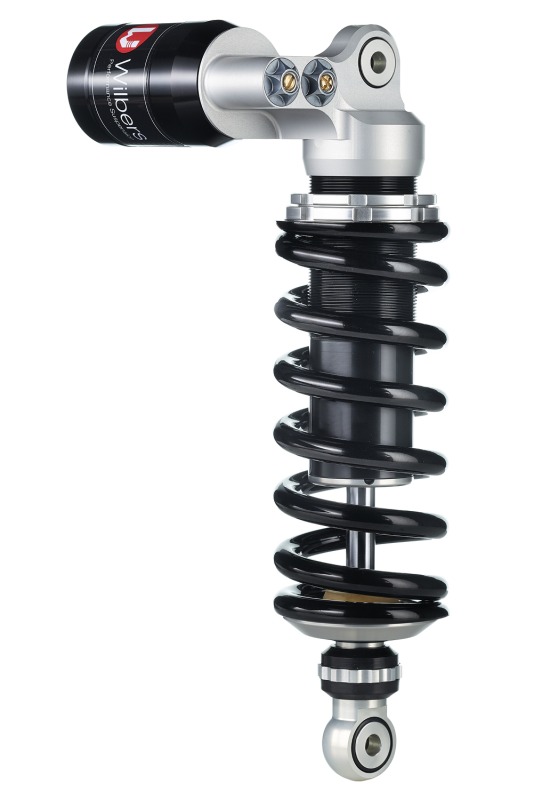

Wilbers shock absorber 643 Adjustline for Suzuki SV 1000 N / S 03-05

Product Details

Wilbers Performance Suspension Adjustline 643 Competition P, mono-shock absorber rear, rebound and compression damping as well as spring preload adjustable, horizontally mounted reservoir (for direction of travel), for Suzuki SV 1000 N / S, type WVBX, model year 03-05, with ABE according to scope of application.

General Description

Adjustline Ø 46 mm – the robust ones: Equipped with a 46 mm piston, they can withstand all impacts, are multi-adjustable, and available in various versions. A strong alternative!

Adjustline 643 P Competition
The mounting for the reservoir is made of solid aluminium and houses the adjustment units for high- and low-speed compression damping damping. Hydraulic lock-up and impacts to the chassis are prevented by a pressure relief valve. The shock absorber is fully adjustable with 22 clicks each for high-speed, low-speed, and rebound. The spring preload can be continuously modified mechanically or even hydraulic. Best materials ensure long service life and reliability. Damping and spring are chosen based on rider data as always!

Features:
- 22-way adjustable low-speed compression damping damping
- 22-way adjustable high-speed compression damping damping
- Continuous spring preload via the supplied hook wrench
- 22-way adjustable rebound damping

Additional Information and Notes:

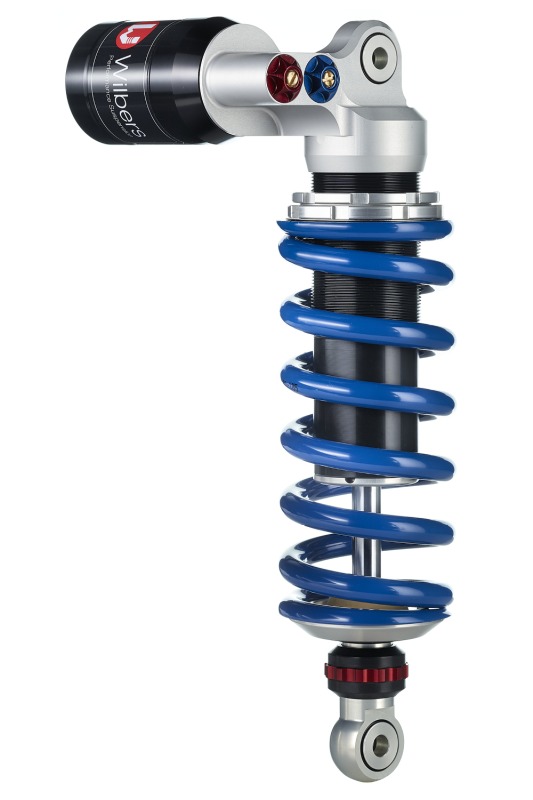

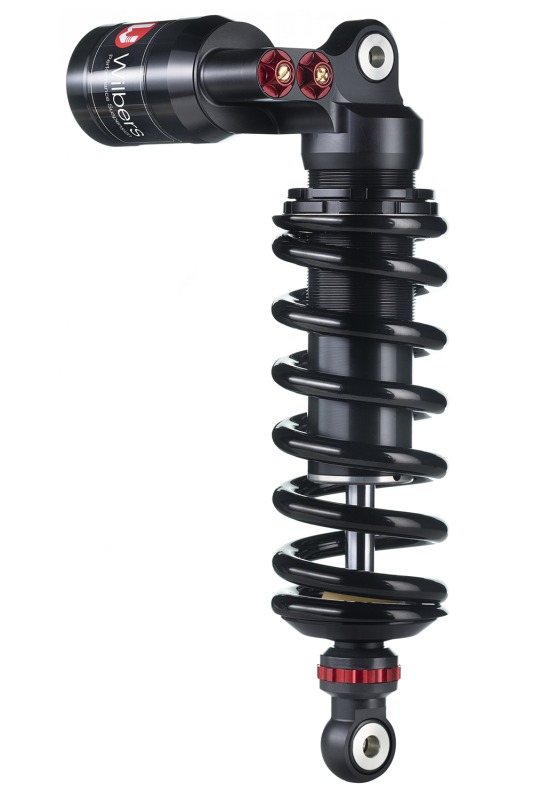

- In addition to the basic versions with black (Blackline) and blue (Blueline) spring, you can, for an extra charge, have the spring painted by us in all RAL colours. Furthermore, it is possible to order the shock absorber as Wilbers Nightline. The aluminium upper surfaces are matt black anodised in the Nightline, the spring is black painted, and applications that serve the setting of the shock absorber are red anodised. For extra charge see form (please specify colour in the ordering process)
- Also available in various lengths for raising or lowering: please inquire about lengths
- Please also specify in the ordering process: rider weight including clothing in kg, pillion weight including clothing in kg, luggage weight in kg, frequency of solo operation without luggage in %, frequency of pillion operation in %, frequency of luggage operation in %, riding style (touring/sporty), intended use (racetrack/street/off-road)
