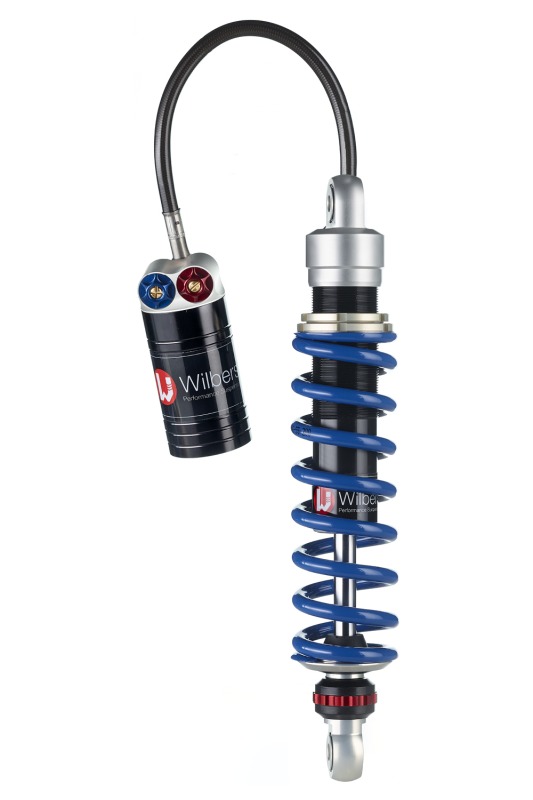

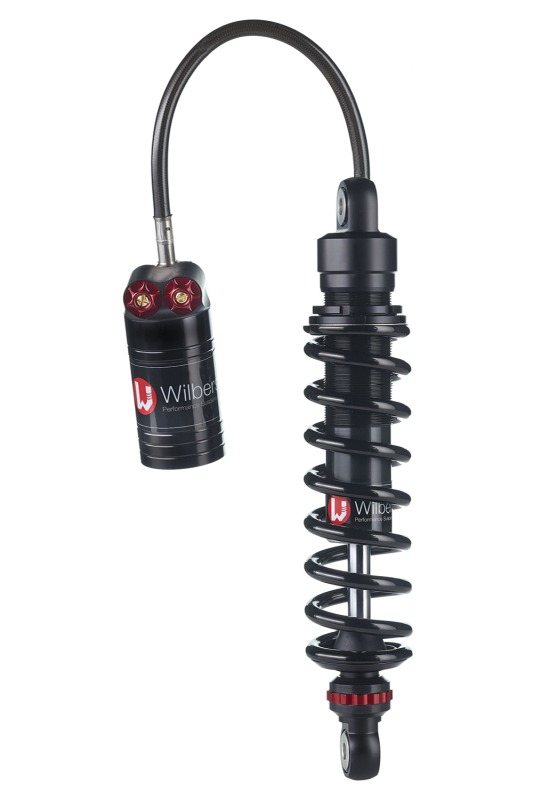

Wilbers shock absorber 631 Adjustline for Honda CB 500 X 13-

Product Details

Wilbers Performance Suspension Adjustline 631 Competition, mono-shock rear, adjustable rebound and compression damping as well as spring preload, with a remote reservoir connected via a hose, for Honda CB 500 X, type PC 46, model year 13-, fixed lowering -10 mm, with ABE according to scope of use.

General Description

Adjustline 36 mm radial pistons in precision-honed cylinders guarantee optimal function without external diameter space issues.

Adjustline 631
With this shock absorber, the balance tank is attached to a steel braided hose. This makes it the ideal shock absorber for street motorcycles with space constraints. The flexible hose allows the balance tank to be mounted wherever space is available – for example, at the frame rear, where air currents from the air stream provide cooling. The adjustment knobs for the low and high-speed compression damping range, each adjustable in 22 increments, are also easily accessible from the outside. The rebound damping can be adjusted 22-fold via an open bleed system, and the spring preload is continuously adjustable.

Features:
- With hose-connected balance tank
- Continuous spring preload via the supplied hook wrench
- 22-way adjustable low-speed compression damping damping
- 22-way adjustable high-speed compression damping damping
- 22-way adjustable rebound damping

Additional Information and Notes:
- In addition to the standard versions with black (Blackline) and blue (Blueline) spring, you can, for an extra charge, have the surface of any spring painted by us in all RAL colours (please specify colour during the order process)
- Also available in various lengths for raising or lowering: please inquire about lengths
- Please also specify during the order process: rider weight including gear in kg, pillion weight including gear in kg, luggage weight in kg, frequency of solo riding without luggage in %, frequency of pillion riding in %, frequency of luggage riding in %, riding style (touring/sporty), intended use (race track/street/off-road)
