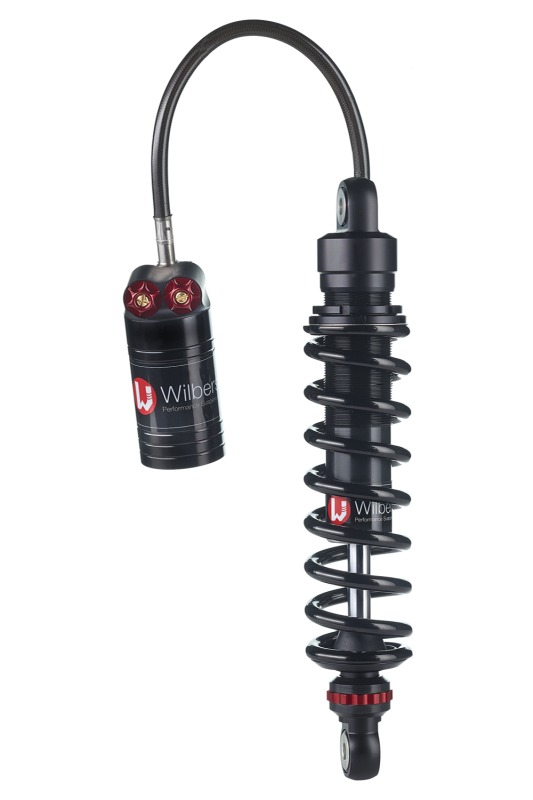

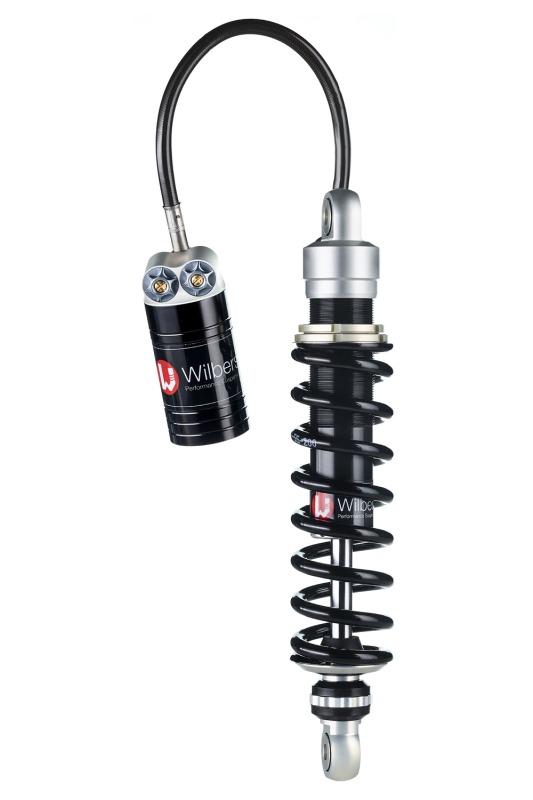

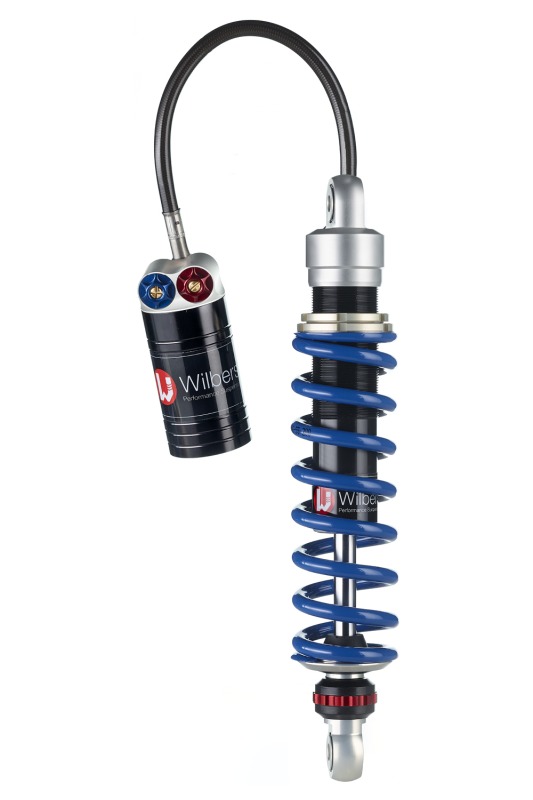

Wilbers shock absorber 631 Adjustline for Honda CB 500 F 13- Lowering -30 mm

Product Details

Wilbers Performance Suspension Adjustline 631 Competition, mono-shock absorber rear, rebound and compression damping as well as spring preload adjustable, remote reservoir on a hose connection, for Honda CB 500 F, Type PC 45, model year 13-, fixed lowering -30 mm, with ABE (General Operating Permit) according to scope of application;
For lowering by 30mm, the corresponding fork spring kit is necessary.

General Description

Adjustline 36 mm radial pistons in ground precision cylinders guarantee optimal function without outer diameter space issues.

Adjustline 631
With this shock absorber, the balance tank is attached to a steel braided hose. This makes it the ideal shock absorber for street motorcycles with space constraints. The flexible hose allows the balance tank to be mounted where space is available - e.g., on the frame rear, where air currents from the air stream provide cooling. The adjustment knobs for the low and high-speed range of the compression damping, each adjustable in 22 steps, are also easily accessible from the outside. Rebound can be 22-way adjusted via an open bleed system, and the spring base can be continuously adjusted.

Features:
- With hose-connected balance tank
- Continuous spring preload by means of the supplied hook wrench
- 22-way adjustable low-speed compression damping damping
- 22-way adjustable high-speed compression damping damping
- 22-way adjustable rebound damping

Additional Information and Notes:
- Besides the basic versions with black (Blackline) and blue (Blueline) spring, for an extra charge, you can have the surface of any spring painted by us in all RAL colours (please specify colour in the order process)
- Also available in different lengths for raising or lowering: Please inquire about lengths
- Please also specify in the order process: rider weight including clothing in kg, pillion weight including clothing in kg, luggage weight in kg, frequency of solo operation without luggage in %, frequency of pillion operation in %, frequency of luggage operation in %, riding style (touring/sporty), intended use (race track/street/off-road)
