BITUBO Cartridge Kit for Kawasaki ZX10R 2016- and ZX10RR 2017-
€2,092.56 gross €2,202.69 UVP brutto
Product number:
BI-K0107-EBH09
Product Details
BITUBO closed cartridge kit with springs, spring preload 15mm (15 turns) adjustable, one leg with rebound damping adjustable 24 clicks, one leg with compression damping damping adjustable 24 clicks; for KawasakiZX-10R, type ZXT00S (model year 2016-18)
ZX-10R, type ZXT02E (model year 2019-)
ZX-10RR, type ZXT00S (model year 2017-18)
ZX-10RR, type ZXT02E (model year 2019-20)
ZX-10RR, type ZXT02L (model year 2021-)
General Description
The EBH gas-pressurised closed cartridge features a range of innovative functionalities.Lightweight Components:
This product is manufactured using a large proportion of special light alloys, significantly reducing its weight.
The adjusters for the various setting options are located on the upper end caps:
The spring preload can be adjusted over 15 turns, while the rebound and compression damping damping have been split between the two cartridges, making adjustment simpler and easier.
The Goal:
To offer the rider maximum stability on the front wheel, achieved through perfect feedback from the front wheel, even under extreme stress on the brakes and in extreme lean angles. Due to direct hydraulic control, grip is increased when entering and exiting a corner, and more even tire wear is achieved.
Highest Level of Gliding Performance:
Each EBH cartridge kit is supplied with 1 liter of synthetic oil from the manufacturer FUCHS-Silkolene, guaranteeing minimal friction.
Features:
- Hydraulic piston with FPS system - made of aluminium
- with anti-friction coating
- Polyurethane end stop
- springs made of CRSi steel
- Co-axial compensation chamber
- Hydraulic oil & sliding grease separated
- compression damping 24 clicks
- Rebound 24 clicks
- spring preload 15 mm - 15 turns
- Two additional spare springs with different stiffness rates for various setups
| fork filter: | Cartridge |
|---|
Delivery Scope
- Cartridge with springs
- The package includes 2 additional spare springs with
different stiffness rates for various setups,
to achieve the best control at the highest
power, performance levels
- 1 liter oil
- Wrench for tightening the cartridge cap
- 2x Cartridge fixing wrench

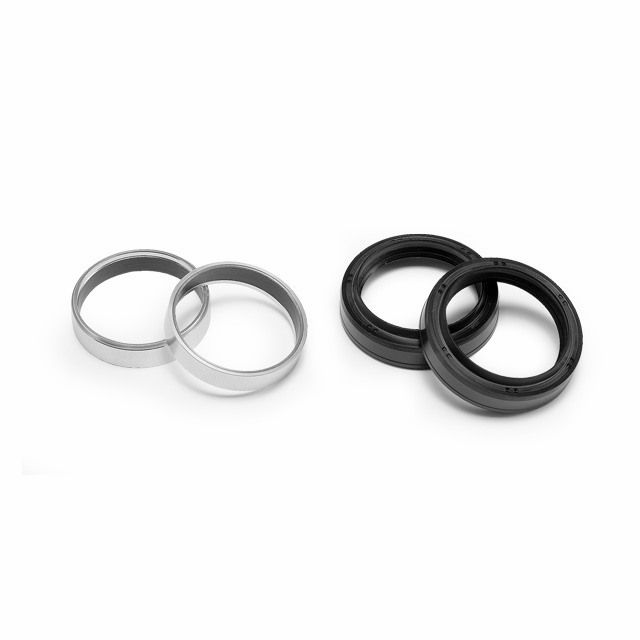

BI-KITS042
€246.45
| Manufacturer | Model | Type | Model Year | Variant/Version | Note | Position | ccm |
|---|---|---|---|---|---|---|---|
| Kawasaki | ZX10R Ninja | ZXT00S EURO4 | 2016 - 2018 | ZXT00SSA | with ABS | fronte | 1000 |
| Kawasaki | ZX10R Ninja | ZXT02E EURO4 | 2019 - | ZXT02EEA | fronte | 1000 | |
| Kawasaki | ZX10RR Ninja | ZXT00S EURO4 | 2017 - 2018 | fronte | 1000 | ||
| Kawasaki | ZX10RR Ninja | ZXT02E EURO4 | 2019 - 2020 | ZXT02EGA | fronte | 1000 | |
| Kawasaki | ZX10RR Ninja | ZXT02L EURO5 | 2021 - | 1000 | |||
| Kawasaki | ZX10RR Ninja | ZXT02L EURO5 | 2021 - | 1000 | |||
| Kawasaki | ZX10RR Ninja | ZXT02L EURO5 | 2021 - | 1000 |
