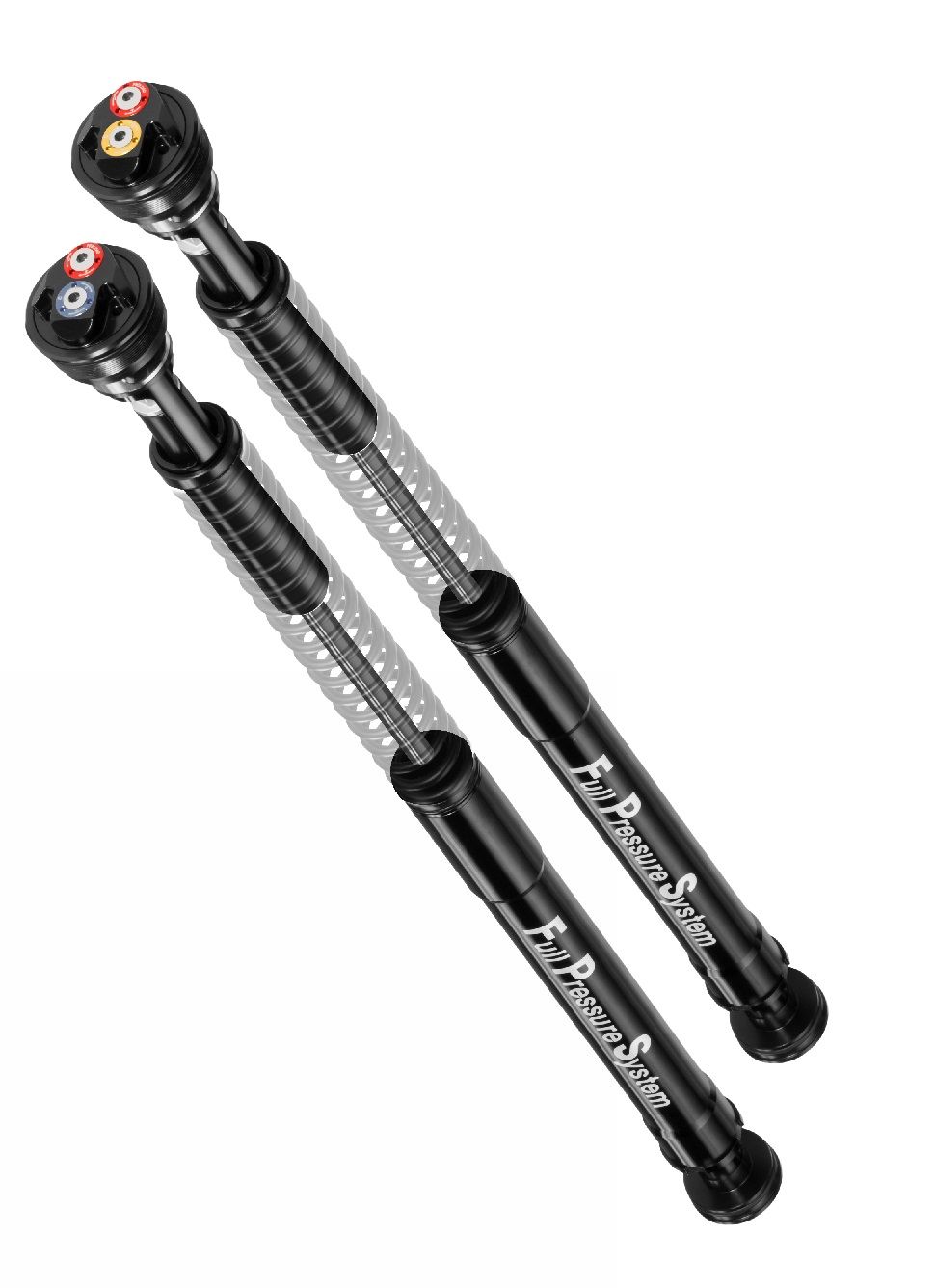

BITUBO Cartridge for Yamaha YZF-R1 2015-19 and MT-10 2016-20
€1,257.69 gross €1,323.88 RRP incl. VAT
Article number:
BI-Y0149-EBH50WO
Product Details
BITUBO closed Cartridge without spring, 16mm longer than original, spring preload 15mm (15 turns) adjustable, one leg with rebound damping 24 clicks adjustable, one leg with compression damping damping 24 clicks adjustable; for YamahaYZF-R1, Type RN32, model year 2015-16
YZF-R1, Type RN49, model year 2017-19
MT-10, Type RN45, model year 2016-20
General Description
The EBH gas-pressurised closed cartridge contains a range of innovative features.Light Components:
This product is manufactured with a large proportion of special light alloy, which significantly reduces weight.
The adjusters for the diverse setting options are located on the upper end caps:
The spring preload can be adjusted over 15 turns, while rebound and compression damping have been split between the two cartridges, making adjustment simpler and easier.
The Goal:
To offer the rider on the front wheel the greatest stability, achieved through the perfect feedback of the front wheel, even under the heaviest loads on the brake and at extreme lean angles. Due to direct hydraulic control, grip is increased when entering and exiting a corner, and more even tire wear is achieved.
Features:
- Hydraulic piston with FPS® system - made of aluminium
- with anti-stick coating
- polyurethane bump stop
- co-axial compensation chamber
- hydraulic oil & sliding grease separated
- compression damping 24 clicks
- Rebound 24 clicks
- spring preload 15 mm - 15 turns
- 16mm longer than original
| fork filter: | Cartridge |
|---|
| Manufacturer | Model | Type | Model Year | Variant/Version | Homologation | Position | ccm |
|---|---|---|---|---|---|---|---|
| Yamaha | MT10 | RN45 EURO4 | 2016 - 2020 | ABE in preparation | fronte | 1000 | |
| Yamaha | YZF-R1 | RN32 | 2015 - 2016 | RN321 | fronte | 1000 | |
| Yamaha | YZF-R1 | RN49 EURO4 | 2017 - 2019 | fronte | 1000 |
