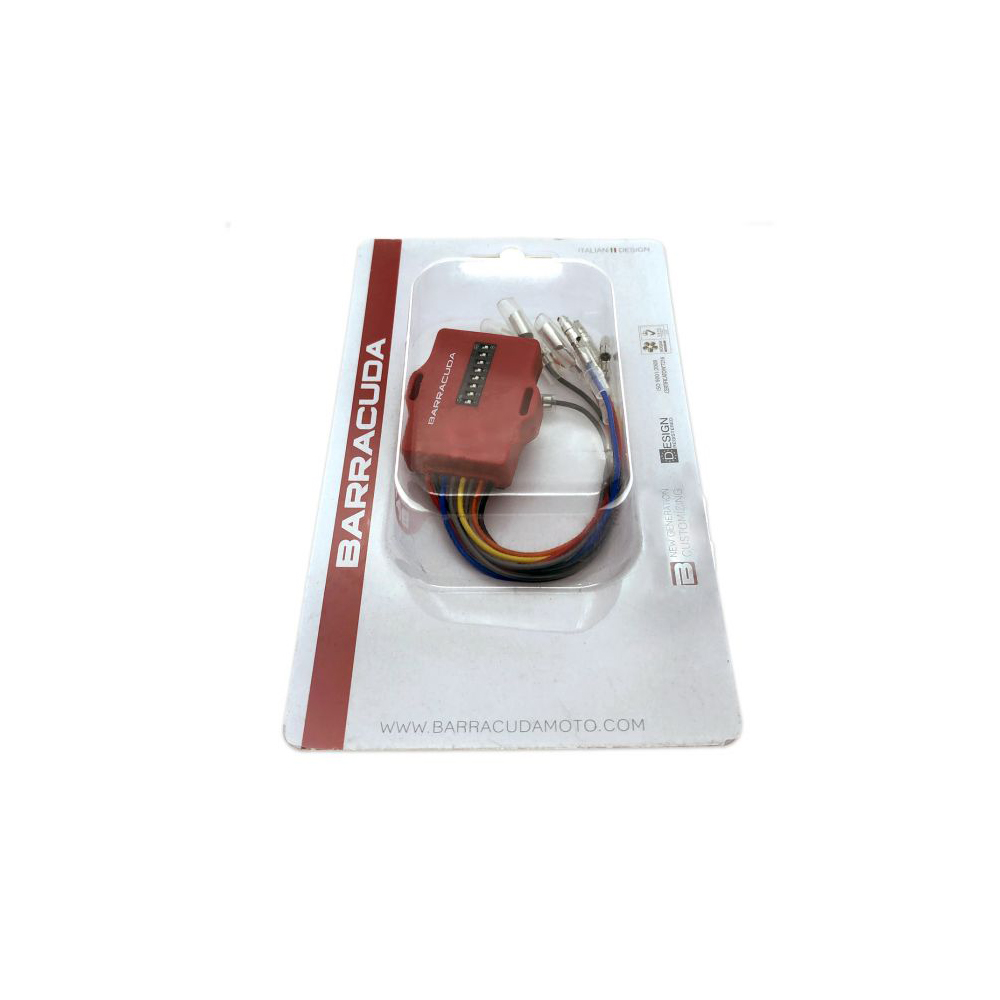

Barracuda Can-Bus relay
Product details
Barracuda Can-Bus relay, for controlling the flasher light, turn signal operation of Barracuda flasher light, turn signals on motorcycles with Can-Bus system-controlled flasher light, turn signals.General description
For vehicles equipped with a Can-Bus system, this Can-Bus relay is essential. It ensures that the LED flasher light, turn signals blink or function flawlessly and at the correct frequency. For this purpose, the Can-Bus relay is equipped with corresponding switches. It can also be used on vehicles that are factory-fitted with LED flasher light, turn signals. The relay can operate one pair of flasher light, turn signals, e.g.: the direction of travel indicators rear left side L/S and the direction of travel indicators rear right side R/S.The following resistance values can be set:
150 / 170 / 200 / 240 / 300 / 400 / 600 / 1200 Ohm
Cable length = 200 mm with 3 mm socket connector
Connections:
Yellow = input channel 1 (+)
Orange = output channel 1 (+)
Blue = input channel 2 (+)
Red = output channel 2 (+)
Grey = ground input (-)
Black = ground output (-)
Note: 1 Can-Bus relay is required for 1 pair of flasher light, turn signals
Further information: see installation instructions under 'Downloads'
