Wilbers shock absorber 643 Adjustline for Yamaha YZF-R1 1000 15-

Product Details

Wilbers Performance Suspension Adjustline 643 Competition P, mono-shock absorber, rear, rebound and compression damping as well as spring preload adjustable, pressure equalisation reservoir mounted horizontally (for direction of travel) and pivotable (before delivery or before fitting the shock absorber), for Yamaha YZF-R1 1000, type RN 23, model year 15-, fixed raised ride height + 15 mm, with ABE according to scope of application

General Description

Adjustline Ø 46 mm – the robust ones: Equipped with a 46 mm piston, they are able to withstand all impacts, are multi-adjustable and available in various versions. A strong alternative!

Adjustline 643 P Competition
The mounting for the pressure reservoir is made of solid aluminium and houses the adjustment units for high- and low-speed compression damping. Hydraulic blocking and impacts to the chassis are prevented by an overpressure valve. The shock absorber is fully adjustable in 22 clicks each for high-speed, low-speed and rebound. The spring preload can be continuously modified mechanically or even hydraulic. The best materials ensure long service life and reliability. Damping and spring are, as always, selected according to rider data!

Features:
- 22-way adjustable low-speed compression damping damping
- 22-way adjustable high-speed compression damping damping
- Continuous spring preload using the included hook wrench
- 22-way adjustable rebound damping

Additional Information and Notes:

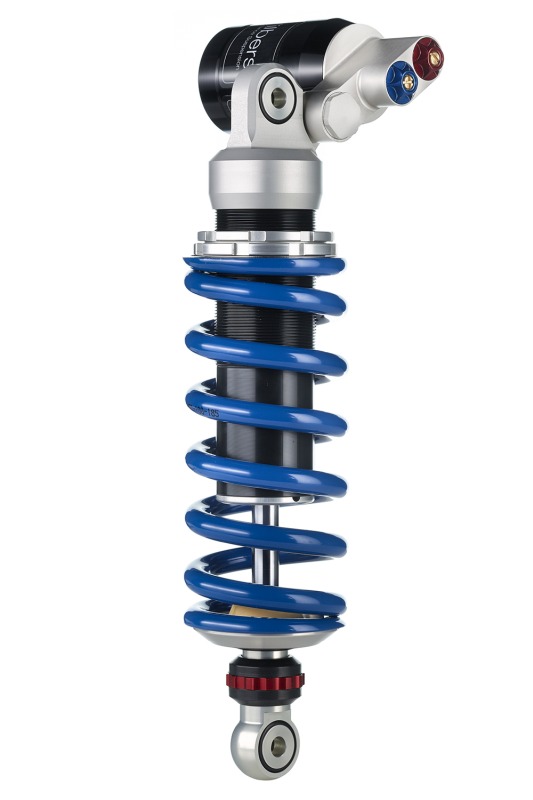

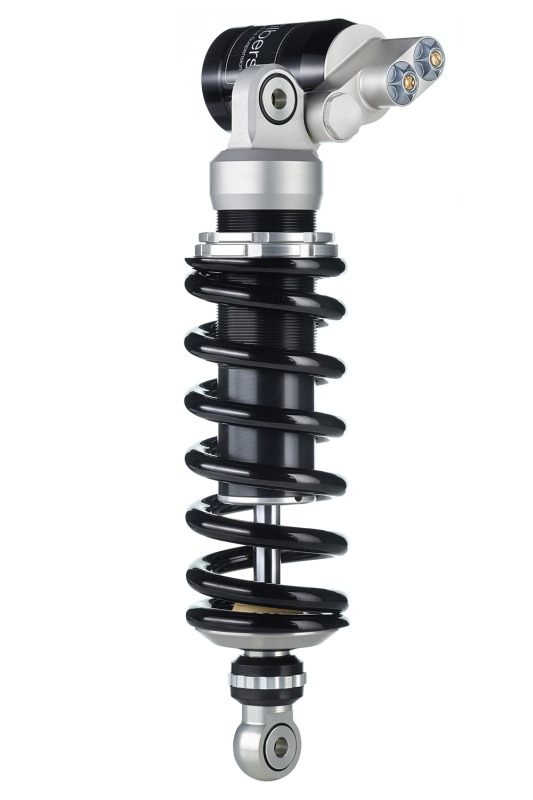

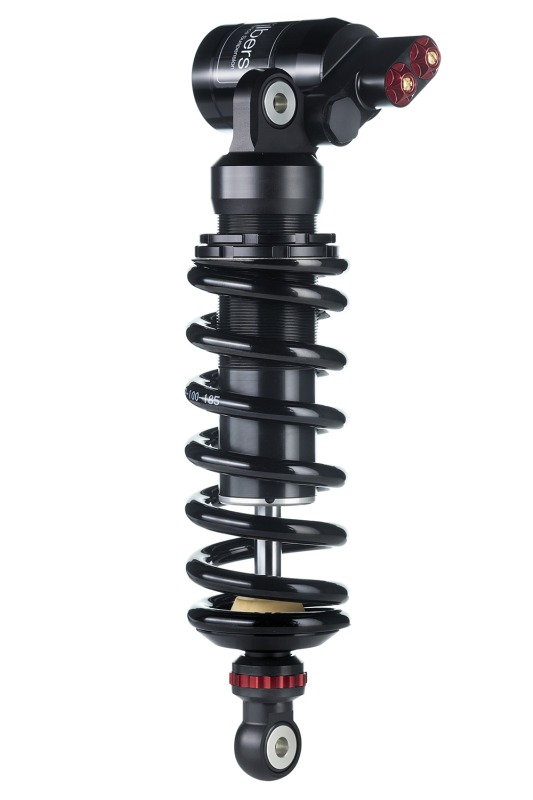

- In addition to the basic versions with black (Blackline) and blue (Blueline) spring, you can, for an extra charge, have the spring painted by us in all RAL colours. Furthermore, it is possible to order the shock absorber as Wilbers Nightline. In the Nightline version, the aluminium upper surfaces are anodised matt black, the spring is painted black, and the applications that serve the setting of the shock absorber are anodised red. For extra charge, see form (please specify colour during ordering process)
- Also available in various lengths for raising or lowering: please enquire about lengths
- Please also specify in the ordering process: rider weight including clothing in kg, pillion weight including clothing in kg, luggage weight in kg, frequency of solo operation without luggage in %, frequency of pillion operation in %, frequency of luggage operation in %, riding style (touring/sporty), intended use (race track/street/off-road)
