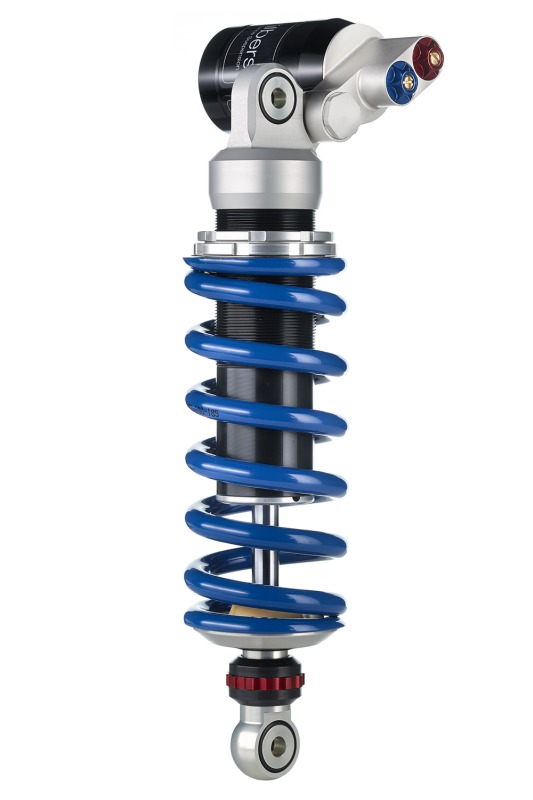

Wilbers shock absorber 643 Adjustline for Yamaha YZF-R1 1000 07-08

Product details

Wilbers Performance Suspension Adjustline 643 Competition P, mono rear, adjustable rebound and compression damping damping, as well as spring preload, with horizontally mounted (for direction of travel) and pivotable piggyback reservoir (before delivery or before installation of the shock absorber), for Yamaha YZF-R1 1000, type RN 19, model year 07-08, with ABE according to scope of use;
For a 30mm lowering, the corresponding fork spring kit is required.

General description

Adjustline Ø 46 mm – the robust ones: Equipped with a 46 mm piston, they can handle all impacts, are multi-adjustable and available in various versions. A strong alternative!

Adjustline 643 P Competition
The mounting for the pressure reservoir is made of solid aluminium and houses the adjustment units for high-speed and low-speed compression damping. Hydraulic blocking and impacts on the chassis are prevented by an overpressure valve. The shock absorber is fully adjustable with 22 clicks each for high-speed, low-speed, and rebound damping. The spring preload can be continuously modified mechanically or even hydraulic. The best materials ensure long service life and reliability. Damping and spring are, as always, selected according to rider data!

Features:
- 22-way adjustable low-speed compression damping damping
- 22-way adjustable high-speed compression damping damping
- Stepless spring preload using the included hook wrench
- 22-way adjustable rebound damping

Additional information and notes:

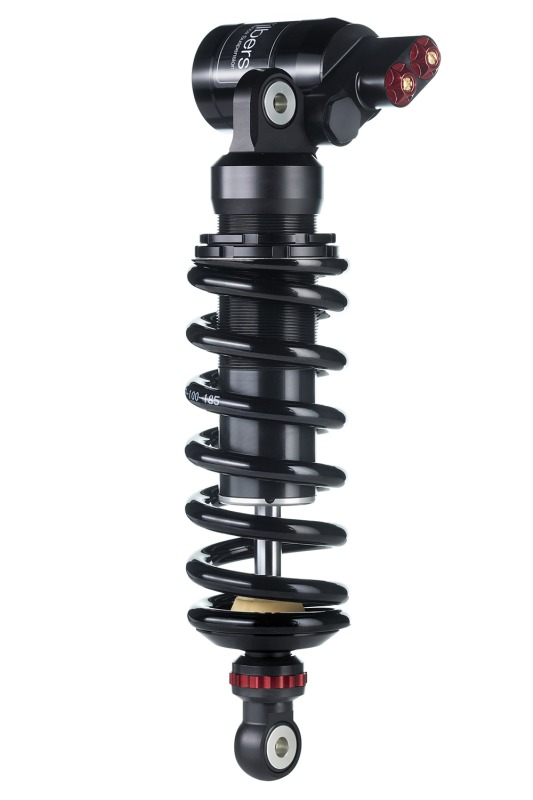

- In addition to the basic versions with black (Blackline) and blue (Blueline) spring, you can have the spring painted by us in all RAL colours, for an extra charge. Furthermore, it is possible to order the shock absorber as Wilbers Nightline. The aluminium upper surfaces are matte black anodised in the Nightline, the spring is painted black, and applications serving the setting of the shock absorber are red anodised. For extra charge, see form (please specify colour during the ordering process)
- Also available in various lengths for raising or lowering: please inquire about lengths
- Please also specify during the ordering process: rider weight including clothing in kg, pillion weight including clothing in kg, luggage weight in kg, frequency of solo operation without luggage in %, frequency of pillion operation in %, frequency of luggage operation in %, riding style (touring/sporty), intended use (race track/street/off-road)
