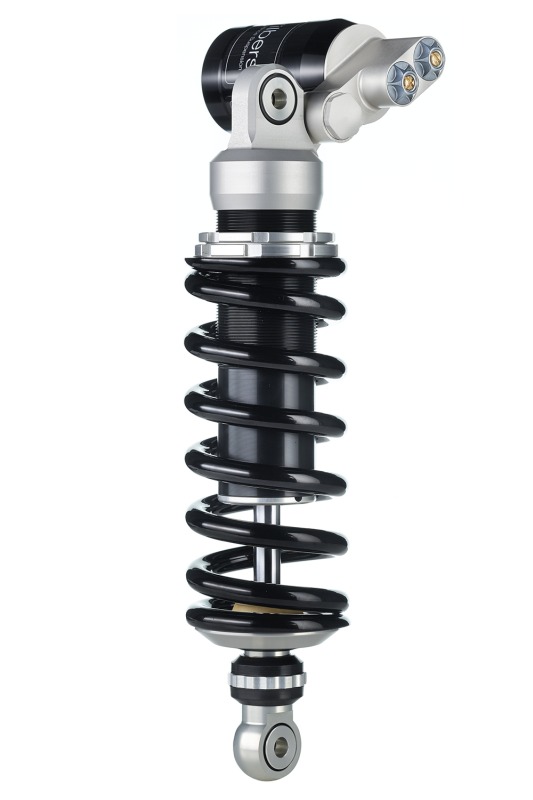

Wilbers shock absorber 643 Adjustline for Yamaha MT-10 16-

Product details

Wilbers Performance Suspension Adjustline 643 Competition P, mono-shock absorber rear, rebound and compression damping as well as spring preload adjustable, expansion reservoir mounted transversally (for direction of travel) and pivotable (before delivery or before shock absorber installation), for Yamaha MT-10, Type RN 45, model year 16-, Fixed raising +15 mm, with ABE according to scope of application

General description

Adjustline Ø 46 mm – the robust ones: Equipped with a 46 mm piston, they can withstand all impacts, are multi-adjustable, and available in various versions. A strong alternative!

Adjustline 643 P Competition
The mounting for the pressure reservoir is made of solid aluminium and houses the adjustment units for high- and low-speed compression damping. Hydraulic locking and impacts to the chassis are prevented by an overpressure valve. The shock absorber is fully adjustable with 22 clicks each for high-speed, low-speed, and rebound. The spring preload can be infinitely adjusted mechanically or even hydraulic. The best materials ensure a long service life and reliability. Damping and spring are, as always, selected based on rider data!

Features:
- 22-way adjustable low-speed compression damping damping
- 22-way adjustable high-speed compression damping damping
- Stepless spring preload using the included hook wrench
- 22-way adjustable rebound damping

Additional information and notes:

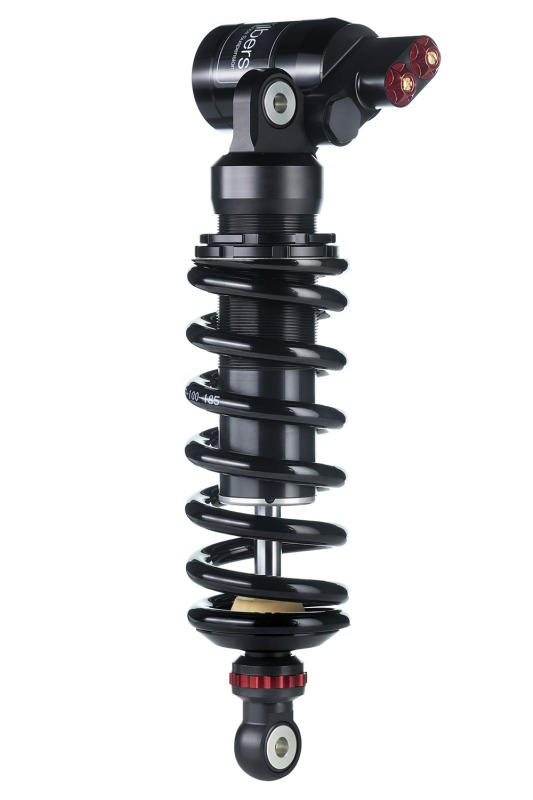

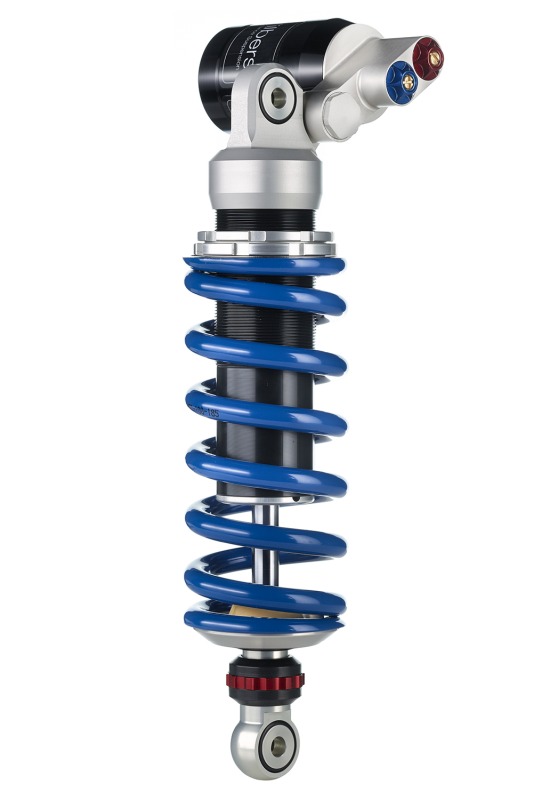

- In addition to the standard versions with black (Blackline) and blue (Blueline) spring, you can, for an extra charge, have the spring painted by us in all RAL colours. Furthermore, it is possible to order the shock absorber as Wilbers Nightline. The aluminium upper surfaces in the Nightline are matt black anodised, the spring is black painted, and applications serving the setting of the shock absorber are red anodised. For extra charge, see form (please specify colour during the order process)
- Also available in various lengths for raising or lowering: please enquire about lengths
- Please also specify during the order process: rider weight including clothing in kg, pillion weight including clothing in kg, luggage weight in kg, frequency of solo operation without luggage in %, frequency of pillion operation in %, frequency of luggage operation in %, riding style (touring/sporty), intended use (racetrack/street/off-road)
