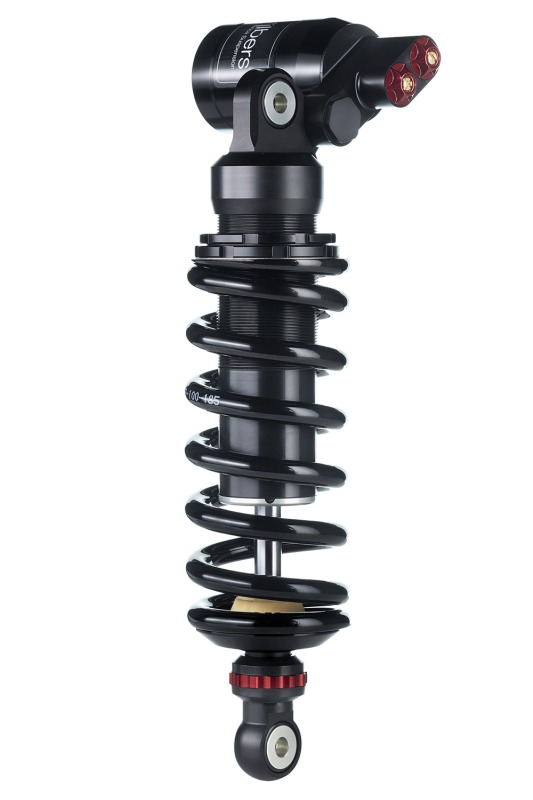

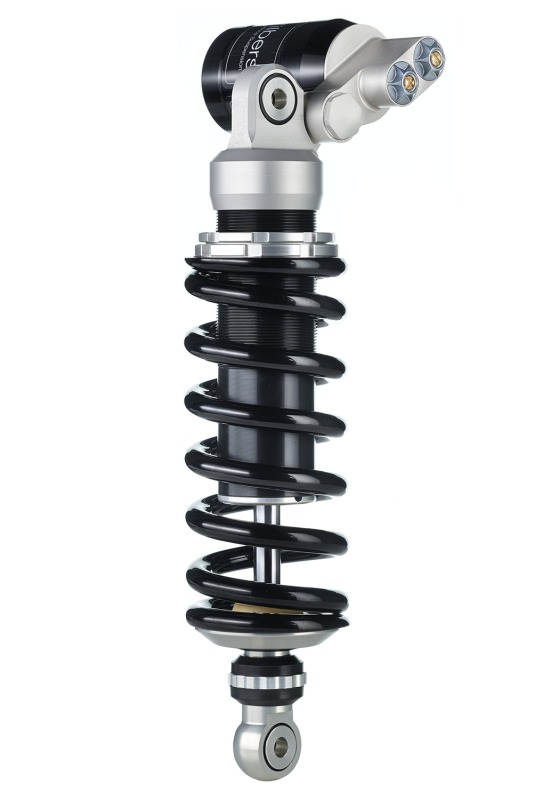

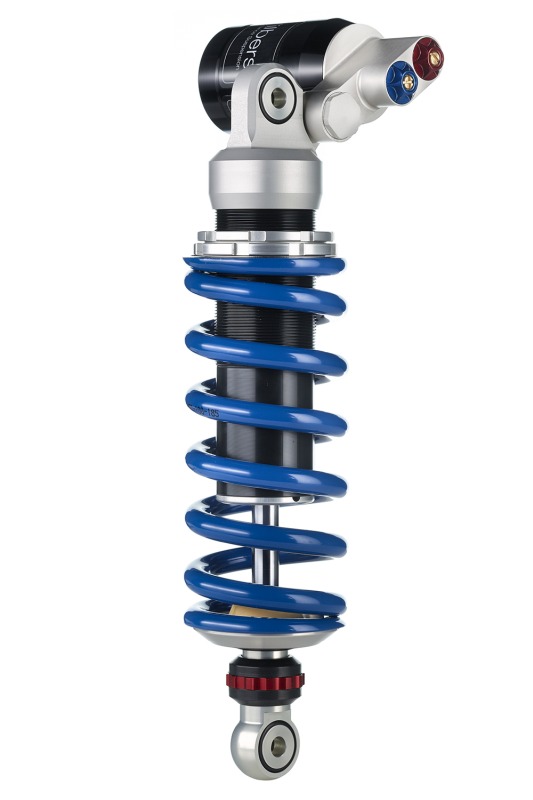

Wilbers shock absorber 643 Adjustline for Yamaha MT-10 16-

Product details

Wilbers Performance Suspension Adjustline 643 Competition P, mono shock absorber rear, with adjustable rebound and compression damping as well as spring preload, external reservoir mounted transversely (for direction of travel) and pivotable (before delivery or before mounting the shock absorber), for Yamaha MT-10, Type RN 45, model year 16-, with ABE (General Operating Permit) according to application area.

General description

Adjustline Ø 46 mm – the robust ones: Equipped with a 46 mm piston, they can withstand all impacts, are multi-adjustable and available in various versions. A strong alternative!

Adjustline 643 P Competition
The mounting for the external reservoir is made of solid aluminium and houses the adjustment units for high- and low-speed compression damping. Hydraulic locking and impacts to the chassis are prevented by an overpressure valve. The shock absorber is fully adjustable with 22 clicks each for high-speed, low-speed, and rebound damping. The spring preload can be continuously adjusted mechanically or even hydraulic. Best materials ensure a long service life and reliability. Damping and spring are, as always, chosen according to rider data!

Features:
- 22-way adjustable low-speed compression dampingndämpfung
- 22-way adjustable high-speed compression dampingndämpfung
- Continuous spring preload via the included hook wrench
- 22-way adjustable rebound damping

Additional information and notes:
- In addition to the basic versions with black (Blackline) and blue (Blueline) spring, you can, for an extra charge, have the spring painted by us in all RAL colours. Furthermore, it is possible to order the shock absorber as Wilbers Nightline. In the Nightline version, the aluminium upper surfaces are matt black anodised, the spring is painted black, and applications that serve the setting of the shock absorber are red anodised. For extra charge, see form (please specify colour during the order process)
- Also available in different lengths for raising or lowering: please enquire about lengths
- During the order process, please also specify: rider weight including clothing in kg, pillion weight including clothing in kg, luggage weight in kg, frequency of solo riding without luggage in %, frequency of pillion riding in %, frequency of riding with luggage in %, riding style (touring/sporty), intended use (racetrack/street/off-road)
