Wilbers shock absorber 643 Adjustline for Suzuki GSX-R 750 11-

Product details

Wilbers Performance Suspension Adjustline 643 Competition P, mono-rear, rebound and compression damping as well as spring preload adjustable, horizontally mounted (for direction of travel) and pivotable (before delivery or before installation of the shock absorber) expansion tank, for Suzuki GSX-R 750, Type C 4, model year 11-, with ABE according to application range.

General description

Adjustline Ø 46 mm – the robust ones: Equipped with a 46 mm piston, they can withstand all impacts, are multi-adjustable and available in various versions. A strong alternative!

Adjustline 643 P Competition
The mounting for the pressure reservoir is made of solid aluminium and houses the adjustment units for high- and low-speed compression damping. Hydraulic blocking and shocks to the chassis are prevented by an overpressure valve. The shock absorber is fully adjustable with 22 clicks each for high-speed, low-speed, and rebound. The spring preload can be continuously modified mechanically or even hydraulic. Best materials ensure long service life and reliability. Damping and spring are, as always, selected according to rider data!

Features:
- 22-way adjustable low-speed compression damping damping
- 22-way adjustable high-speed compression damping damping
- Stepless spring preload using the supplied hook wrench
- 22-way adjustable rebound damping

Additional information and notes:

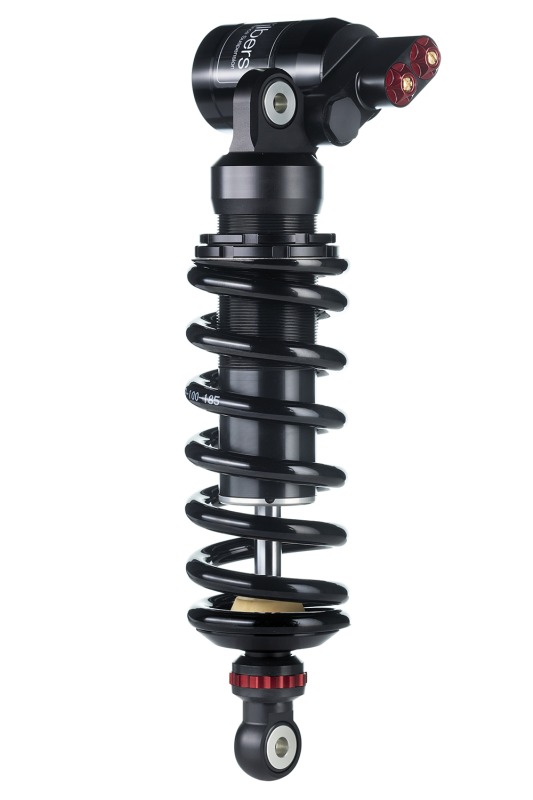

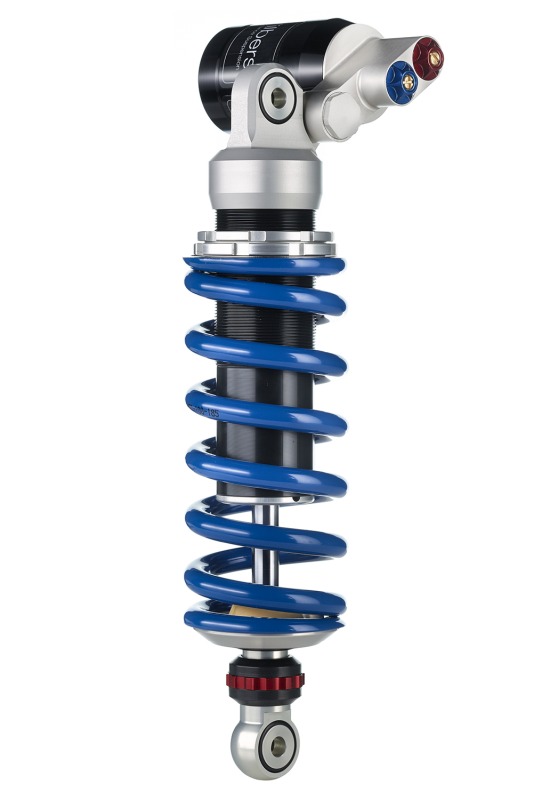

- In addition to the basic versions with black (Blackline) and blue (Blueline) spring, you can have the spring painted by us in all RAL colours, at an extra charge. Furthermore, it is possible to order the shock absorber as Wilbers Nightline. The aluminium upper surfaces in the Nightline are anodised matt black, the spring is painted black, and applications serving the setting of the shock absorber are anodised red. For extra charge, see form (please specify colour during order process)
- Also available in various lengths for raising or lowering: Please enquire about lengths
- Please also specify in the order process: rider weight including clothing in kg, pillion weight including clothing in kg, luggage weight in kg, frequency of solo operation without luggage in %, frequency of pillion operation in %, frequency of luggage operation in %, riding style (touring/sporty), purpose of use (racetrack/street/off-road)
