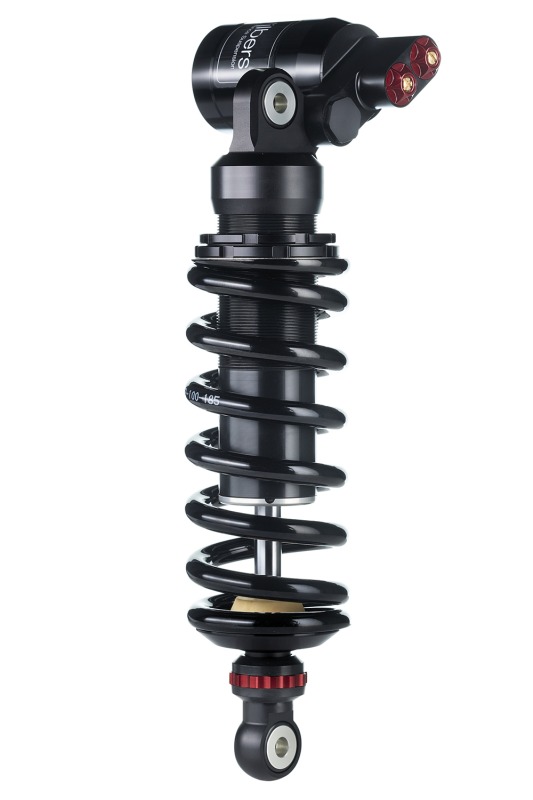

Wilbers shock absorber 643 Adjustline for Suzuki GSX-R 1000 Road 05-

Product details

Wilbers Performance Suspension Adjustline 643 Competition P, mono-shock rear, rebound and compression damping as well as spring preload adjustable, external reservoir mounted horizontally (for direction of travel) and pivotable (before delivery or before mounting the shock absorber), for Suzuki GSX-R 1000 Road, type WVB 6, model year 05-, with ABE according to scope of use

General description

Adjustline Ø 46 mm – the robust ones: Equipped with a 46 mm piston, they are built to withstand all impacts, are multi-adjustable, and available in various versions. A strong alternative!

Adjustline 643 P Competition
The mounting for the reservoir is made of solid aluminium and houses the adjustment units for high- and low-speed compression damping. Hydraulic blocking and impacts to the chassis are prevented by an overpressure valve. The shock absorber is fully adjustable with 22 clicks each for high-speed, low-speed, and rebound. The spring preload can be continuously adjusted mechanically or even hydraulic. The best materials ensure long service life and reliability. Damping and spring are, as always, selected based on rider data!

Features:
- 22-way adjustable low-speed compression damping damping
- 22-way adjustable high-speed compression damping damping
- Stepless spring preload via supplied hook wrench
- 22-way adjustable rebound damping

Additional information and notes:

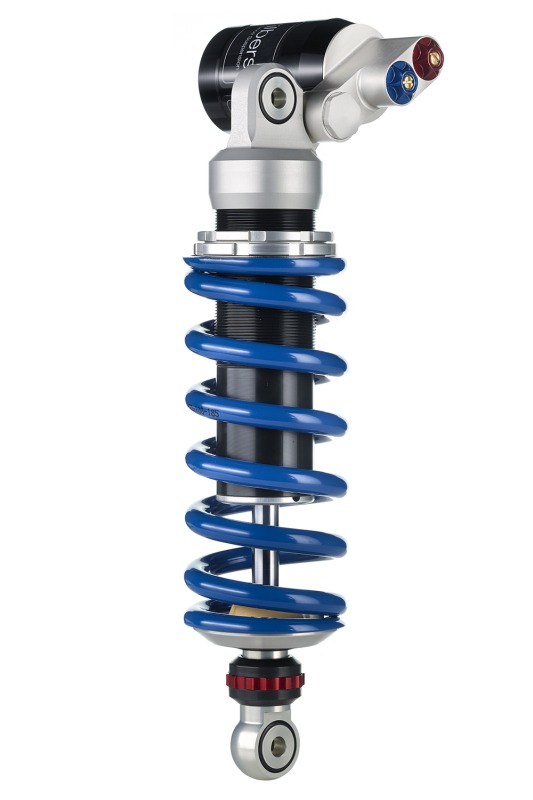

- In addition to the basic versions with black (Blackline) and blue (Blueline) spring, you can, for an extra charge, have the spring painted by us in all RAL colours. Furthermore, it is possible to order the shock absorber as Wilbers Nightline. In the Nightline version, the aluminium upper surfaces are matt black anodised, the spring is painted black, and the applications, which serve the setting of the shock absorber, are red anodised. For surcharge, see form (please specify colour during the ordering process)
- Also available in different lengths for raising or lowering: please enquire about lengths
- Please also specify during the ordering process: rider weight including clothing in kg, pillion weight including clothing in kg, luggage weight in kg, frequency of solo operation without luggage in %, frequency of pillion operation in %, frequency of luggage operation in %, riding style (touring/sporty), purpose of use (racetrack/street/off-road)
