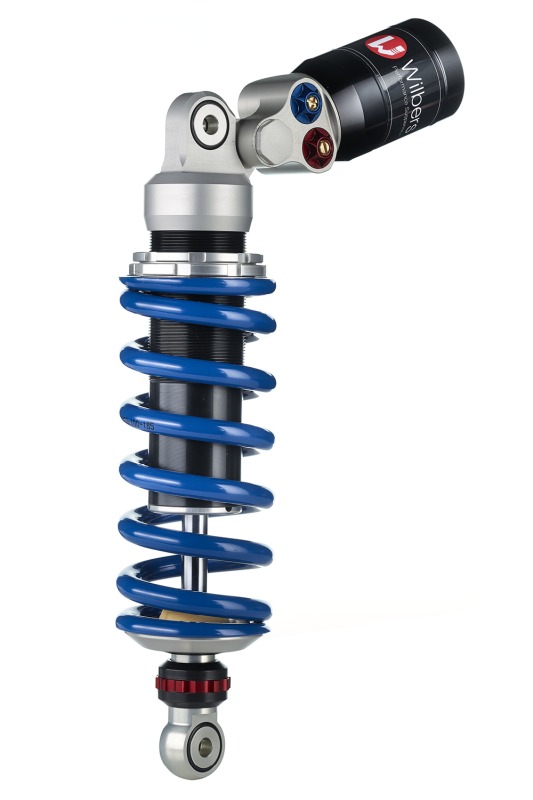

Wilbers shock absorber 643 Adjustline for KTM 390 RC 14-

Product Details

Wilbers Performance Suspension Adjustline 643 Competition P, mono-shock absorber rear, adjustable in rebound, compression damping and spring preload, pressure equalisation reservoir mounted horizontally (towards the direction of travel) and pivotable (before delivery or before mounting the shock absorber), for KTM 390 RC, Type KTM IS RC, model year 14-, with ABE according to scope of application.

General Description

Adjustline Ø 46 mm – the robust ones: Equipped with a 46 mm piston, they can withstand all impacts, are multi-adjustable and available in various designs. A strong alternative!

Adjustline 643 P Competition
The mounting for the pressure reservoir is made of solid aluminium and houses the adjustment units for high and low-speed compression damping. Hydraulic blocking and impacts to the chassis are prevented by an overpressure valve. The shock absorber is completely adjustable with 22 clicks each for high-speed, low-speed, and rebound. The spring preload can be continuously modified mechanically or even hydraulic. Best materials ensure long service life and reliability. Damping and spring are, as always, selected according to rider data!

Features:
- 22-way adjustable low-speed compression damping damping
- 22-way adjustable high-speed compression damping damping
- Continuous spring preload using the included hook wrench
- 22-way adjustable rebound damping

Additional information and notes:
- In addition to the basic versions with black (Blackline) and blue (Blueline) spring, you can, for an extra charge, have the spring painted by us in all RAL colours. Furthermore, it is possible to order the shock absorber as Wilbers Nightline. The aluminium upper surfaces are anodised matt black in the Nightline, the spring is painted black, and applications that serve the setting of the shock absorber are anodised red. For surcharge, see form (please specify colour during the order process)
- Also available in different lengths for raising or lowering: Please enquire about lengths
- During the order process, please also state: rider weight incl. clothing in kg, pillion weight incl. clothing in kg, luggage weight in kg, frequency of solo riding without luggage in %, frequency of pillion riding in %, frequency of riding with luggage in %, riding style (touring/sporty), intended use (race track/street/off-road)
