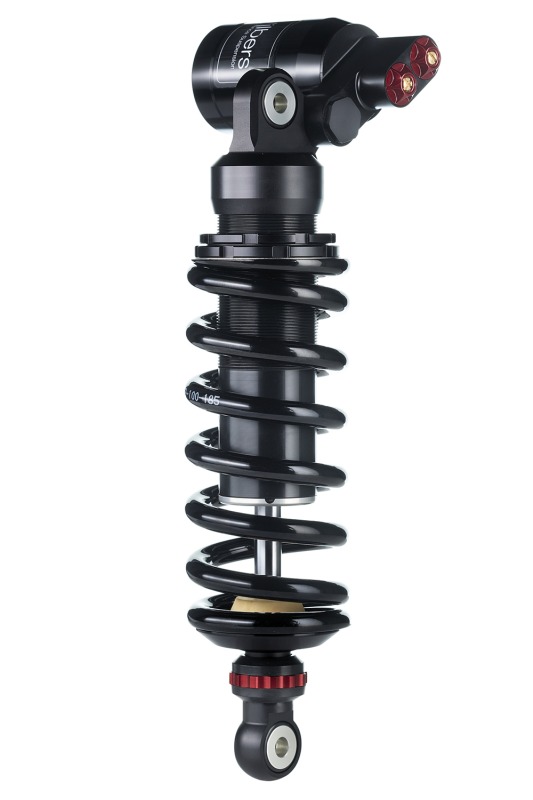

Wilbers shock absorber 643 Adjustline for Kawasaki ZX-10R Ninja 08-

Product details

Wilbers Performance Suspension Adjustline 643 Competition P, mono-rear, rebound and compression damping damping, as well as spring preload adjustable, piggyback reservoir horizontally mounted (to the direction of travel) and pivotable (before delivery or before mounting the shock absorber), for Kawasaki ZX-10R Ninja, type ZXT 00 E, model year 08-, with ABE according to application area;
For a lowering of 40 mm, the corresponding fork is necessary.

General description

Adjustline Ø 46 mm – the robust ones: Equipped with a 46 mm piston, they are able to withstand all impacts, multi-adjustable and available in various versions. A strong alternative!

Adjustline 643 P Competition
The mounting for the pressure reservoir is made of solid aluminium and houses the adjustment units for high- and low-speed compression damping damping. Hydraulic blocking and impacts to the chassis are prevented by a pressure relief valve. The shock absorber is fully adjustable with 22 clicks each for high-speed, low-speed, and rebound damping. The spring preload can be continuously modified mechanically or even hydraulic. Best materials ensure a long service life and reliability. Damping and spring are, as always, selected according to rider data!

Features:
- 22-way adjustable low-speed compression damping damping
- 22-way adjustable high-speed compression damping damping
- Stepless spring preload using the supplied hook wrench
- 22-way adjustable rebound damping

Additional information and notes:

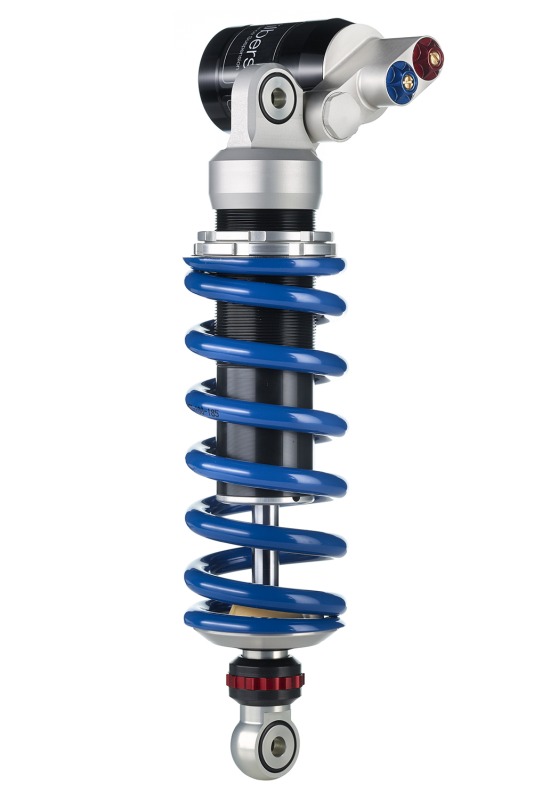

- Besides the basic versions with black (Blackline) and blue (Blueline) spring, you can, for an extra charge, have the spring painted by us in all RAL colours. Furthermore, it is possible to order the shock absorber as Wilbers Nightline. The aluminium upper are matt black anodised in the Nightline, the spring is painted black and applications serving the setting of the shock absorber are red anodised. For surcharge see form (please specify colour in the order process)
- Also available in different lengths for raising or lowering: please enquire about lengths
- Please also specify in the order process: rider weight including clothing in kg, pillion weight including clothing in kg, luggage weight in kg, frequency of solo operation without luggage in %, frequency of pillion operation in %, frequency of luggage operation in %, riding style (touring/sporty), intended use (racetrack/street/off-road)
