Wilbers shock absorber 643 Adjustline for BMW R 1100 S 98-05

Product details

Wilbers Performance Suspension Adjustline 643 Competition P, mono-shock absorber rear, rebound and compression damping damping as well as spring preload adjustable, pivotable expansion reservoir fitted (before delivery or before fitting the shock absorber), for BMW R 1100 S, Type R 2 S / R 11 S, model year 98-05, with ABE according to application range

General description

Adjustline Ø 46 mm – the robust ones: Equipped with a 46 mm piston, they can handle all impacts, are multi-adjustable and available in various versions. A strong alternative!

Adjustline 643 P Competition
The mounting for the pressure reservoir is made of solid aluminium and houses the adjustment units for high and low-speed compression damping damping. Hydraulic blocking and impacts to the chassis are prevented by an overpressure valve. The shock absorber is fully adjustable with 22 clicks each for high-speed, low-speed, and rebound. The spring preload can be continuously modified mechanically or even hydraulic. Best materials ensure long service life and reliability. Damping and spring are, as always, selected based on rider data!

Features:
- 22-way adjustable low-speed compression damping damping
- 22-way adjustable high-speed compression damping damping
- Continuous spring preload via the supplied hook wrench
- 22-way adjustable rebound damping

Additional information and notes:

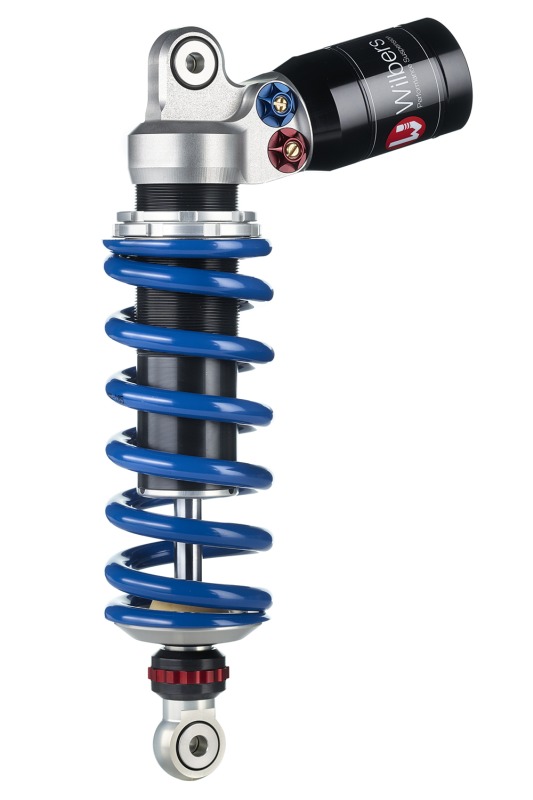

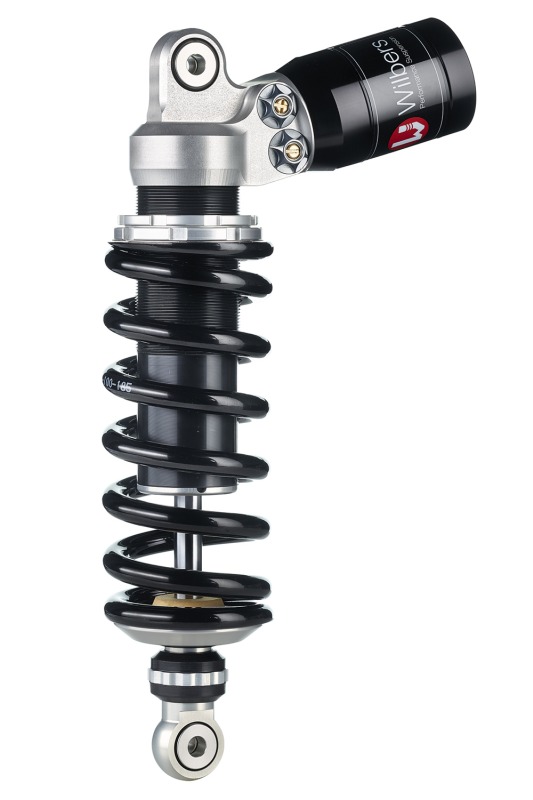

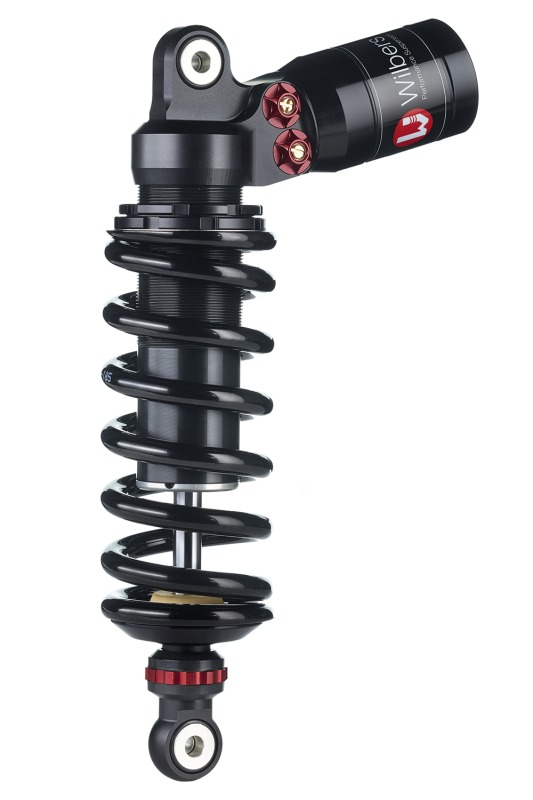

- In addition to the basic versions with black (Blackline) and blue (Blueline) spring, you can, for an extra charge, have the spring painted by us in all RAL colours. Furthermore, it is possible to order the shock absorber as Wilbers Nightline. In the Nightline version, the aluminium upper surfaces are matt black anodised, the spring is painted black, and applications serving the setting of the shock absorber are red anodised. For extra charge, see form (please specify colour during the order process)
- Also available in various lengths for raising or lowering: please enquire about lengths
- Please also specify during the order process: rider weight including clothing in kg, pillion weight including clothing in kg, luggage weight in kg, frequency of solo operation without luggage in %, frequency of pillion operation in %, frequency of luggage operation in %, riding style (touring/sporty), intended use (race track/street/off-road)
