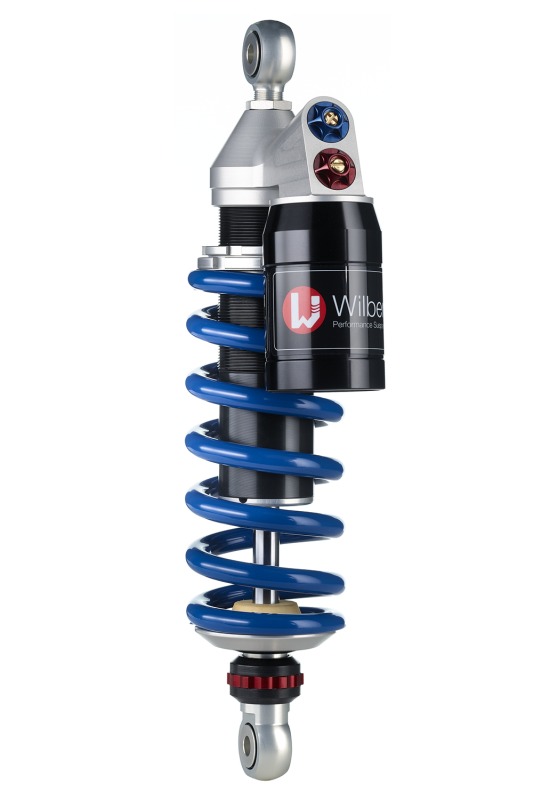

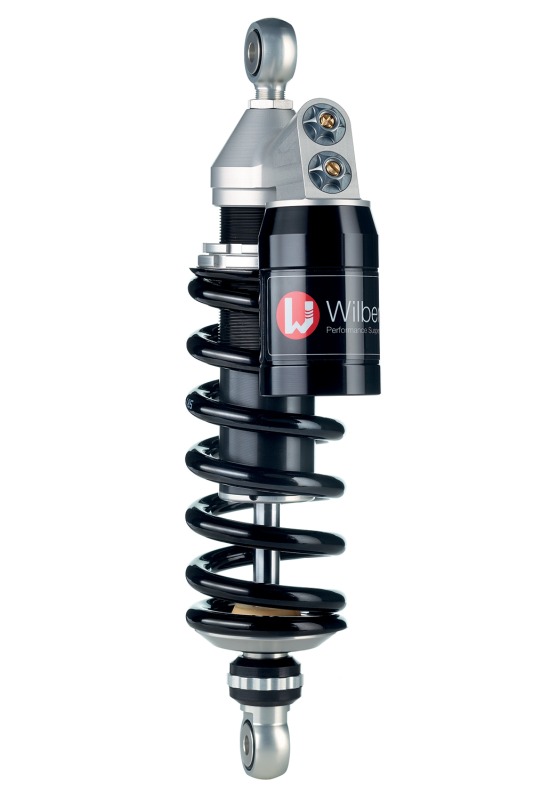

Wilbers shock absorber 642 Adjustline for Suzuki DR 650 SE 96-

Product details

Wilbers Performance Suspension Adjustline 642 Competition, mono-shock absorber rear, rebound and compression damping as well as spring preload adjustable, pressure reservoir with milled part mounted on the shock absorber, for Suzuki DR 650 SE, type SP 46 B, model year 96-, with ABE according to scope of application.

General Description

Adjustline Ø 46 mm – the robust ones: Equipped with a 46 mm piston, they can withstand all impacts, are multi-adjustable and available in various designs. A strong alternative!

Adjustline 642
The ultimate in motorcycle-shock absorbers! The upper mounting consists of a milled part. It serves as a connection to the balance tank of the compression damping and houses the adjustment knobs for the low and high-speed range of the compression damping. 22 stages per range allow for optimal fine adjustment! At maximum compression speeds, an overpressure valve prevents the shock absorber hydraulic from blocking and uncontrolled shocks from being introduced into the chassis. Rebound damping can be adjusted externally in 22 clicks. The spring base can be continuously preloaded.

Features:
- 22-way adjustable low-speed compression damping damping
- 22-way adjustable high-speed compression damping damping
- Stepless spring preload using the supplied hook wrench
- 22-way adjustable rebound damping

Additional information and notes:

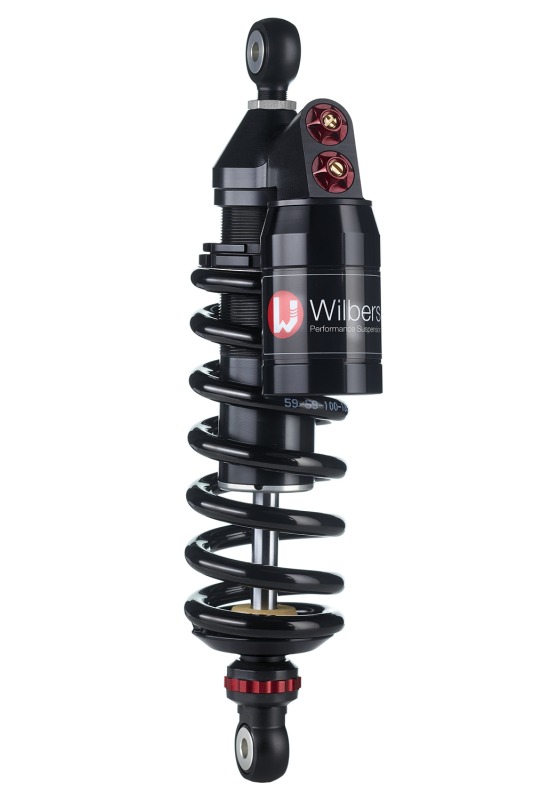

- In addition to the basic versions with black (Blackline) and blue (Blueline) spring, you can have the spring painted by us in all RAL colours, for an extra charge. Furthermore, it is possible to order the shock absorber as Wilbers Nightline. The aluminium upper surfaces are matt black anodised in the Nightline, the spring is painted black, and applications that serve the setting of the shock absorber are red anodised. For surcharge, see form (please specify colour in the order process)
- Also available in various lengths for raising or lowering: please inquire about lengths
- Please also specify in the order process: rider weight including clothing in kg, pillion weight including clothing in kg, luggage weight in kg, frequency of solo operation without luggage in %, frequency of pillion operation in %, frequency of luggage operation in %, riding style (touring/sporty), purpose of use (race track/street/off-road)
