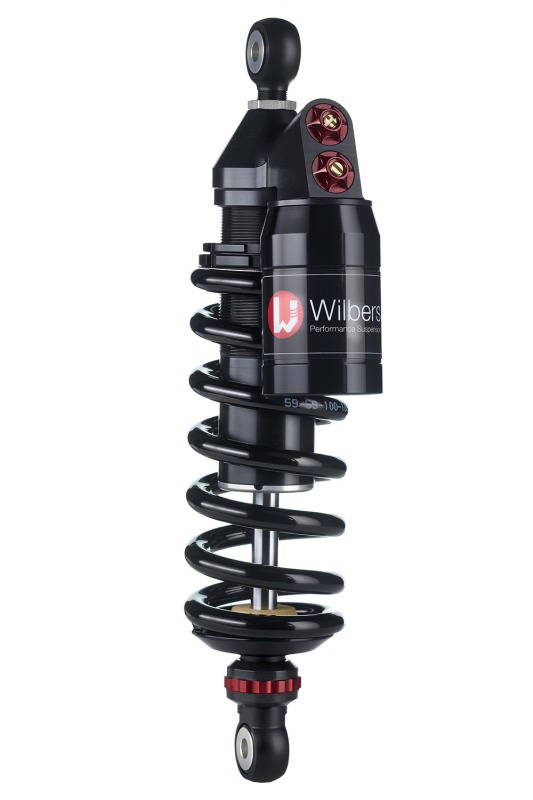

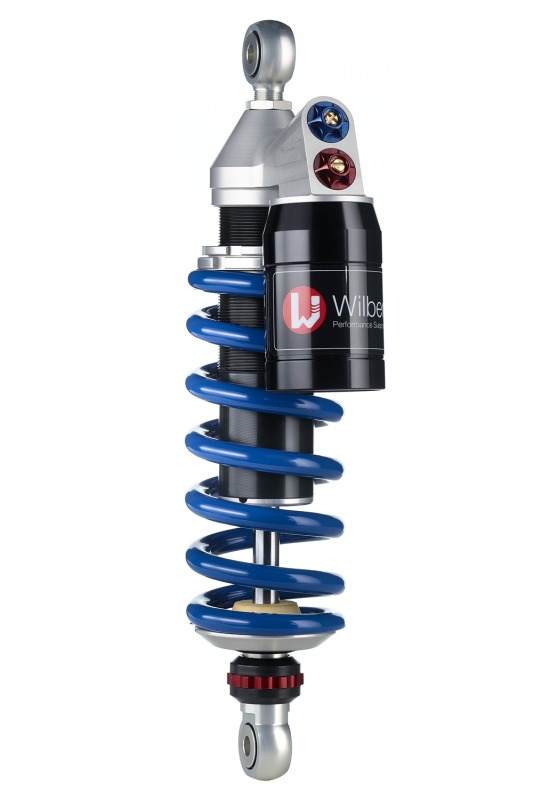

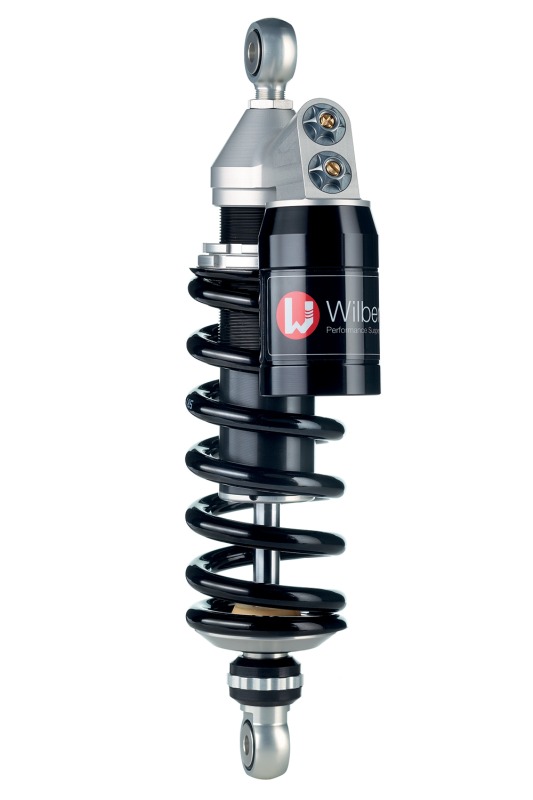

Wilbers shock absorber 642 Adjustline for KTM 990 Super Duke R 07-13

Product details

Wilbers Performance Suspension Adjustline 642 Competition, mono-shock absorber rear, rebound and compression damping as well as spring preload adjustable, piggyback reservoir with milled part mounted on the shock absorber, for KTM 990 Super Duke R, type KTM LC 8 EFI, model year 07-13, with ABE according to scope of application;
For a lowering of 50mm, the corresponding reducing sleeve are necessary; the original fork springs can be retained.

General description

Adjustline Ø 46 mm – the robust ones: Equipped with a 46 mm piston, they are capable of handling all impacts, multi-adjustable and available in various designs. A strong alternative!

Adjustline 642
The ultimate in motorcycle-shock absorbers! The upper mounting consists of a milled part. It serves as a connection to the balance tank of the compression damping and houses the adjustment knobs for the low and high-speed range of the compression damping. 22 clicks per range allow for optimal fine adjustment! At maximum compression speeds, an overpressure valve prevents the shock absorber from blocking hydraulic and uncontrolled shocks from being transferred into the chassis. The rebound can be externally adjusted in 22 clicks. The spring base can be infinitely preloaded.

Features:
- 22-way adjustable low-speed compression damping damping
- 22-way adjustable high-speed compression damping damping
- Infinitely variable spring preload using the supplied hook wrench
- 22-way adjustable rebound damping

Additional information and notes:
- In addition to the basic versions with black (Blackline) and blue (Blueline) spring, you can have the spring painted by us in all RAL colours, at an additional cost. Furthermore, it is possible to order the shock absorber as Wilbers Nightline. The aluminium upper surfaces are matt black anodised in the Nightline, the spring is painted black, and applications serving the setting of the shock absorber are red anodised. For additional costs, see form (please specify colour in the order process)
- Also available in various lengths for raising or lowering: please enquire about lengths
- Please also specify in the order process: rider weight including clothing in kg, pillion weight including clothing in kg, luggage weight in kg, frequency of solo operation without luggage in %, frequency of pillion operation in %, frequency of luggage operation in %, riding style (touring/sporty), intended use (racetrack/street/off-road)
