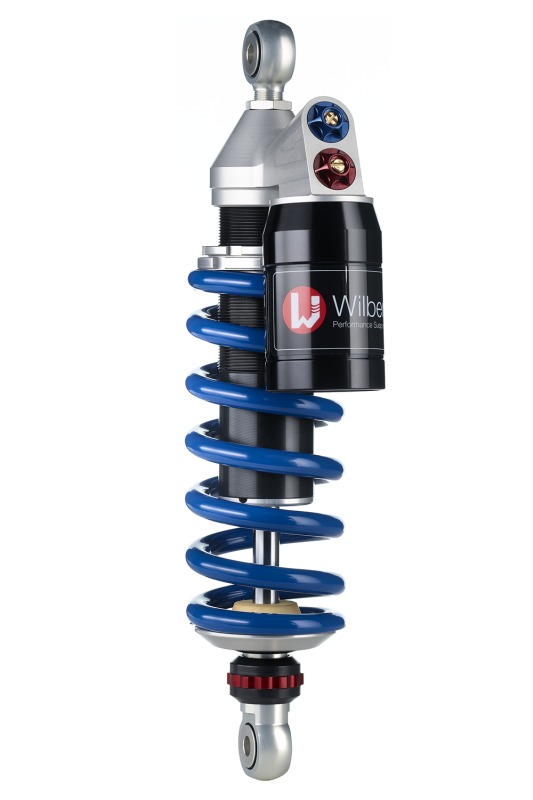

Wilbers shock absorber 642 Adjustline for KTM 990 SM-T / SM-R 09-13

Product details

Wilbers Performance Suspension Adjustline 642 Competition, mono-shock absorber rear, rebound and compression damping as well as spring preload adjustable, piggyback reservoir with milled part mounted on the shock absorber, for KTM 990 SM-T / SM-R, type KTM LC 8 SM, model year 09-13, with ABE according to scope of application;
For a lowering of 60mm, the corresponding fork spring kit is necessary.

General description

Adjustline Ø 46 mm – the robust ones: Equipped with a 46 mm piston, they can withstand all impacts, are multi-adjustable and available in various versions. A strong alternative!

Adjustline 642
The ultimate in motorcycle-shock absorbers! The upper mounting consists of a milled part. It serves as a connection to the balance tank of the compression damping and houses the adjustment knobs for the low and high-speed range of the compression damping. 22 clicks per range allow for optimal fine adjustment! At maximum compression speeds, an overpressure valve prevents the shock absorber hydraulic from blocking and uncontrolled impacts from being transmitted to the chassis. Rebound damping can be adjusted externally in 22 clicks. The spring base can be continuously preloaded.

Features:
- 22-way adjustable low-speed compression damping damping
- 22-way adjustable high-speed compression damping damping
- Continuous spring preload using the supplied hook wrench
- 22-way adjustable rebound damping

Additional information and notes:

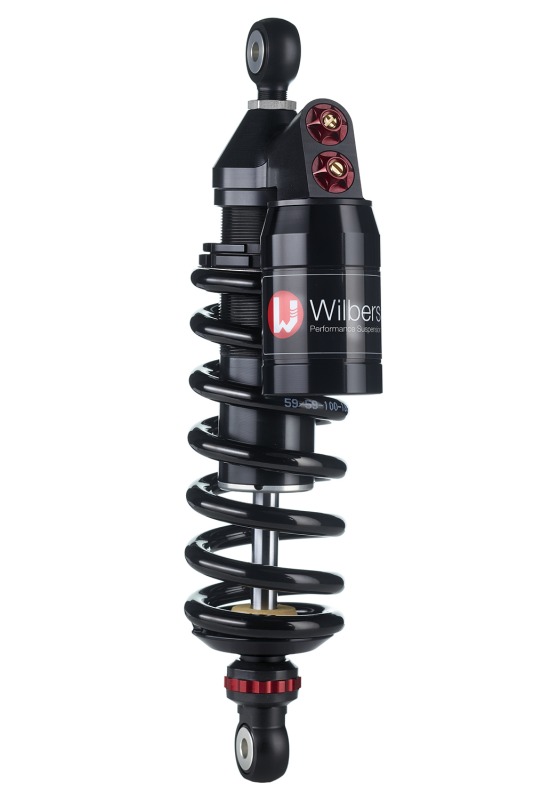

- In addition to the standard versions with black (Blackline) and blue (Blueline) spring, you can have the spring painted by us in all RAL colours, for an additional charge. Furthermore, it is possible to order the shock absorber as Wilbers Nightline. The aluminium upper surfaces are anodised matte black in the Nightline, the spring is painted black, and applications serving the setting of the shock absorber are anodised red. For surcharge, see form (please specify colour during order process)
- Also available in various lengths for raising or lowering: please enquire about lengths
- Please also specify in the order process: rider weight incl. clothing in kg, pillion weight incl. clothing in kg, luggage weight in kg, frequency of solo riding without luggage in %, frequency of pillion riding in %, frequency of riding with luggage in %, riding style (touring/sporty), intended use (racetrack/street/off-road)
