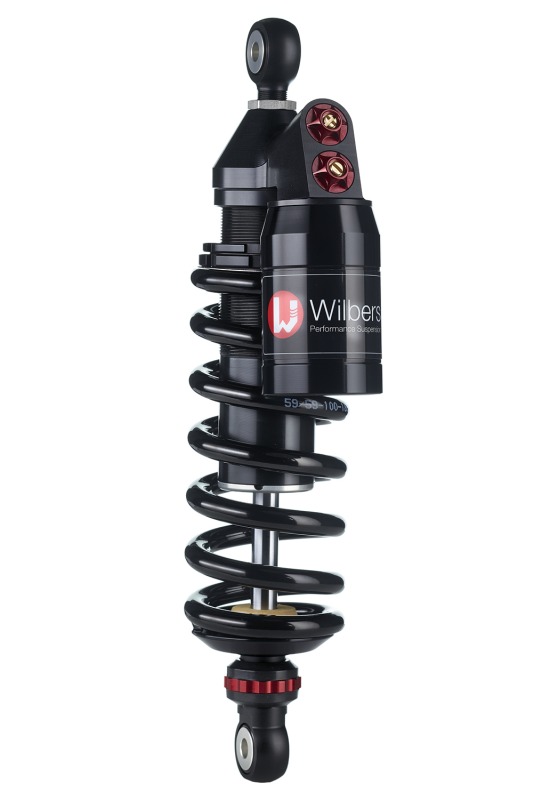

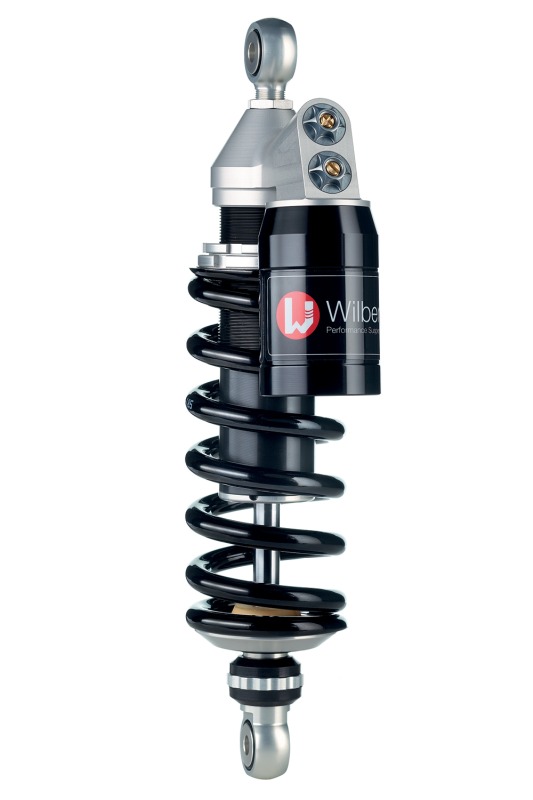

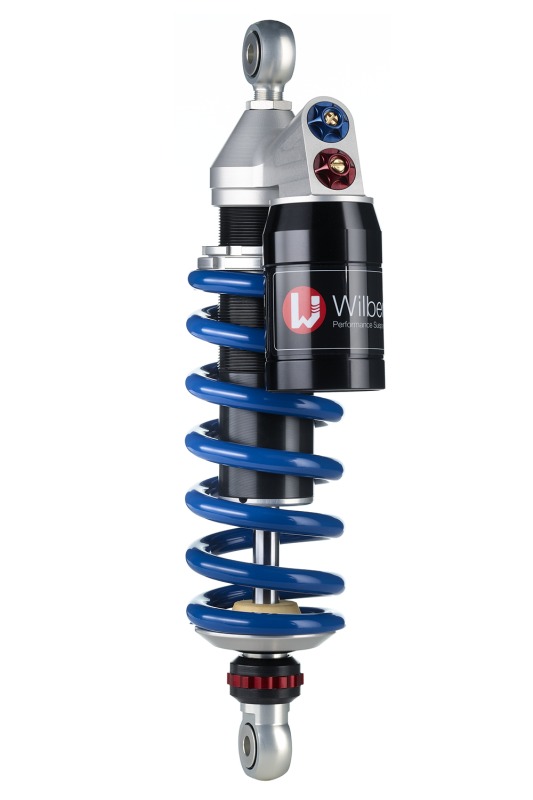

Wilbers shock absorber 642 Adjustline for KTM 950 Adventure 05-06

Product Details

Wilbers Performance Suspension Adjustline 642 Competition, mono-shock absorber rear, rebound and compression damping as well as spring preload adjustable, piggyback reservoir with milled part mounted on the shock absorber, for KTM 950 Adventure, type KTM LC 8, model year 05-06, with ABE according to scope of use;
For a lowering of 60mm, the correspondinge fork spring kit is necessary.

General Description

Adjustline Ø 46 mm – the robust ones: Equipped with a 46 mm piston, they can withstand all impacts, are multi-adjustable, and available in various designs. A strong alternative!

Adjustline 642
The ultimate in motorcycle-shock absorbers! The uppere mounting consists of a milled part. It serves as a connection to the balance tank of the compression damping and houses the adjustment knobs for the low and high-speed range of the compression damping. 22 steps per range allow for optimal fine adjustment! At maximum compression speeds, an overpressure valve prevents the shock absorber from hydraulic blocking and uncontrolled impacts from being transmitted to the chassis. The rebound can be adjusted externally in 22 clicks. The spring preload can be continuously adjusted.

Features:
- 22-way adjustable low-speed compression damping damping
- 22-way adjustable high-speed compression damping damping
- Continuous spring preload via the supplied hook wrenchs
- 22-way adjustable rebound damping

Additional Information and Notes:
- In addition to the basic versions with black (Blackline) and blue (Blueline) spring, you can have the spring painted by us in all RAL colours, at an extra cost. Furthermore, it is possible to order the shock absorber as Wilbers Nightline. In the Nightline, the aluminium upper surfaces are matt black anodised, the spring is painted black, and applications serving the setting of the shock absorber are red anodised. For extra cost, see form (please specify colour during the ordering process)
- Also available in different lengths for raising or lowering: please enquire about lengths
- During the ordering process, please also specify: rider weight including clothing in kg, pillion weight including clothing in kg, luggage weight in kg, frequency of solo operation without luggage in %, frequency of pillion operation in %, frequency of luggage operation in %, riding style (touring/sporty), intended use (race track/street/off-road)
