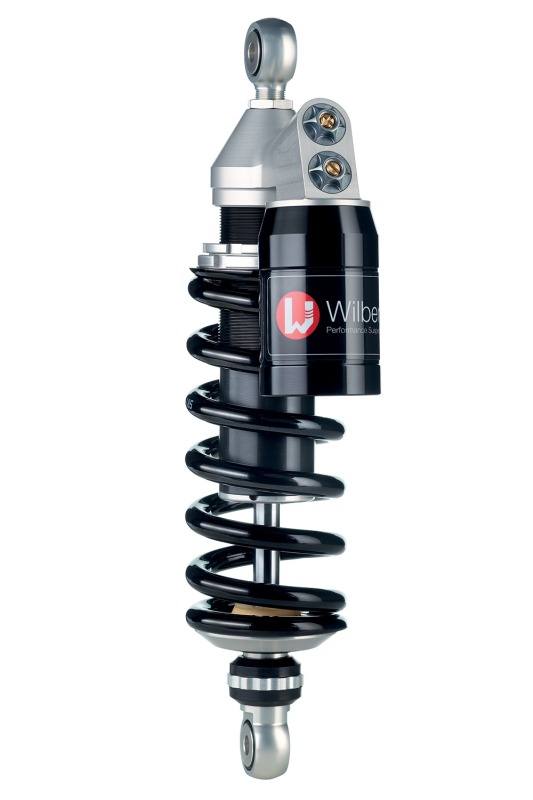

Wilbers shock absorber 642 Adjustline for KTM 950 Adventure 02-04

Product details

Wilbers Performance Suspension Adjustline 642 Competition, monoshock rear, rebound and compression damping as well as spring preload adjustable, piggyback reservoir with milled part mounted on the shock absorber, for KTM 950 Adventure, Type KTM LC 8, model year 02-04, with ABE according to scope of application;
For a lowering of 55mm, the corresponding fork spring kit is necessary.

General description

Adjustline Ø 46 mm – the robust ones: Equipped with a 46 mm piston, they are capable of handling all impacts, highly adjustable and available in various versions. A strong alternative!

Adjustline 642
The ultimate in motorcycle-shock absorbers! The upper mounting consists of a milled part. It serves as a connection to the balance tank of the compression damping and houses the adjustment knobs for the low and high-speed range of the compression damping. 22 clicks per range allow for optimal fine adjustment! At maximum compression speeds, an overpressure valve prevents the shock absorber hydraulic from blocking and uncontrolled impacts from being transmitted into the chassis. The rebound can be adjusted externally in 22 clicks. The spring base can be continuously preloaded.

Features:
- 22-way adjustable low-speed compression damping damping
- 22-way adjustable high-speed compression damping damping
- Continuous spring preload via the supplied hook wrench
- 22-way adjustable rebound damping

Additional information and notes:

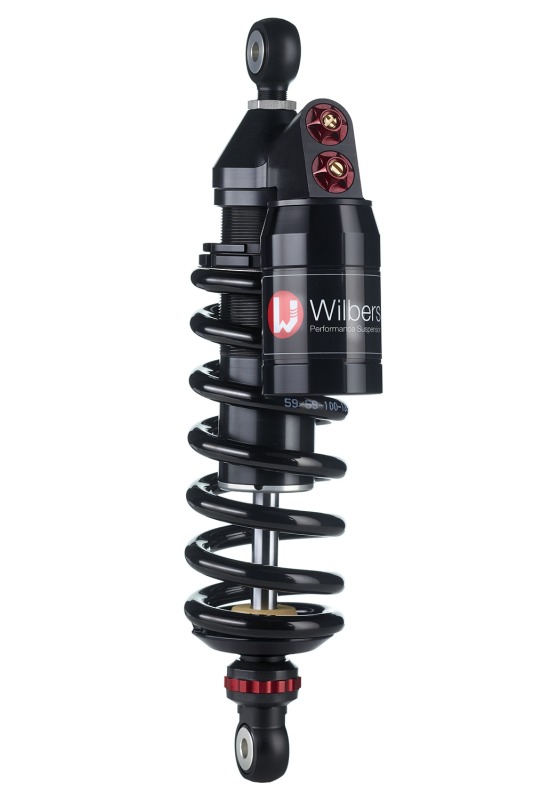

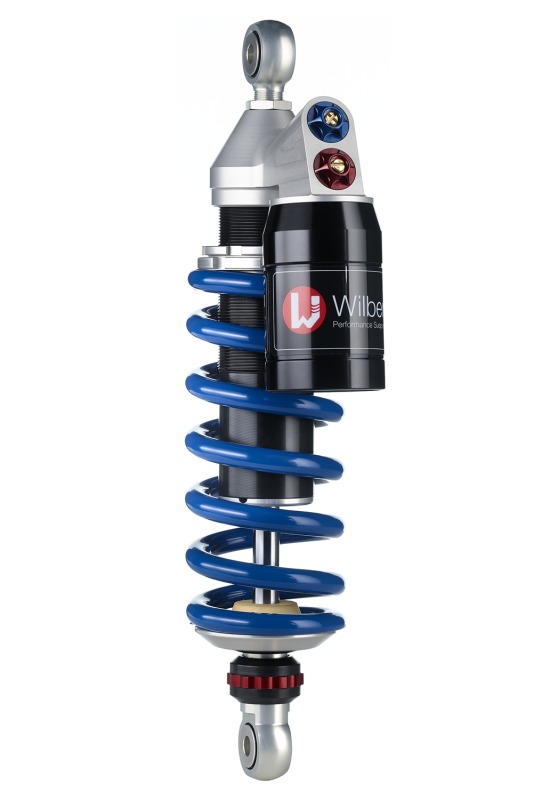

- In addition to the basic versions with black (Blackline) and blue (Blueline) spring, you can have the spring painted by us in all RAL colours, at an additional cost. Furthermore, it is possible to order the shock absorber as Wilbers Nightline. The aluminium upper surfaces in the Nightline are matt black anodised, the spring is black painted, and applications serving the setting of the shock absorber are red anodised. For an additional charge, see form (please specify colour in the order process)
- Also available in various lengths for raising or lowering: please enquire about lengths
- In the order process, please also specify: rider weight including clothing in kg, pillion weight including clothing in kg, luggage weight in kg, frequency of solo operation without luggage in %, frequency of pillion operation in %, frequency of luggage operation in %, riding style (touring/sporty), intended use (racetrack/street/off-road)
