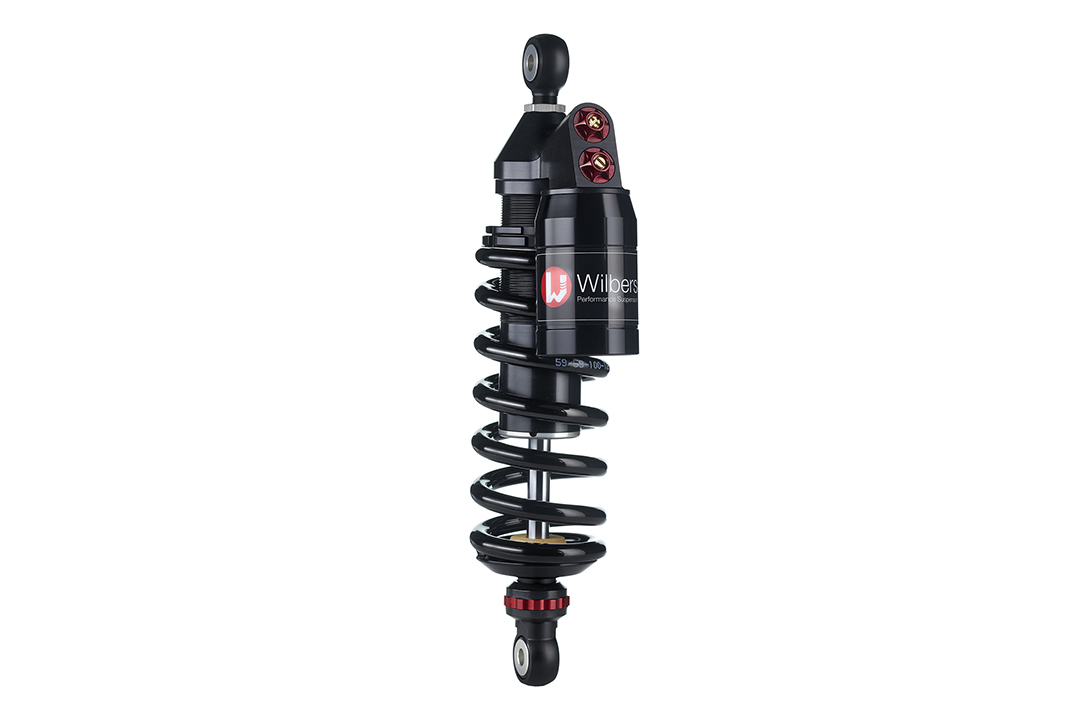

Wilbers shock absorber 642 Adjustline for KTM 640 Adventure 2001-07

Product Details

Wilbers Performance Suspension Adjustline 642 Competition, mono-shock rear, rebound and compression damping as well as spring preload adjustable, piggyback reservoir with machined part mounted on the shock absorber, with ABE according to scope of application.
For KTM 640 Adventure, Type KTM 4T-EGS, model year 2001-07

General Description

Adjustline Ø 46 mm – the robust ones: Equipped with a 46 mm piston, they are able to withstand all impacts, are multi-adjustable and available in various versions. A strong alternative!

Adjustline 642
The ultimate in motorcycle-shock absorbers! The upper mounting consists of a machined part. It serves as a connection to the balance tank of the compression damping and houses the adjustment knobs for the low- and high-speed range of the compression damping. 22 clicks per range allow for optimal fine adjustment! At maximum compression speeds, a pressure relief valve prevents the shock absorber hydraulic from blocking and uncontrolled impacts from being transmitted to the chassis. The rebound damping can be adjusted externally in 22 clicks. The spring base can be continuously preloaded.

Features:
- 22-way adjustable low-speed compression damping damping
- 22-way adjustable high-speed compression damping damping
- Continuous spring preload via the supplied hook wrench
- 22-way adjustable rebound damping

Additional Information and Notes:

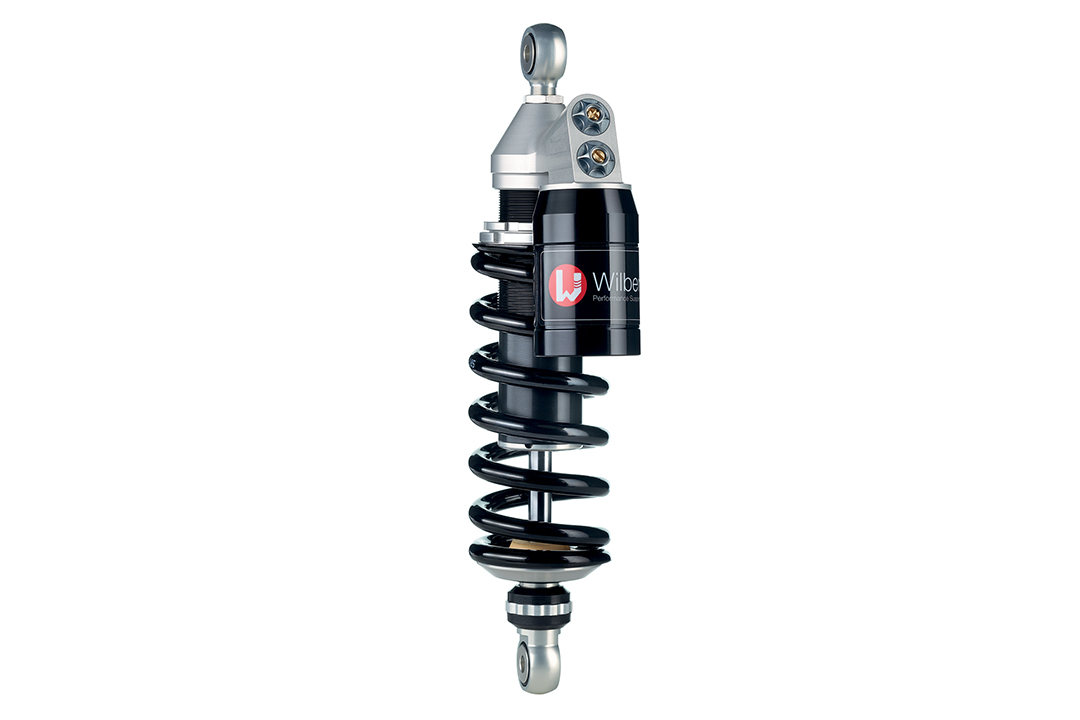

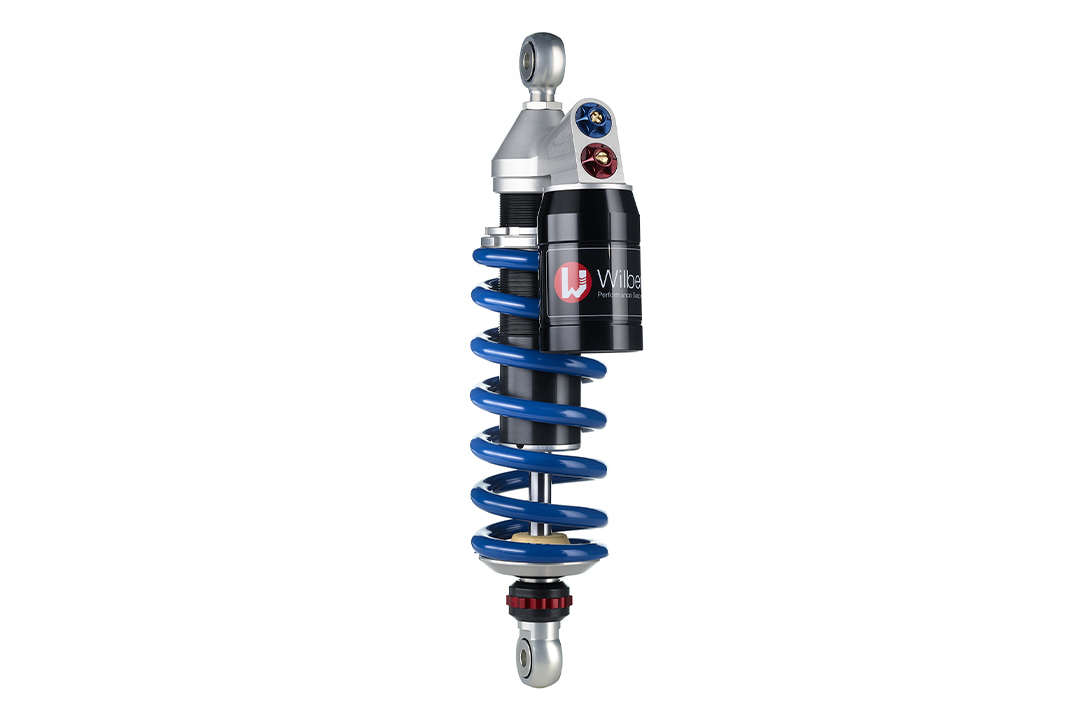

- In addition to the basic versions with black (Blackline) and blue (Blueline) spring, you can have the spring painted by us in all RAL colours for an extra charge (please specify colour during the ordering process)
- Also available in different lengths for raising or lowering: please enquire about lengths
- Please also specify during the ordering process: rider weight including clothing in kg, pillion weight including clothing in kg, luggage weight in kg, frequency of solo operation without luggage in %, frequency of pillion operation in %, frequency of luggage operation in %, riding style (touring/sporty), intended use (racetrack/street/off-road)
