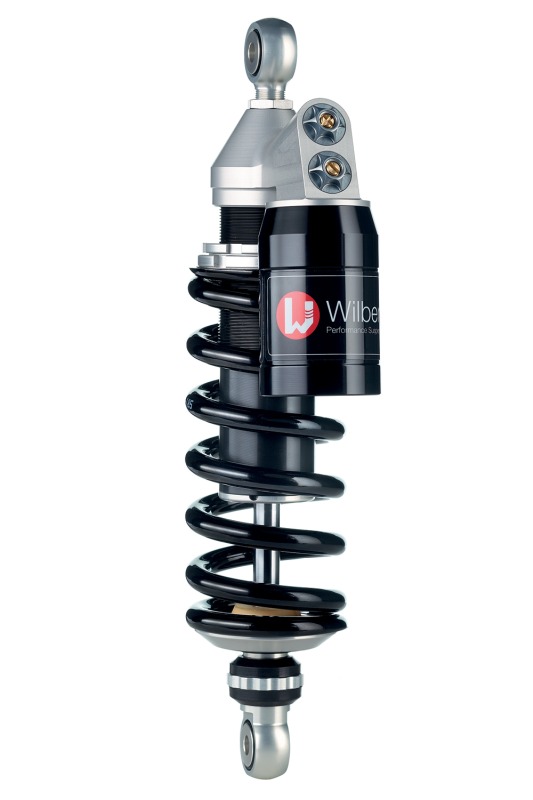

Wilbers shock absorber 642 Adjustline for Honda XR 650 L 93-99

Product details

Wilbers Performance Suspension Adjustline 642 Competition, mono rear shock absorber, with adjustable rebound and compression damping damping, and spring preload, with pressure reservoir featuring a milled part mounted on the shock absorber, for Honda XR 650 L, type RD 06, model year 93-99, with ABE according to scope of application.

General description

Adjustline Ø 46 mm – the robust ones: equipped with a 46 mm piston, they can withstand all impacts, are multi-adjustable, and available in various versions. A strong alternative!

Adjustline 642
The ultimate in motorcycle-shock absorbers! The upper mounting consists of a milled part. It serves as a connection to the balance tank of the compression damping and houses the adjustment knobs for the low- and high-speed range of the compression damping. 22 steps per range allow for optimal fine adjustment! At maximum compression speeds, an overpressure valve prevents the shock absorber hydraulic from blocking and uncontrolled impacts from being transmitted to the chassis. The rebound damping can be adjusted externally in 22 clicks. The spring base can be continuously pre-tensioned.

Features:
- 22-way adjustable low-speed compression damping damping
- 22-way adjustable high-speed compression damping damping
- Stepless spring preload via the supplied hook wrench
- 22-way adjustable rebound damping

Additional information and notes:

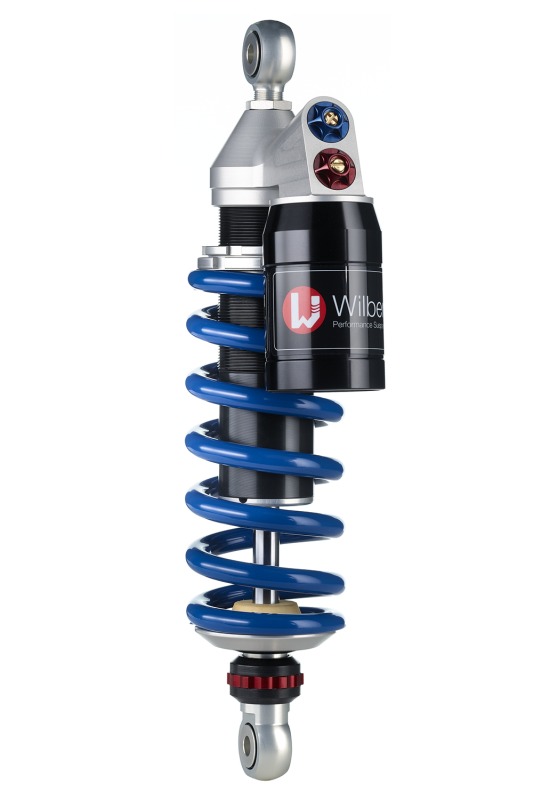

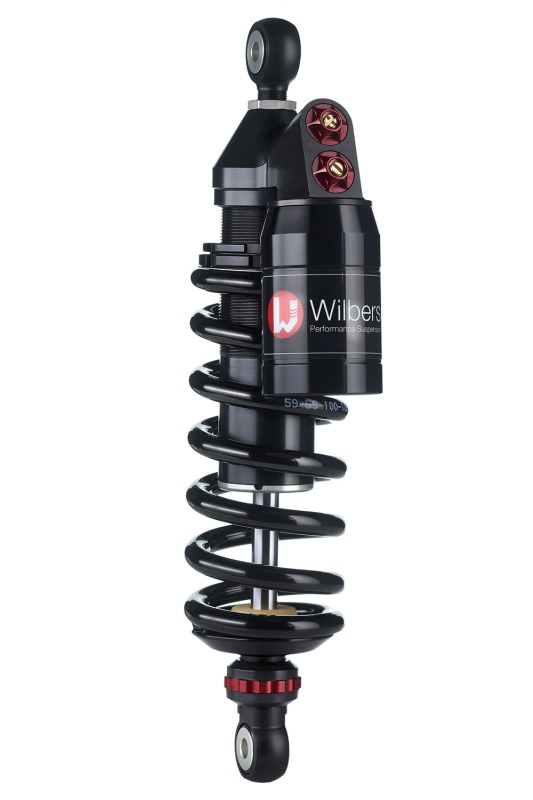

- In addition to the basic versions with black (Blackline) and blue (Blueline) spring, you can have the spring painted by us in all RAL colours, for an extra charge. Furthermore, it is possible to order the shock absorber as Wilbers Nightline. In the Nightline, the aluminium upper surfaces are matt black anodised, the spring is painted black, and the applications that serve the setting of the shock absorber are red anodised. For extra charge, see form (please specify colour in the order process).
- Also available in different lengths for raising or lowering: please inquire about lengths.
- Please also specify in the order process: rider weight including clothing in kg, pillion weight including clothing in kg, luggage weight in kg, frequency of solo operation without luggage in %, frequency of pillion operation in %, frequency of luggage operation in %, riding style (touring/sporty), intended use (race track/street/off-road).
