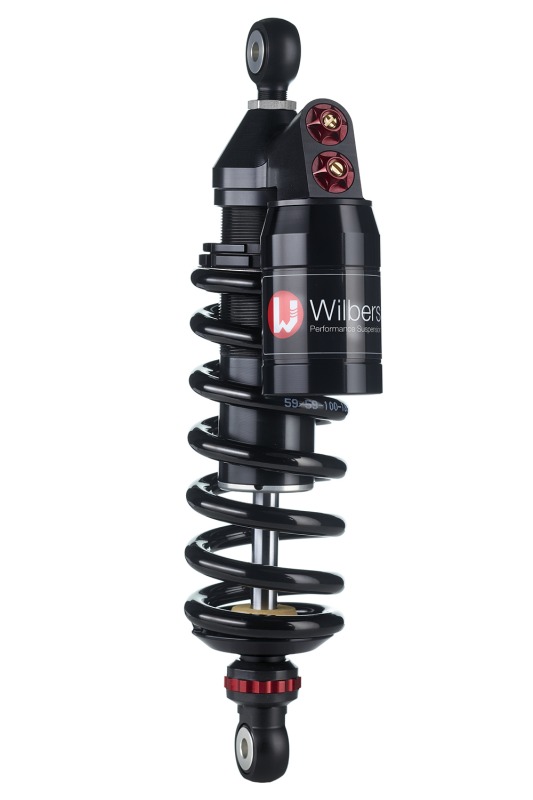

Wilbers shock absorber 642 Adjustline for Honda NSA 700 DN-01 08-11

Product details

Wilbers Performance Suspension Adjustline 642 Competition, monoshock rear, rebound and compression damping as well as spring preload adjustable, piggyback reservoir with a milled part mounted on the shock absorber, for Honda NSA 700 DN-01, type RC 55, model year 08-11, with ABE according to scope of application;
For a 25mm lowering, the correspondinge fork spring kit is necessary.

General description

Adjustline Ø 46 mm – the robust ones: Equipped with a 46 mm piston, they can handle all impacts, are highly adjustable, and available in various versions. A strong alternative!

Adjustline 642
The ultimate in motorcycle-shock absorbers! The upper mounting consists of a milled part. It serves as a connection to the balance tank of the compression damping and houses the adjustment knobs for the low- and high-speed range of the compression damping. 22 clicks per range allow for optimal fine adjustment! At maximum compression speeds, an overpressure valve prevents the shock absorber hydraulic from blocking and uncontrolled impacts from being transmitted into the chassis. Rebound can be adjusted externally in 22 clicks. The spring base can be continuously preloaded.

Features:
- 22-way adjustable low-speed compression damping damping
- 22-way adjustable high-speed compression damping damping
- Continuous spring preload adjustment using the supplied hook wrench
- 22-way adjustable rebound damping

Additional information and notes:

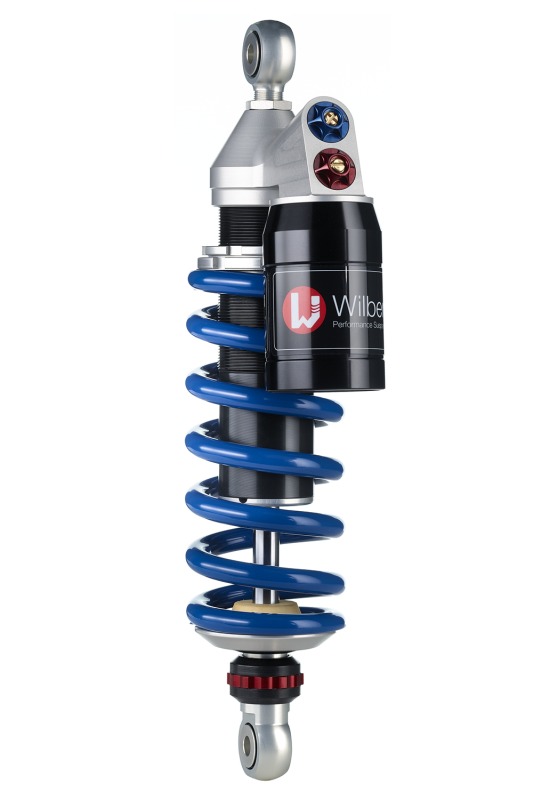

- Besides the basic versions with black (Blackline) and blue (Blueline) spring, you can, for an extra charge, have the spring painted by us in all RAL colours. Furthermore, it is possible to order the shock absorber as Wilbers Nightline. The aluminium upper surfaces are matt black anodised in the Nightline, the spring is painted black, and applications serving the setting of the shock absorber are red anodised. For surcharge, see form (please specify colour during the ordering process)
- Also available in different lengths for raising or lowering: please inquire about lengths
- Please also specify during the ordering process: rider weight including clothing in kg, pillion weight including clothing in kg, luggage weight in kg, frequency of solo operation without luggage in %, frequency of pillion operation in %, frequency of luggage operation in %, riding style (touring/sporty), purpose of use (race track/street/off-road)
