Wilbers shock absorber 642 Adjustline for BMW R 1200 GS (LC) 13-16

Product details

Wilbers Performance Suspension Adjustline 642 Competition, mono-shock absorber rear, rebound and compression damping as well as spring preload adjustable, compression reservoir with machined part mounted on the shock absorber, for BMW R 1200 GS (LC), Type R 12 W, model year 13-16, fixed ride height increase +15 mm, with ABE according to scope of use

General description

Adjustline Ø 46 mm – the robust ones: Equipped with a 46 mm piston, they can withstand all impacts, are multi-adjustable and available in various designs. A strong alternative!

Adjustline 642
The ultimate in motorcycle-shock absorbers! The upper mounting consists of a machined part. It serves as a connection to the balance tank of the compression damping and houses the adjustment knobs for the low- and high-speed range of the compression damping. 22 clicks per range allow for optimal fine adjustment! At maximum compression speeds, an overpressure valve prevents the shock absorber hydraulic from blocking and uncontrolled shocks from being transferred to the chassis. The rebound can be adjusted externally in 22 clicks. The spring preload can be continuously adjusted.

Features:
- 22-way adjustable low-speed compression damping damping
- 22-way adjustable high-speed compression damping damping
- Continuous spring preload by means of the supplied hook wrench
- 22-way adjustable rebound damping

Additional information and notes:

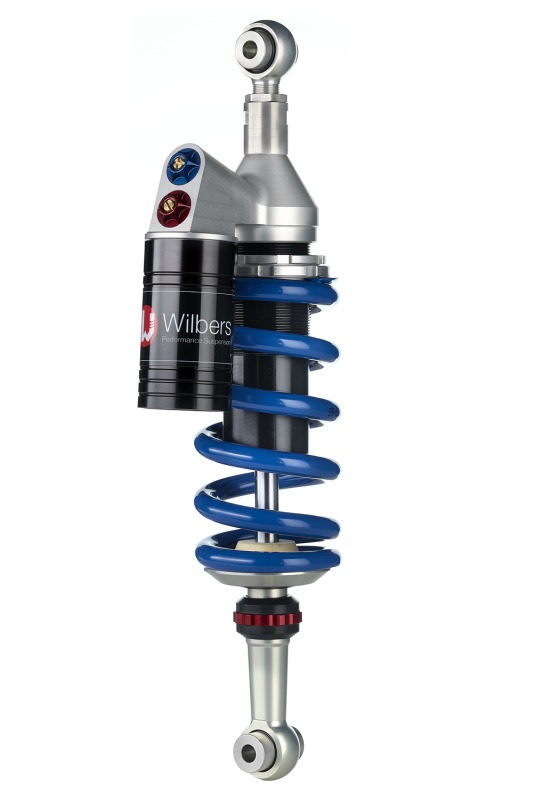

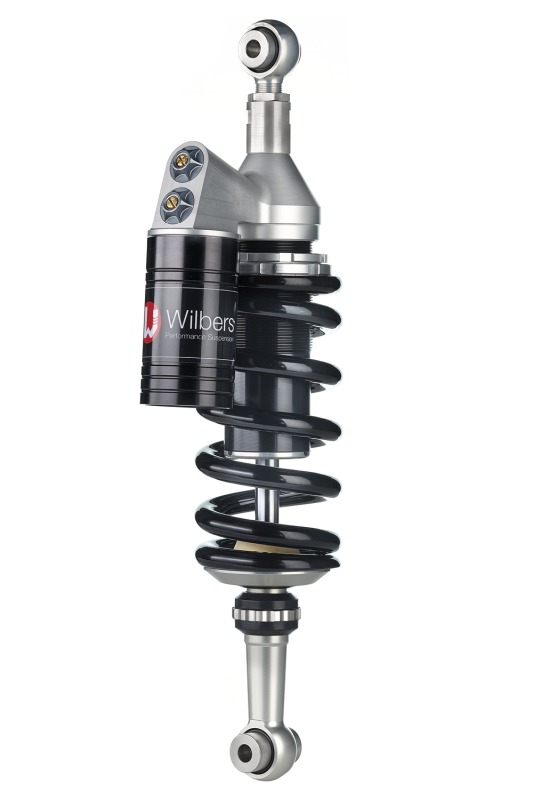

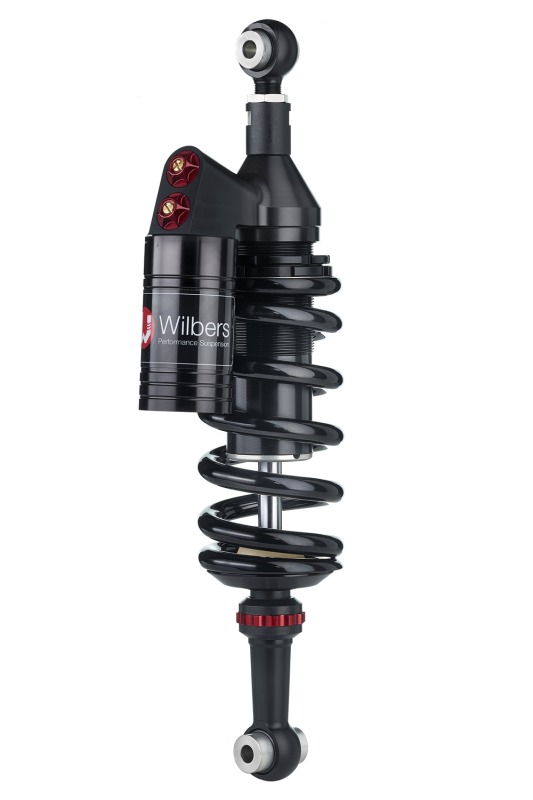

- In addition to the basic versions with black (Blackline) and blue (Blueline) spring, you can have the spring painted by us in all RAL colours, at an extra charge. Furthermore, it is possible to order the shock absorber as Wilbers Nightline. The aluminium upper surfaces are matt black anodised in the Nightline, the spring is painted black and applications serving the setting of the shock absorber are red anodised. For extra charge, see form (please state colour during the ordering process)
- Also available in various lengths for raising or lowering: Please enquire about lengths
- During the ordering process, please also specify: rider weight including clothing in kg, pillion weight including clothing in kg, luggage weight in kg, frequency of solo operation without luggage in %, frequency of pillion operation in %, frequency of luggage operation in %, riding style (touring/sporty), intended use (race track/street/off-road)
