Wilbers shock absorber 641 Adjustline for Yamaha V-Max (1700) 09-

Product details

Wilbers Performance Suspension Adjustline 641 Competition, mono-shock rear, rebound and compression damping as well as spring preload adjustable, reservoir connected via a hose, for Yamaha V-Max (1700), type RP 21, model year 09-, with ABE according to scope of application;

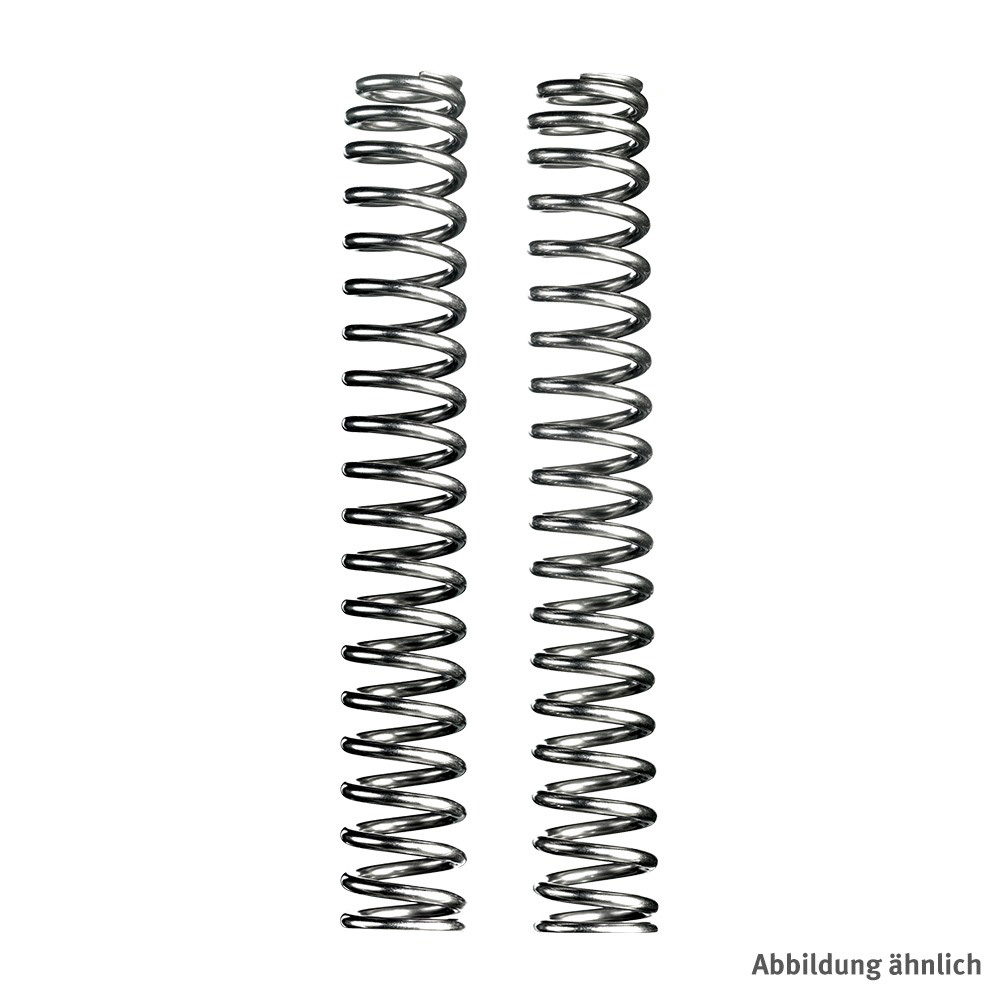

For a 50mm lowering, the correspondinging fork spring kit is necessary.

General description

Adjustline Ø 46 mm – the robust ones: Equipped with a 46 mm piston, they can withstand all impacts, are multi-adjustable and available in various designs. A strong alternative!

Adjustline 641
With this shock absorber, the balance tank is attached to a steel braided line. This makes it an ideal alternative for street motorcycles with space constraints. The flexible hose allows the balance tank to be mounted where space is available - for example, on the frame section, where air stream flows provide cooling. The adjustment knobs for the low and high-speed range of the compression damping, each adjustable in 22 steps, are also easily accessible from the outside. The rebound damping can be adjusted 22-fold via an open bleed system, and the spring basis can be continuously adjusted.

Features:
- 22-way adjustable high-speed compression damping damping
- 22-way adjustable low-speed compression damping damping
- Stepless spring preload using the supplied hook wrench
- 22-way adjustable rebound damping

Additional information and notes:
- In addition to the basic versions with black (Blackline) and blue (Blueline) spring, you can, for an extra charge, have the spring painted by us in all RAL colours. Furthermore, it is possible to order the shock absorber as Wilbers Nightline. The aluminium upper surfaces are matte black anodised in the Nightline, the spring is painted black, and the applications, which serve the setting of the shock absorber, are red anodised. For extra charge, see form (please specify colour during the ordering process).
- Also available in various lengths for raising or lowering: please enquire about lengths.
- Please also specify during the ordering process: rider weight including clothing in kg, pillion weight including clothing in kg, luggage weight in kg, frequency of solo operation without luggage in %, frequency of pillion operation in %, frequency of luggage operation in %, riding style (touring/sporty), purpose of use (race track/street/off-road).
