Wilbers shock absorber 640 Adjustline for KTM 690 Enduro R 12-

Product details

Wilbers Performance Suspension 640 Adjustline, mono-shock absorber rear, rebound and spring preload adjustable, for KTM 690 Enduro R, type KTM 690 LC 4, model year 12-, fixed raised height +20 mm, with ABE according to scope of application

General description

Adjustline Ø 46 mm – the robust ones: Equipped with a 46 mm __AT_GLOSSSARY_10__, they are capable of withstanding all impacts, highly adjustable and available in various versions. A strong alternative!

Adjustline 640
The basic version of the Wilbers Adjustline features the same technology as the more elaborate versions. The difference lies in the absence of the external balance tank and the adjustment options for compression damping. It makes no compromises in terms of response and durability. Radial pistons, wet-running guides, PTFE-guided spherical plain bearings, and other features redefine the standard for a basic shock absorber. Naturally, the spring preload is continuously adjustable here, and the rebound is adjustable over an extremely wide range via an open bleed system with 22 clicks. The shock absorber can be retrofitted with many extras from Wilbers.

Features:
- Continuous spring preload adjustment using the supplied hook wrench
- 22-way adjustable rebound damping

Additional information and notes:

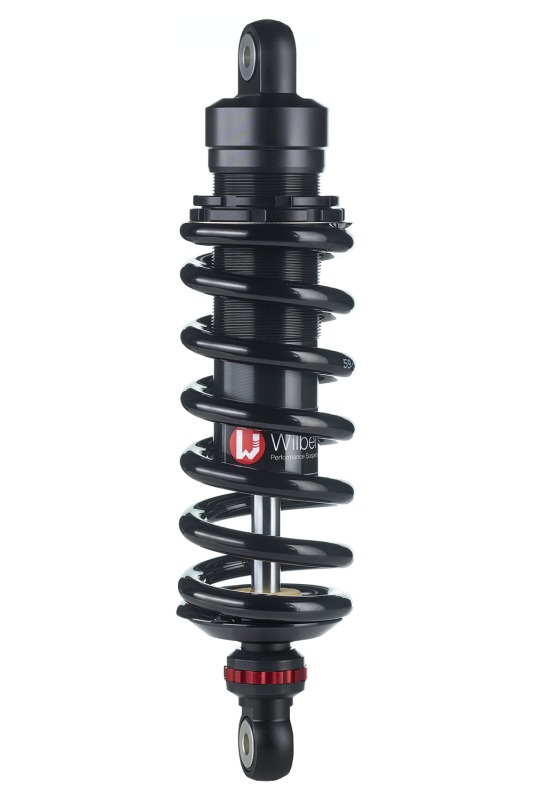

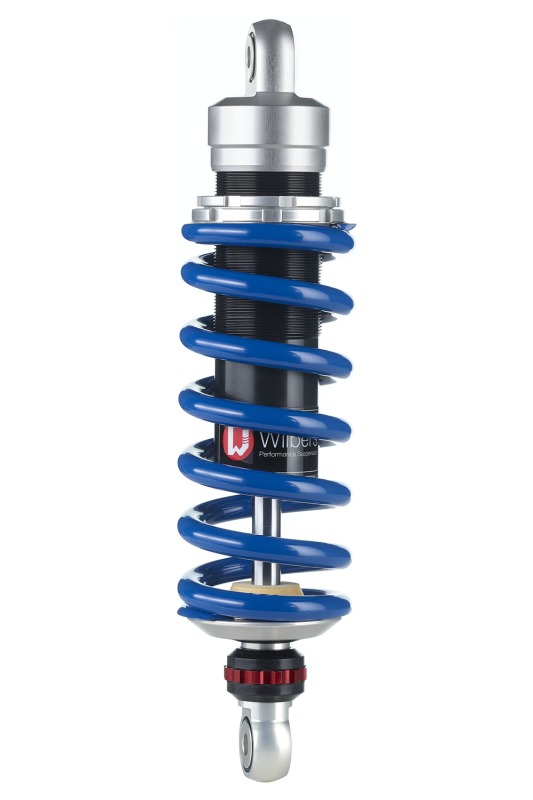

- In addition to the basic versions with black (Blackline) and blue (Blueline) spring, you can have the spring painted by us in all RAL colours, for an extra charge. Furthermore, it is possible to order the shock absorber as Wilbers Nightline. In the Nightline, the aluminium upper surfaces are matte black anodised, the spring is painted black, and applications serving the setting of the shock absorber are red anodised. For extra charge, see form (please specify colour during order process)
- Also available in different lengths for raising or lowering: please enquire about lengths
- Please also specify during the order process: rider weight including clothing in kg, pillion weight including clothing in kg, luggage weight in kg, frequency of solo use without luggage in %, frequency of pillion use in %, frequency of luggage use in %, riding style (touring/sporty), intended use (race track/street/off-road)
