Wilbers shock absorber 640 Adjustline for KTM 690 Duke 12-

Product details

Wilbers Performance Suspension 640 Adjustline, mono shock absorber rear, rebound and spring preload adjustable, for KTM 690 Duke, type KTM 690 Duke, model year 12-, fixed ride height increase +25 mm, with ABE according to scope of application

General description

Adjustline Ø 46 mm – the robust ones: equipped with a 46 mm piston, they are capable of handling all impacts, multi-adjustable and available in various versions. A strong alternative!

Adjustline 640
The basic version of the Wilbers Adjustline features the same technology as the more elaborate versions. The difference lies in the absence of the external balance tank and the adjustment options for compression damping. It makes no compromises in terms of response and durability. Radial pistons, wet-running guides, PTFE-lined spherical bearings and other features redefine the standard for a basic shock absorber. Of course, the spring preload is continuously adjustable here, and the rebound can be adjusted over an extremely wide range with 22 clicks via an open bleed system. The shock absorber can be retrofitted with many extras from Wilbers.

Features:
- Continuous spring preload adjustment using the supplied hook wrenchs
- 22-way adjustable rebound damping

Additional information and notes:

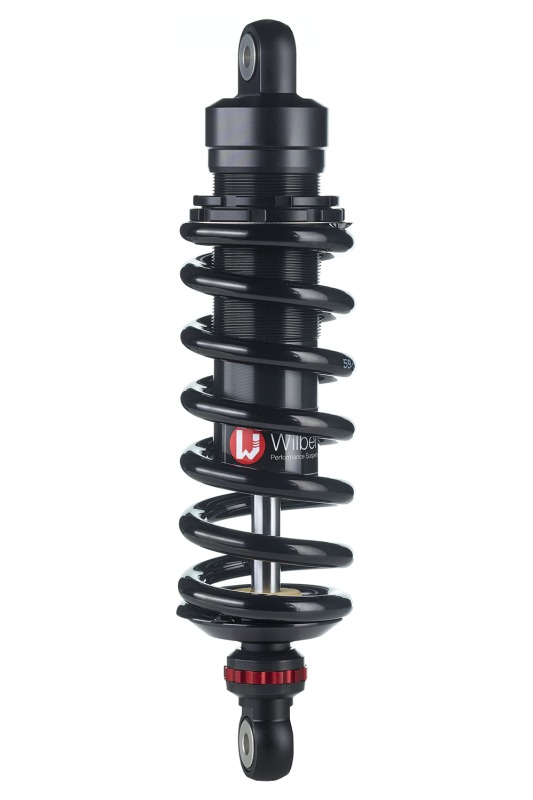

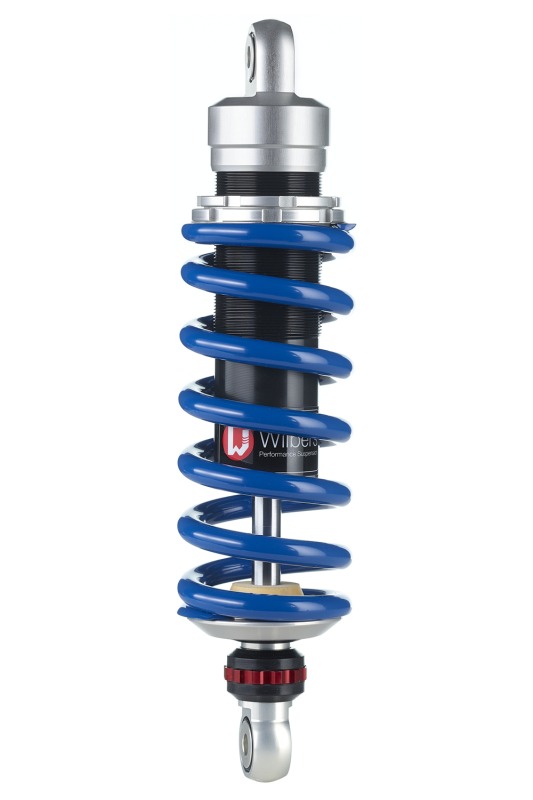

- In addition to the basic versions with black (Blackline) and blue (Blueline) spring, you can, for an extra charge, have the spring painted by us in all RAL colours. Furthermore, it is possible to order the shock absorber as Wilbers Nightline. The aluminium upper surfaces are matte black anodised in the Nightline, the spring is painted black, and applications serving the setting of the shock absorber are red anodised. For extra charge, see form (please specify colour during the order process)
- Also available in different lengths for raising or lowering: please inquire about lengths
- Please also specify during the order process: rider weight including clothing in kg, pillion weight including clothing in kg, luggage weight in kg, frequency of solo operation without luggage in %, frequency of pillion operation in %, frequency of luggage operation in %, riding style (touring/sporty), intended use (racetrack/street/off-road)
