Wilbers shock absorber 633 Adjustline for Yamaha XT 500 76-89

Product Details

Wilbers Performance Suspension Adjustline 633 Competition P, stereo rear (set), rebound and compression damping as well as spring preload adjustable, balance tank pivotable (before delivery or before mounting the shock absorber), for Yamaha XT 500, type 1 U 6, model year 76-89, with ABE according to scope of application.

General Description

Adjustline 36 mm radial pistons in honed precision cylinders guarantee optimal function without external diameter space issues.

Adjustline 633
With balance tank on the machined part (type H40) – the best of the best! The mounting for the pressure reservoir is made of solid aluminium and houses the adjustment units for high- and low-speed compression damping. Hydraulic blocking and jolts to the suspension are prevented by an overpressure valve. The shock absorber is fully adjustable with 22 clicks each for high-speed, low-speed, and rebound. The spring preload can be continuously modified mechanically or even hydraulic. The best materials ensure a long service life and high reliability. Damping and spring are, as always, chosen according to rider data!

Features:
- With pivotable balance tank (adjustable at the factory only)
- 22-way adjustable low-speed compression damping damping
- 22-way adjustable high-speed compression damping damping
- 22-way adjustable rebound damping
- Continuous spring preload using the supplied hook wrench

Additional Information and Notes:

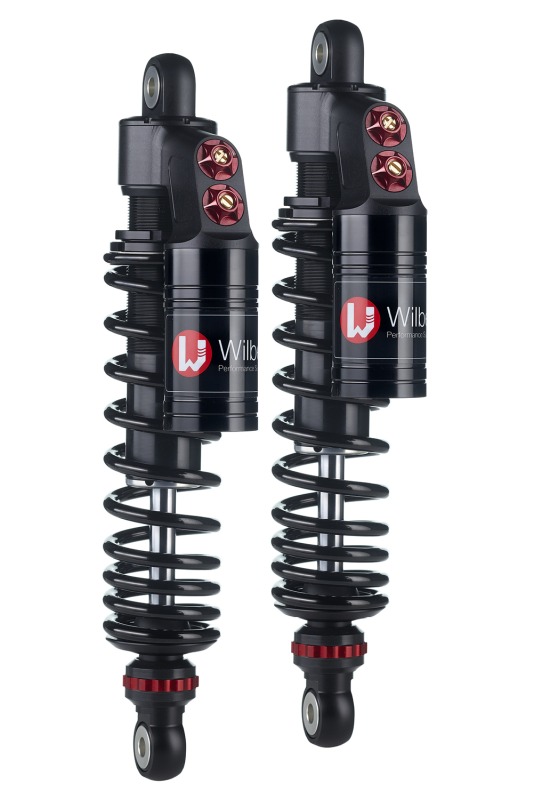

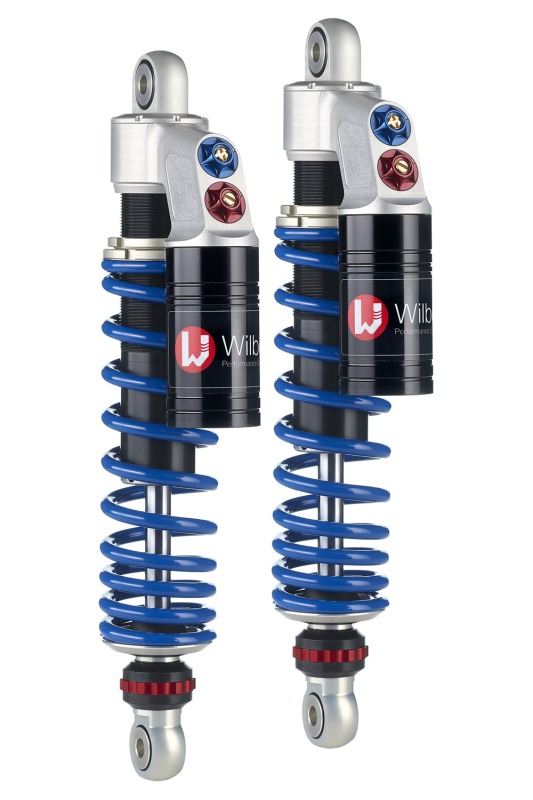

- In addition to the basic versions with black (Blackline) and blue (Blueline) spring, you can have the spring painted by us in all RAL colours, for an extra charge. Furthermore, it is possible to order the shock absorber as Wilbers Nightline. The aluminium upper surfaces are anodised matt black in the Nightline, the spring is painted black, and applications that serve the setting of the shock absorber are anodised red. For an extra charge, see the form (please specify colour in the order process)
- Also available in various lengths for raising or lowering: please enquire about lengths
- Please also specify in the order process: rider weight including clothing in kg, pillion weight including clothing in kg, luggage weight in kg, frequency of solo use without luggage in %, frequency of pillion use in %, frequency of luggage use in %, riding style (touring/sporty), intended use (race track/street/off-road)
