Wilbers shock absorber 633 Adjustline for Yamaha XJR 1300 04-/ 08-

Product Details

Wilbers Performance Suspension Adjustline 633 Competition P, stereo rear shock absorbers (set), rebound and compression damping as well as spring preload adjustable, balance tank pivotable (before delivery or before mounting the shock absorber), for Yamaha XJR 1300, Type RP 10 / RP 19, model year 04-/ 08-, with ABE according to scope of use.

General Description

Adjustline 36 mm radial pistons in precision ground cylinders guarantee optimal function without clearance issues in the outer diameter.

Adjustline 633
With balance tank on the milled part (Type H40) - the best of the best! The mounting for the pressure reservoir is made of solid aluminium and houses the adjustment units for high and low-speed compression damping. Hydraulic locking and impacts to the chassis are prevented by an overpressure valve. The shock absorber is fully adjustable with 22 clicks each for high-speed, low-speed, and rebound. The spring preload can be continuously modified mechanically or even hydraulic. Best materials ensure long service life and high reliability. Damping and spring are, as always, selected according to rider data!

Features:
- With pivotable balance tank (adjustable only at the factory)
- 22-way adjustable low-speed compression damping damping
- 22-way adjustable high-speed compression damping damping
- 22-way adjustable rebound damping
- Continuous spring preload via the supplied hook wrench

Additional Information and Notes:

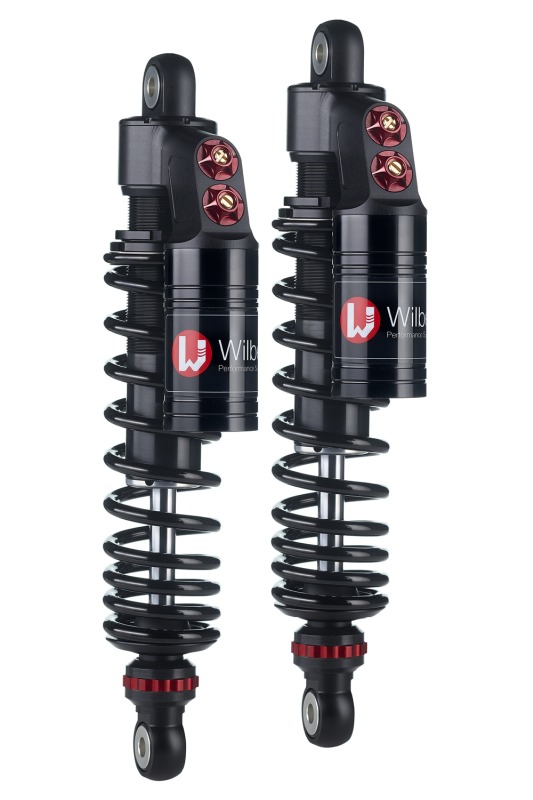

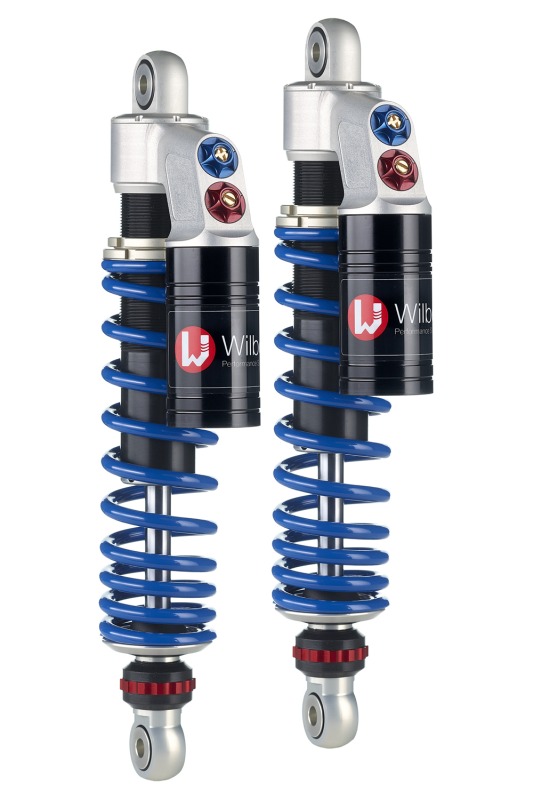

- In addition to the basic versions with black (Blackline) and blue (Blueline) spring, you can, for an extra charge, have the spring painted by us in all RAL colours. Furthermore, it is possible to order the shock absorber as Wilbers Nightline. The aluminium upper surfaces in the Nightline are matt black anodised, the spring is black painted, and applications serving the setting of the shock absorber are red anodised. For surcharge, see form (please specify colour during the order process)
- Also available in various lengths for raising or lowering: please enquire about lengths
- Please also specify during the order process: rider weight including clothing in kg, pillion weight including clothing in kg, luggage weight in kg, frequency of solo operation without luggage in %, frequency of pillion operation in %, frequency of luggage operation in %, riding style (touring/sporty), intended use (race track/street/off-road)
