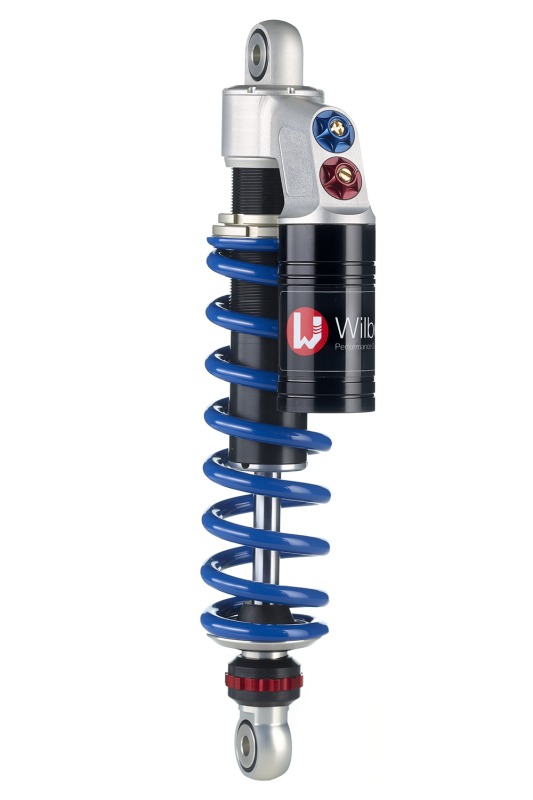

Wilbers shock absorber 633 Adjustline for Suzuki SFV Gladius 650 09-

Product details

Wilbers Performance Suspension Adjustline 633 Competition P, mono-shock absorber, rebound and compression damping as well as spring preload adjustable, balance tank pivotable (before delivery or before mounting the shock absorber), for Suzuki SFV Gladius 650, Type WVCX, model year 09-, with ABE according to scope of application;
For a lowering of 40mm, the corresponding forkspring kit is necessary.

General description

Adjustline 36 mm radial pistons in ground precision cylinders guarantee optimal function without external diameter space issues.

Adjustline 633
With balance tank on the milled part (Type H40) - the best of the best! The mounting for the pressure reservoir consists of solid aluminium and houses the adjustment units for high- and low-speed compression damping. Hydraulic locking and impacts to the chassis are prevented by a pressure relief valve. The shock absorber is fully adjustable with 22 clicks each for high-speed, low-speed, and rebound damping. The spring preload can be continuously modified mechanically or even hydraulic. Best materials ensure a long service life and high reliability. Damping and spring are, as always, selected according to rider data!

Features:
- With pivotable balance tank (only adjustable at the factory)
- 22-way adjustable low-speed compression damping damping
- 22-way adjustable high-speed compression damping damping
- 22-way adjustable rebound damping
- Continuous spring preload via supplied hook wrench

Additional information and notes:

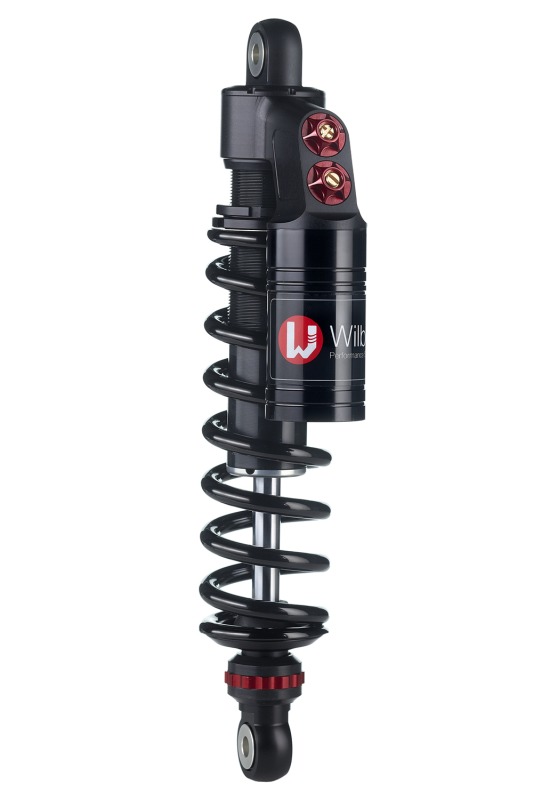

- In addition to the standard versions with black (Blackline) and blue (Blueline) spring, you can, for an additional charge, have the spring painted by us in all RAL colours. Furthermore, it is possible to order the shock absorber as Wilbers Nightline. In the Nightline, the aluminium upper surfaces are matt black anodised, the spring is painted black, and applications serving the setting of the shock absorber are red anodised. For additional charge, see form (please specify colour during the order process)
- Also available in different lengths for raising or lowering: please enquire about lengths
- Please also specify in the order process: rider weight including clothing in kg, pillion weight including clothing in kg, luggage weight in kg, frequency of solo riding without luggage in %, frequency of pillion riding in %, frequency of luggage use in %, riding style (touring/sporty), intended use (racetrack/street/off-road)
