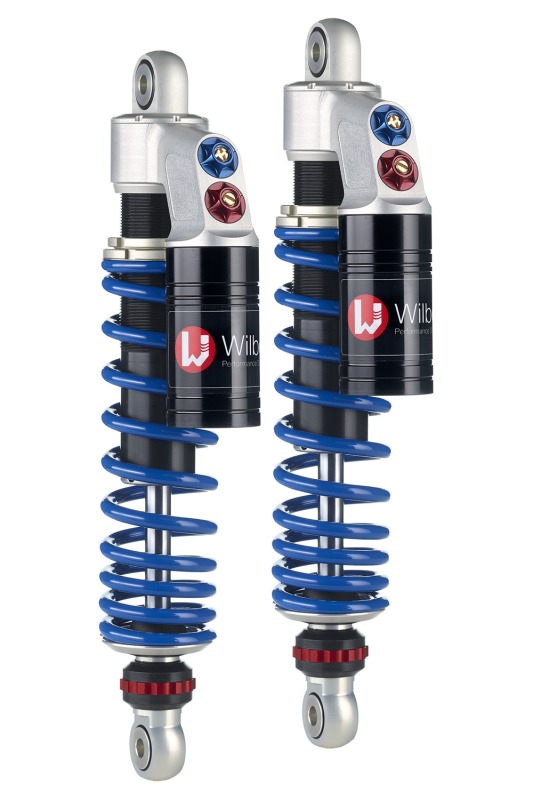

Wilbers shock absorber 633 Adjustline for Kawasaki ER-5 Twister 96-00

Product Details

Wilbers Performance Suspension Adjustline 633 Competition P, stereo rear (set), adjustable rebound and compression damping as well as spring preload, balance tank swivelling (before delivery or before mounting the shock absorber), for Kawasaki ER-5 Twister, type ER 500 A, model year 96-00, with ABE according to scope of use.

General Description

Adjustline 36 mm radial pistons in ground precision cylinders guarantee optimal function without outer diameter space issues.

Adjustline 633
With balance tank on the machined part (Type H40) - the best of the best! The mounting for the pressure reservoir is made of solid aluminium and houses the adjustment units for high- and low-speed compression damping. Hydraulic blocking and impacts to the chassis are prevented by a pressure relief valve. The shock absorber is fully adjustable with 22 clicks each for high-speed, low-speed, and rebound. The spring preload can be continuously modified mechanically or even hydraulic. Best materials ensure long service life and high reliability. Damping and spring are, as always, selected according to rider data!

Features:
- With swivelling balance tank (adjustable at the factory only)
- 22-way adjustable low-speed compression damping damping
- 22-way adjustable high-speed compression damping damping
- 22-way adjustable rebound damping
- Stepless spring preload via the supplied hook wrench

Additional information and notes:

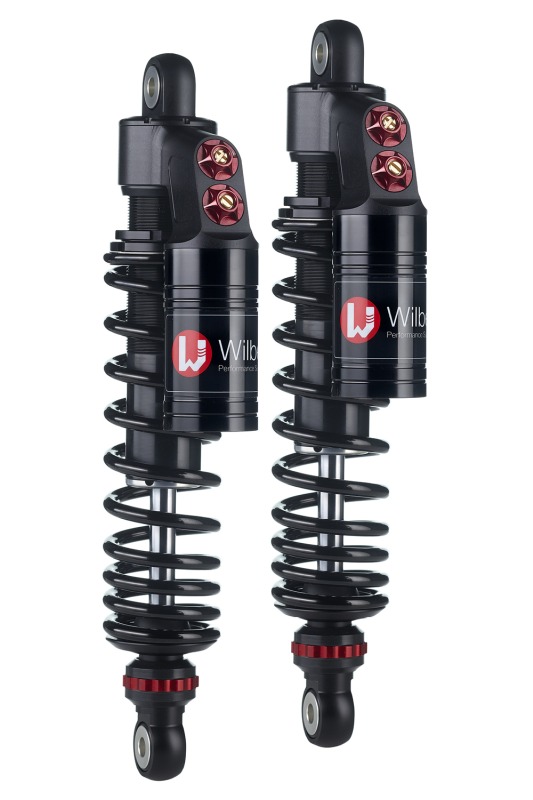

- In addition to the basic versions with black (Blackline) and blue (Blueline) spring, you can, for an extra charge, have the spring painted by us in all RAL colours. Furthermore, it is possible to order the shock absorber as Wilbers Nightline. The aluminium upper surfaces are anodised matt black in the Nightline, the spring is painted black, and applications serving the setting of the shock absorber are anodised red. For extra charge, see form (please specify colour during the order process)
- Also available in various lengths for raising or lowering: please enquire about lengths
- Please also specify in the order process: rider weight including clothing in kg, pillion weight including clothing in kg, luggage weight in kg, frequency of solo riding without luggage in %, frequency of pillion riding in %, frequency of luggage riding in %, riding style (touring/sporty), intended use (racetrack/street/off-road)
