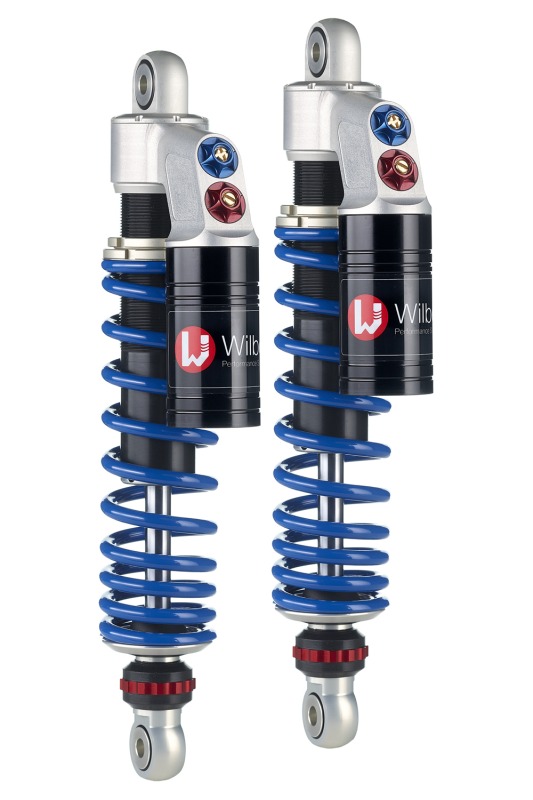

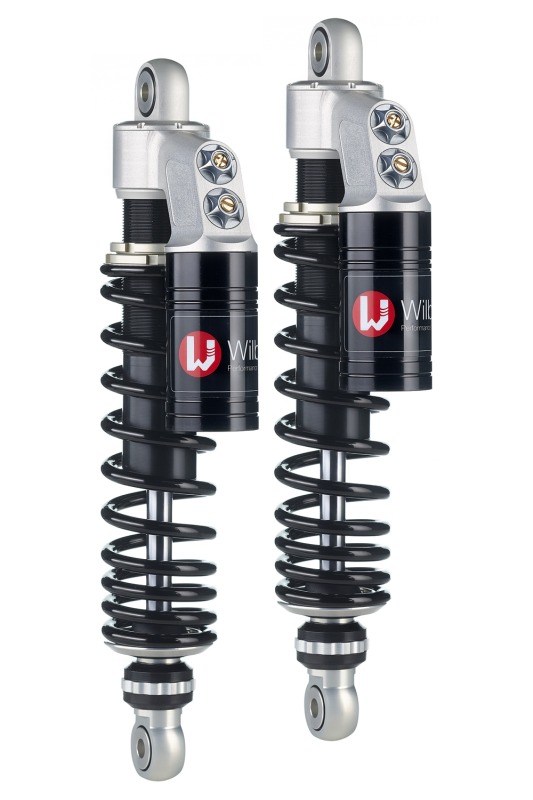

Wilbers shock absorber 633 Adjustline for Honda VTX 1300 03-

Product Details

Wilbers Performance Suspension Adjustline 633 Competition P, stereo rear (set), adjustable rebound and compression damping as well as spring preload, balance tank swivelling (before delivery or before mounting the shock absorber), for Honda VTX 1300, type SC 52, model year 03-, with ABE according to application range.

General Description

Adjustline 36 mm radial pistons in ground precision cylinders guarantee optimal function without outer diameter space issues.

Adjustline 633
With balance tank on the milled part (Type H40) - the best of the best! The mounting for the pressure reservoir is made of solid aluminium and houses the adjustment units for high and low-speed compression damping. Hydraulic blocking and chassis shocks are prevented by an overpressure valve. The shock absorber is fully adjustable in 22 clicks each for high-speed, low-speed, and rebound. The spring preload can be continuously modified mechanically or even hydraulic. The best materials ensure a long service life and high reliability. Damping and spring are, as always, chosen according to rider data!

Features:
- With swivelling balance tank (adjustable only at the factory)
- 22-way adjustable low-speed compression damping damping
- 22-way adjustable high-speed compression damping damping
- 22-way adjustable rebound damping
- Continuous spring preload using the supplied hook wrench

Additional information and notes:

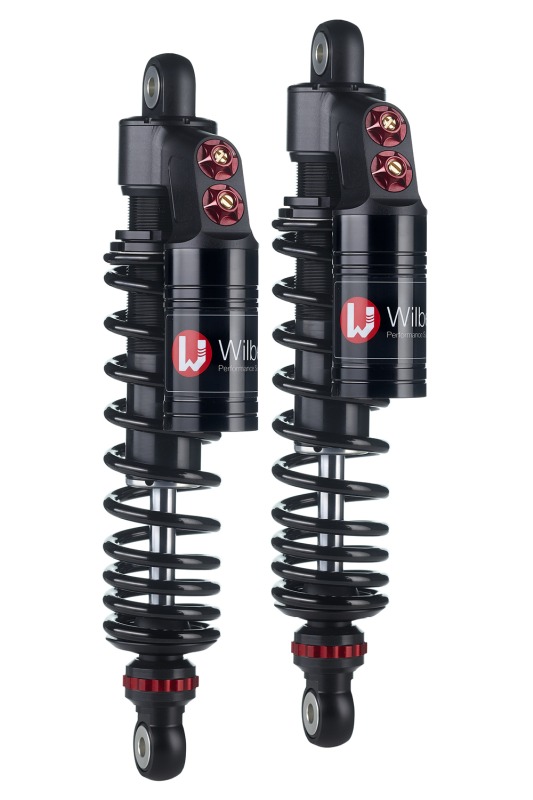

- In addition to the basic versions with black (Blackline) and blue (Blueline) spring, you can, for an extra charge, have the spring painted by us in all RAL colours. Furthermore, it is possible to order the shock absorber as Wilbers Nightline. The aluminium upper surfaces in the Nightline are matt black anodised, the spring is painted black, and applications, which serve the setting of the shock absorber, are red anodised. For surcharge, see form (please specify colour in the order process)
- Also available in different lengths for raising or lowering: please enquire about lengths
- Please also specify in the order process: rider weight including clothing in kg, pillion weight including clothing in kg, luggage weight in kg, frequency of solo riding without luggage in %, frequency of pillion riding in %, frequency of luggage use in %, riding style (touring/sporty), intended use (racetrack/street/off-road)
