Wilbers shock absorber 633 Adjustline for Harley Davidson Dyna Super Glide Custom FXDC 06-12

Product details

Wilbers Performance Suspension Adjustline 633 Competition P, stereo shock absorbers rear (set), rebound and compression damping as well as spring preload adjustable, balance tank swivelling (before delivery or before mounting the shock absorber), for Harley Davidson Dyna Super Glide Custom FXDC, Type FD 2, model year 06-12, fixed raising +15 mm, with ABE according to scope of application

General description

Adjustline 36 mm radial pistons in ground precision cylinders guarantee optimal function without external diameter space issues.

Adjustline 633
With balance tank on the milled part (Type H40) - the best of the best! The mounting for the pressure reservoir is made of solid aluminium and houses the adjustment units for high- and low-speed compression damping. Hydraulic locking and impacts to the chassis are prevented by a pressure relief valve. The shock absorber is fully adjustable with 22 clicks each for high-speed, low-speed, and rebound. The spring preload can be continuously modified mechanically or even hydraulic. The best materials ensure a long service life and high reliability. Damping and spring are, as always, selected according to rider data!

Features:
- With swivelling balance tank (adjustable only at the factory)
- 22-way adjustable low-speed compression damping damping
- 22-way adjustable high-speed compression damping damping
- 22-way adjustable rebound damping
- Continuous spring preload via the supplied hook wrench

Additional information and notes:

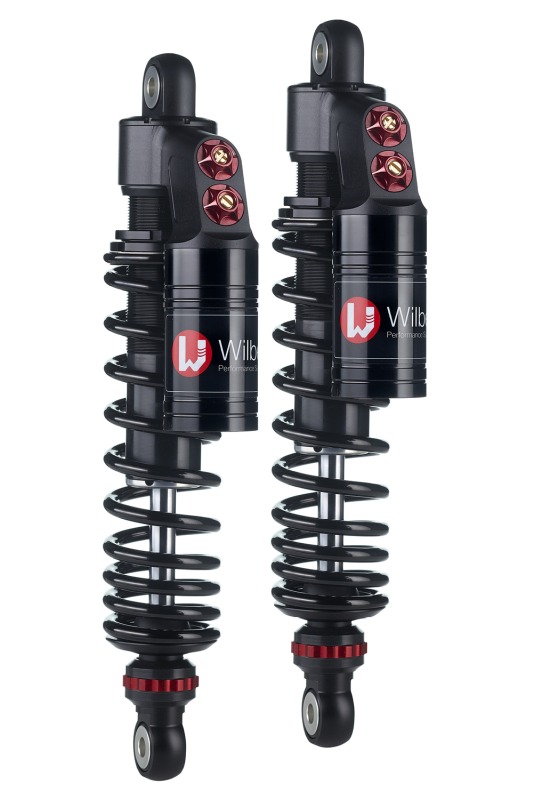

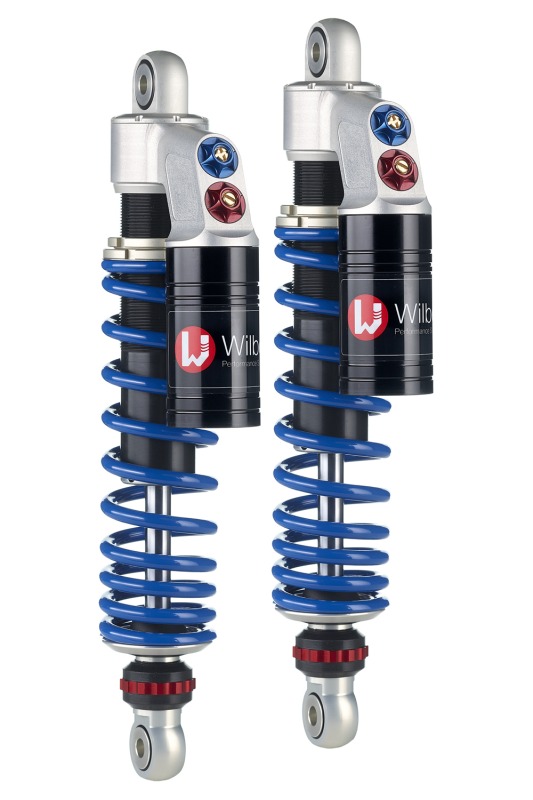

- In addition to the basic versions with black (Blackline) and blue (Blueline) spring, you can have the spring painted by us in all RAL colours, at an extra charge. Furthermore, it is possible to order the shock absorber as Wilbers Nightline. The aluminium upper surfaces are anodised matt black in the Nightline, the spring is painted black, and applications serving the setting of the shock absorber are anodised red. For an extra charge, see the form (please specify colour during the order process)
- Also available in different lengths for raising or lowering: please enquire about lengths
- For every order, please also specify: rider weight including clothing in kg, pillion weight including clothing in kg, luggage weight in kg, frequency of solo operation without luggage in %, frequency of pillion operation in %, frequency of luggage operation in %, riding style (touring/sporty), intended use (racetrack/street/off-road)
