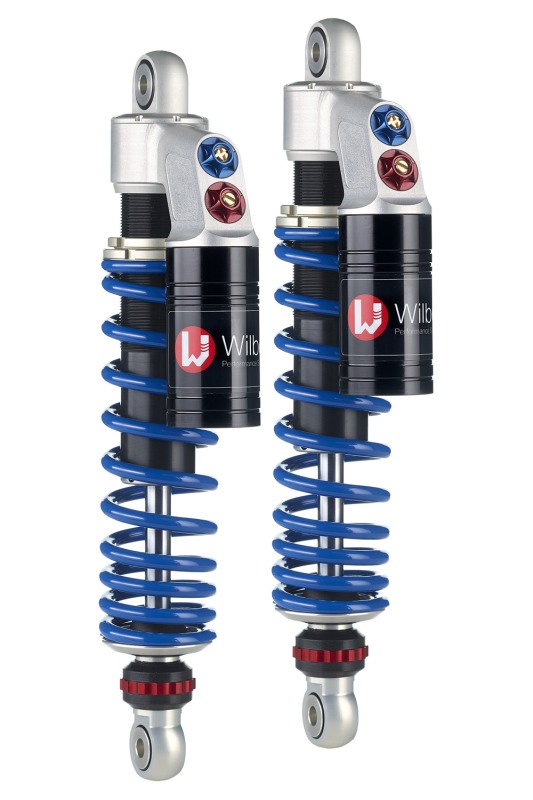

Wilbers shock absorber 633 Adjustline for Harley Davidson Dyna Super Glide Convertible 05-

Product details

Wilbers Performance Suspension Adjustline 633 Competition P, stereo shock absorber rear (set), rebound and compression damping as well as spring preload adjustable, balance tank swivel-mounted (before delivery or before mounting the shock absorber), for Harley Davidson Dyna Super Glide Convertible, type FD 1, model year 05-, with ABE according to scope of application

General description

Adjustline 36 mm radial pistons in honed precision cylinders guarantee optimum function without external diameter space issues.

Adjustline 633
With balance tank on the machined part (type H40) - the best of the best! The mounting for the pressure reservoir is made of solid aluminium and houses the adjustment units for high-speed and low-speed compression damping. Hydraulic blocking and shocks to the chassis are prevented by a pressure relief valve. The shock absorber is fully adjustable with 22 clicks each for high-speed, low-speed, and rebound. The spring preload can be continuously modified mechanically or even hydraulic. Best materials ensure a long service life and high reliability. Damping and spring are, as always, selected according to rider data!

Features:
- With swivel-mounted balance tank (adjustable only at the factory)
- 22-way adjustable low-speed compression damping damping
- 22-way adjustable high-speed compression damping damping
- 22-way adjustable rebound damping
- Continuous spring preload using the supplied hook wrench

Additional info and notes:
- Besides the basic versions with black (Blackline) and blue (Blueline) spring, you can, for an extra charge, have the spring painted by us in all RAL colours. Furthermore, it is possible to order the shock absorber as Wilbers Nightline. The aluminium upper are matt black anodised in the Nightline, the spring is painted black, and applications serving the setting of the shock absorber are red anodised. For extra charge, see form (please specify colour in the order process)
- Also available in various lengths for raising or lowering: please inquire about lengths
- In the order process, please also specify: rider weight including clothing in kg, pillion weight including clothing in kg, luggage weight in kg, frequency of solo operation without luggage in %, frequency of pillion operation in %, frequency of luggage operation in %, riding style (touring/sporty), intended use (race track/street/off-road)
