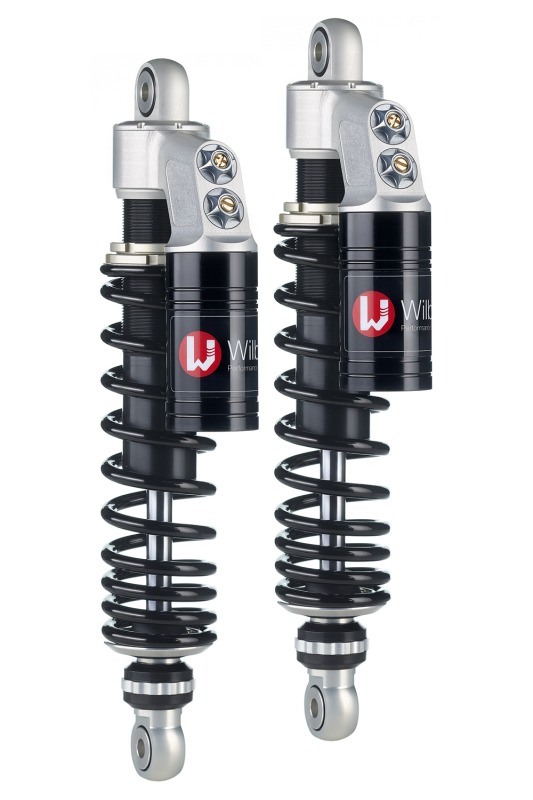

Wilbers shock absorber 633 Adjustline for Harley Davidson 883 Iron 2010-, Lowering

Product details

Wilbers Performance Suspension Adjustline 633 Competition P, stereo rear (set), with 30 mm lowering, rebound and compression damping as well as spring preload adjustable, balance tank pivotable (before delivery or before mounting the shock absorber), for Harley Davidson 883 Iron, type XL 2, model year 10-, with ABE according to application area.

General description

Adjustline 36 mm radial pistons in ground precision cylinders guarantee optimal function without external diameter space issues.

Adjustline 633
With balance tank on the milled part (Type H40) - the best of the best! The mounting for the pressure reservoir is made of solid aluminium and houses the adjustment units for high- and low-speed compression damping. Hydraulic blocking and chassis shocks are prevented by a pressure relief valve. The shock absorber is fully adjustable with 22 clicks each for high-speed, low-speed, and rebound. The spring preload can be continuously modified mechanically or even hydraulic. Best materials ensure a long service life and high reliability. Damping and spring are, as always, selected according to rider data!

Features:
- With pivotable balance tank (adjustable at the factory only)
- 22-way adjustable low-speed compression damping damping
- 22-way adjustable high-speed compression damping damping
- 22-way adjustable rebound damping
- Continuous spring preload via the included hook wrench

Additional information and notes:

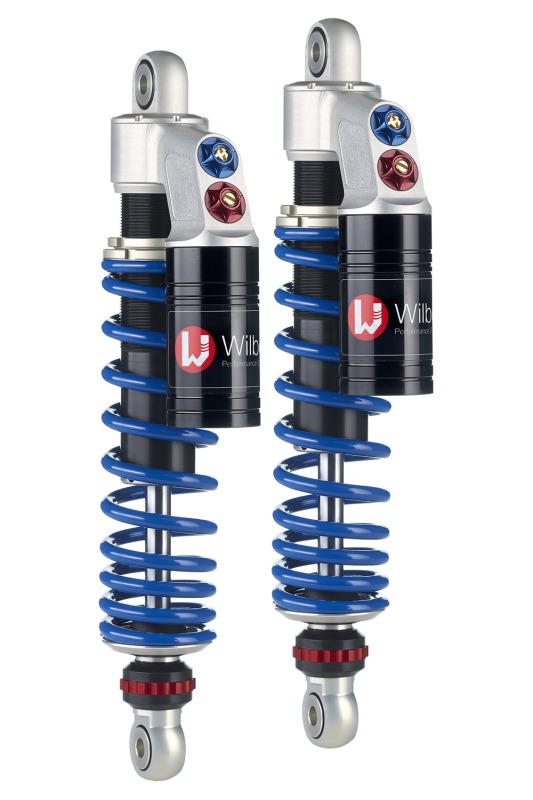

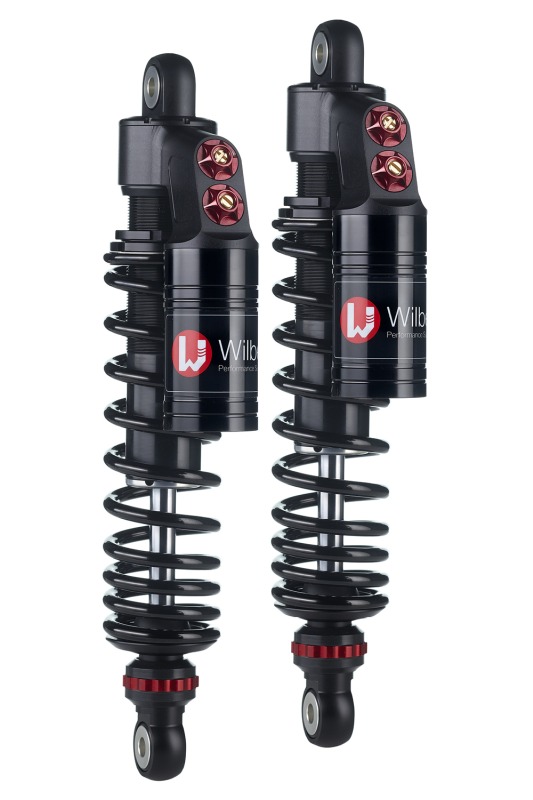

- In addition to the basic versions with black (Blackline) and blue (Blueline) spring, you can have the spring painted by us in all RAL colours, at an additional cost. Furthermore, it is possible to order the shock absorber as Wilbers Nightline. The aluminium upper surfaces in the Nightline are matt black anodised, the spring is black painted, and applications serving the setting of the shock absorber are red anodised. For surcharge, see form (please specify colour during the order process)
- Also available in various lengths for raising or lowering: please enquire about lengths
- Please also specify during the order process: rider weight including clothing in kg, pillion weight including clothing in kg, luggage weight in kg, frequency of solo riding without luggage in %, frequency of pillion riding in %, frequency of luggage use in %, riding style (touring/sporty), intended use (racetrack/street/off-road)
