Wilbers shock absorber 633 Adjustline for Ducati 500 Pantah 78-86

Product details

Wilbers Performance Suspension Adjustline 633 Competition P, stereo shock absorber rear (set), rebound and compression damping as well as spring preload adjustable, balance tank pivotable (before delivery or before mounting the shock absorber), for Ducati 500 Pantah, type , model year 78-86, fixed ride height increase +25 mm, with ABE (General Operating Permit) according to application range.

General description

Adjustline 36 mm radial pistons in ground precision cylinders guarantee optimal function without external diameter space issues.

Adjustline 633
With balance tank on the machined part (Type H40) – the best of the best! The mounting for the pressure reservoir is made of solid aluminium and houses the adjustment units for high- and low-speed compression damping. Hydraulic locking and impacts to the chassis are prevented by a pressure relief valve. The shock absorber is fully adjustable with 22 clicks each for high-speed, low-speed, and rebound. The spring preload can be continuously modified mechanically or even hydraulic. Best materials ensure a long service life and high reliability. Damping and spring are, as always, selected according to rider data!

Features:
- With pivotable balance tank (adjustable only at the factory)
- 22-way adjustable low-speed compression damping damping
- 22-way adjustable high-speed compression damping damping
- 22-way adjustable rebound damping
- Continuous spring preload via the supplied hook wrench

Additional information and notes:

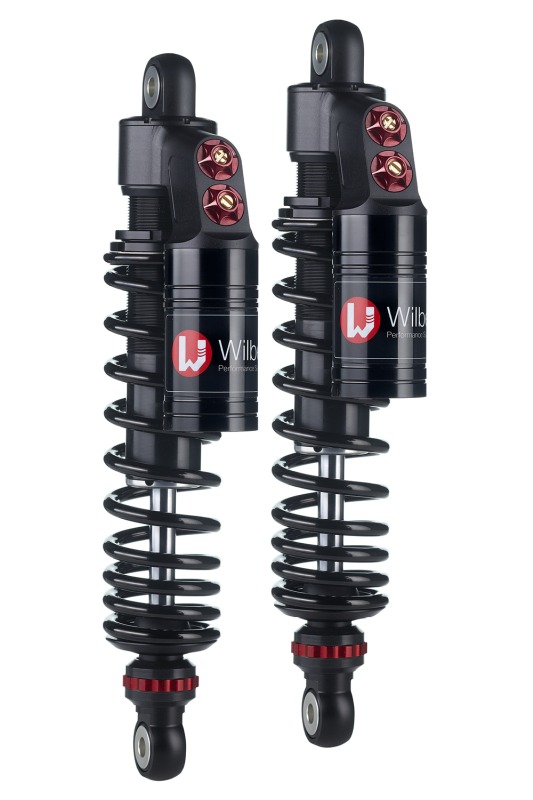

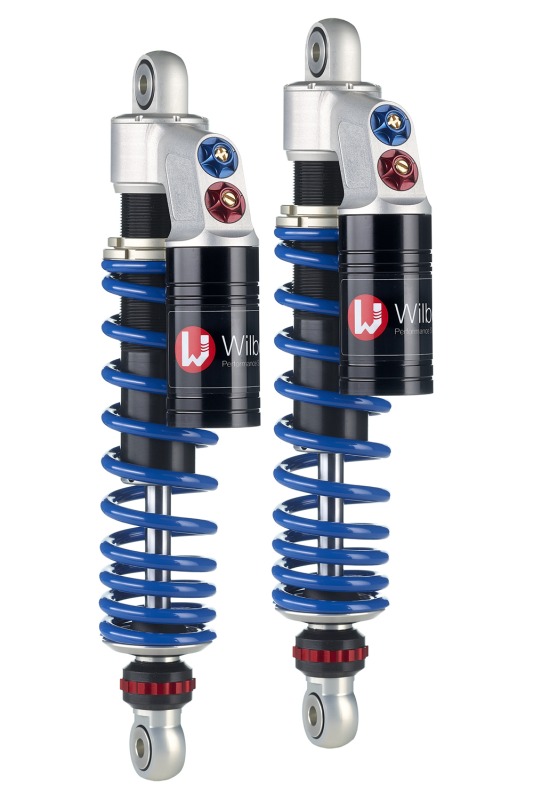

- In addition to the standard versions with black (Blackline) and blue (Blueline) spring, you can have the spring painted by us in all RAL colours for an extra charge. Furthermore, it is possible to order the shock absorber as Wilbers Nightline. The aluminium upper are matt black anodised in the Nightline, the spring is painted black, and applications that serve the setting of the shock absorber are red anodised. For extra charge, see form (please specify colour during the ordering process)
- Also available in different lengths for raising or lowering: please inquire about lengths
- Also specify during the ordering process: rider weight including clothing in kg, pillion weight including clothing in kg, luggage weight in kg, frequency of solo riding without luggage in %, frequency of pillion riding in %, frequency of riding with luggage in %, riding style (touring/sporty), intended use (racetrack/street/off-road)
