Wilbers shock absorber 633 Adjustline for Ducati 450 Scrambler 73-74

Product Details

Wilbers Performance Suspension Adjustline 633 Competition P, stereo shocks individually (set), rebound and compression damping damping as well as spring preload adjustable, balance tank pivotable (before delivery or before installation of the shock absorber), for Ducati 450 Scrambler, Type, Model Year 73-74, with ABE according to scope of application.

General Description

Adjustline 36 mm radial pistons in precision ground cylinders guarantee optimal function without outer diameter space issues.

Adjustline 633
With balance tank on the milled part (Type H40) - the best of the best! The mounting for the pressure reservoir is made of solid aluminium and houses the adjustment units for high and low-speed compression damping damping. Hydraulic locking and shocks to the chassis are prevented by a pressure relief valve. The shock absorber is fully adjustable with 22 clicks each for high-speed, low-speed, and rebound damping. The spring preload can be continuously adjusted mechanically or even hydraulic. The best materials ensure a long service life and high reliability. Damping and spring are, as always, selected according to rider data!

Features:
- With pivotable balance tank (only adjustable at the factory)
- 22-way adjustable low-speed compression damping damping
- 22-way adjustable high-speed compression damping damping
- 22-way adjustable rebound damping
- Stepless spring preload via included hook wrench

Additional information and notes:

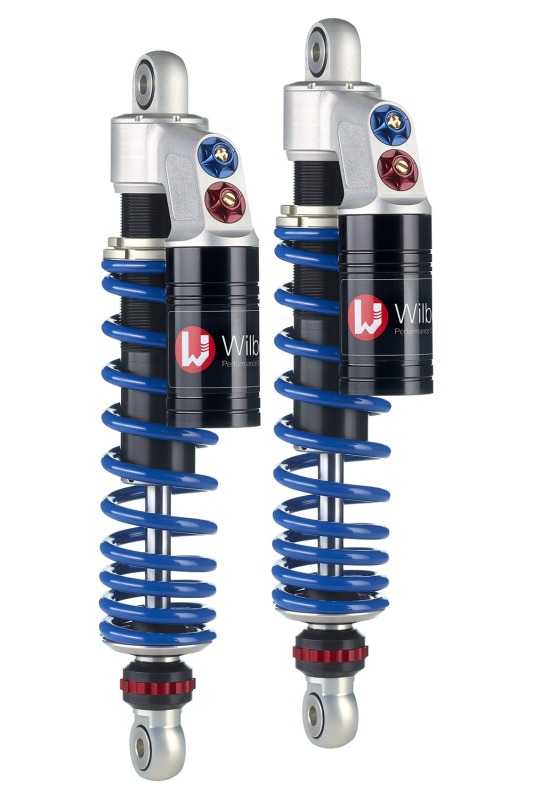

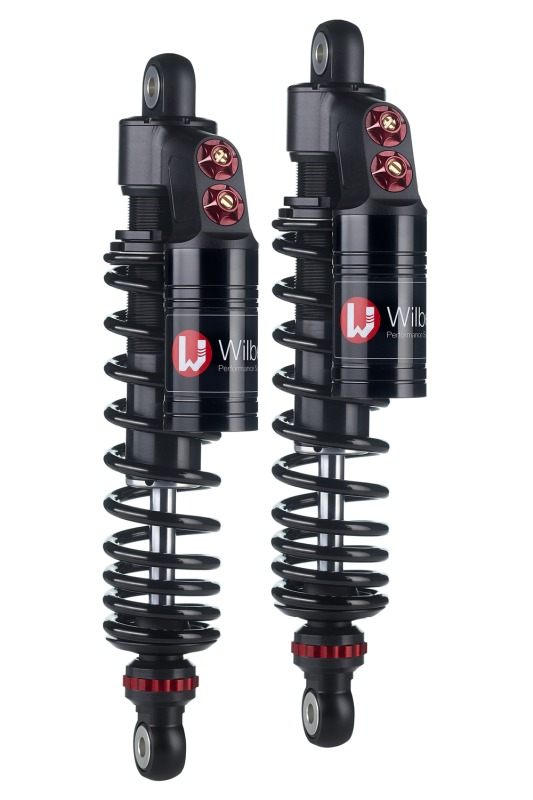

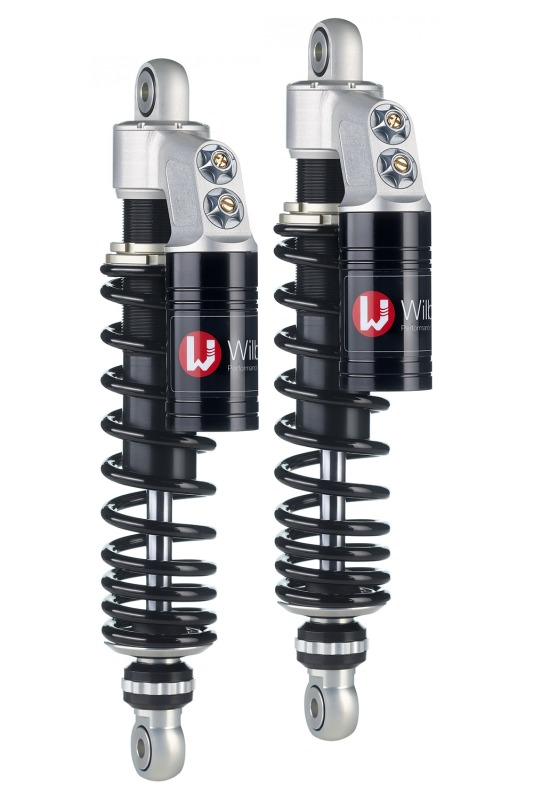

- In addition to the basic versions with black (Blackline) and blue (Blueline) spring, you can, for an additional charge, have the spring painted by us in all RAL colours. Furthermore, it is possible to order the shock absorber as Wilbers Nightline. The aluminium upper surfaces are matt black anodised in the Nightline, the spring is painted black, and applications used for adjusting the shock absorber are red anodised. For surcharge, see form (please specify colour in the order process)
- Also available in various lengths for raising or lowering: please enquire about lengths
- Please also specify in the order process: rider weight including clothing in kg, pillion weight including clothing in kg, luggage weight in kg, frequency of solo operation without luggage in %, frequency of pillion operation in %, frequency of luggage operation in %, riding style (touring/sporty), intended use (race track/street/off-road)
