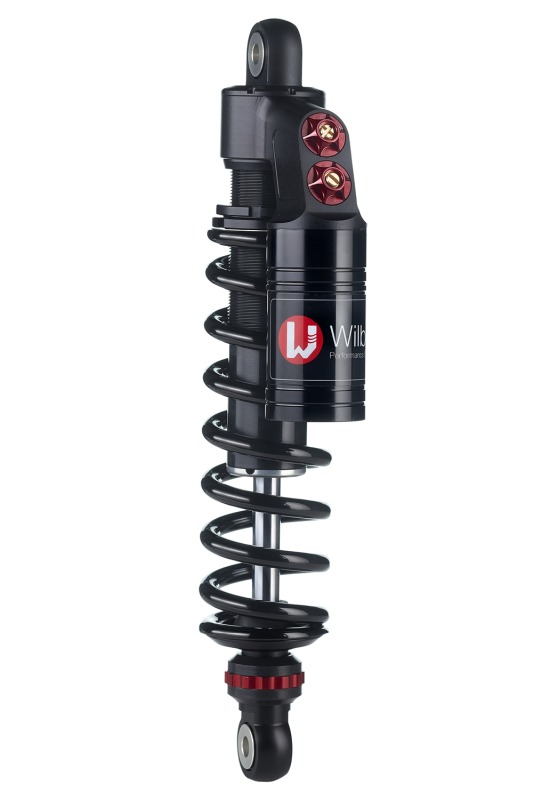

Wilbers shock absorber 633 Adjustline for BMW R 65 G/S 87-92

Product details

Wilbers Performance Suspension Adjustline 633 Competition P, mono-shock rear, adjustable for rebound and compression damping as well as spring preload, balance tank can be swivelled (before delivery or before mounting the shock absorber), for BMW R 65 G/S, type BMW 247 E, model year 87-92, with ABE according to scope of application.

General description

Adjustline 36 mm radial pistons in precision-ground cylinders guarantee optimal function without outer diameter space problems.

Adjustline 633
With balance tank on the milled part (type H40) - the best of the best! The mounting for the pressure reservoir is made of solid aluminium and houses the adjustment units for high- and low-speed compression damping. Hydraulic blocking and shocks to the chassis are prevented by an overpressure valve. The shock absorber is fully adjustable with 22 clicks each for high-speed, low-speed, and rebound. The spring preload can be continuously modified mechanically or even hydraulic. Best materials ensure a long service life and high reliability. Damping and spring are, as always, selected according to rider data!

Features:
- With swivel balance tank (only adjustable at the factory)
- 22-way adjustable low-speed compression damping damping
- 22-way adjustable high-speed compression damping damping
- 22-way adjustable rebound damping
- Continuous spring preload by means of the supplied hook wrench

Additional information and notes:

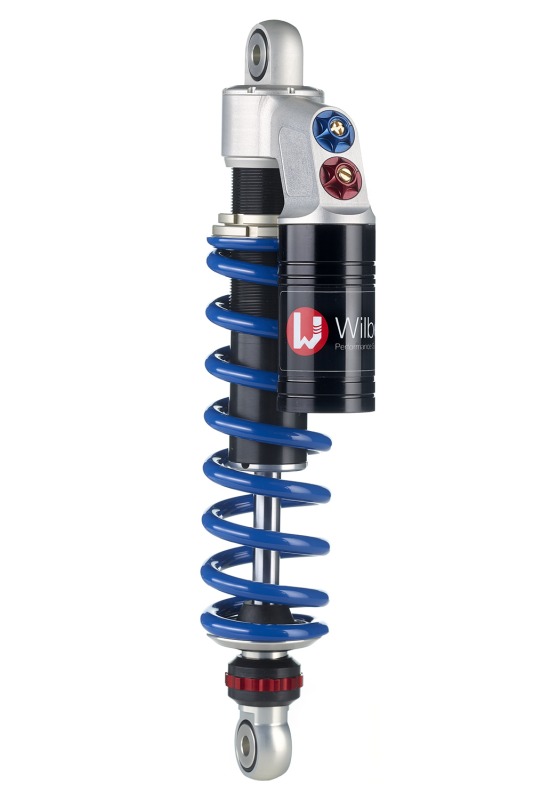

- In addition to the basic versions with black (Blackline) and blue (Blueline) spring, you can have the spring painted by us in all RAL colours, at an extra charge. Furthermore, it is possible to order the shock absorber as Wilbers Nightline. The aluminium upper surfaces are anodised matt black in the Nightline, the spring is painted black, and appliqués, which serve the setting of the shock absorber, are anodised red. For surcharges, please refer to the form (please specify colour during the ordering process).
- Also available in various lengths for raising or lowering: Please enquire about lengths.
- Please also specify during the ordering process: rider weight including clothing in kg, pillion weight including clothing in kg, luggage weight in kg, frequency of solo operation without luggage in %, frequency of pillion operation in %, frequency of luggage operation in %, riding style (touring/sporty), intended use (racetrack/street/off-road)
