Wilbers shock absorber 633 Adjustline for BMW R 1200 GS (LC) 2013-16

Product details

Wilbers Performance Suspension Adjustline 633 Competition S, front for factory lowering, mono-shock rear, adjustable rebound and compression damping as well as spring preload, for BMW R 1200 GS (LC), Type R12W, model year 2013-16

General description

Adjustline 36 mm radial pistons in precision-ground cylinders guarantee optimal function without external diameter space issues.

Adjustline 633
With balance tank on the milled part (Type H40) - the best of the best! The mounting for the pressure reservoir is made of solid aluminium and houses the adjustment units for high- and low-speed compression damping. Hydraulic blocking and chassis shocks are prevented by an overpressure valve. The shock absorber is fully adjustable with 22 clicks each for high-speed, low-speed, and rebound. The spring preload can be continuously modified mechanically or even hydraulic. Best materials ensure long service life and high reliability. Damping and spring are, as always, selected according to rider data!

Features:
- With swivel balance tank (only adjustable at the factory)
- 22-way adjustable low-speed compression damping damping
- 22-way adjustable high-speed compression damping damping
- 22-way adjustable rebound damping
- Stepless spring preload via supplied hook wrench

Additional information and notes:

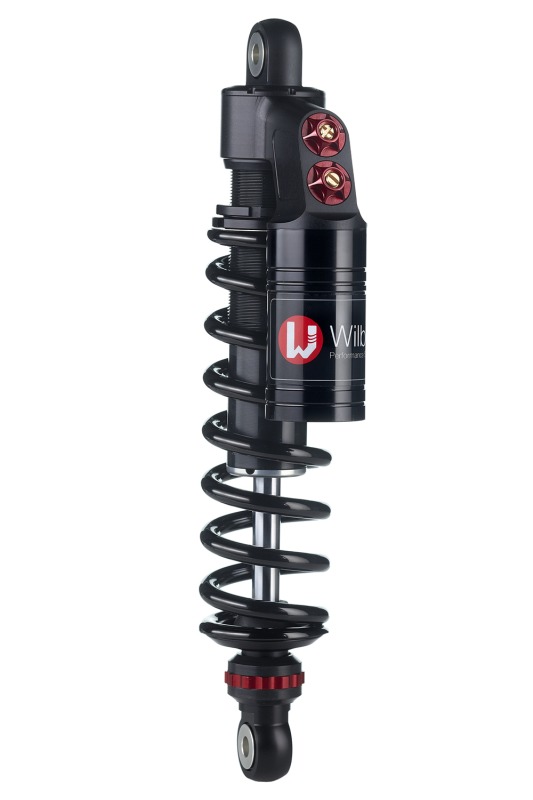

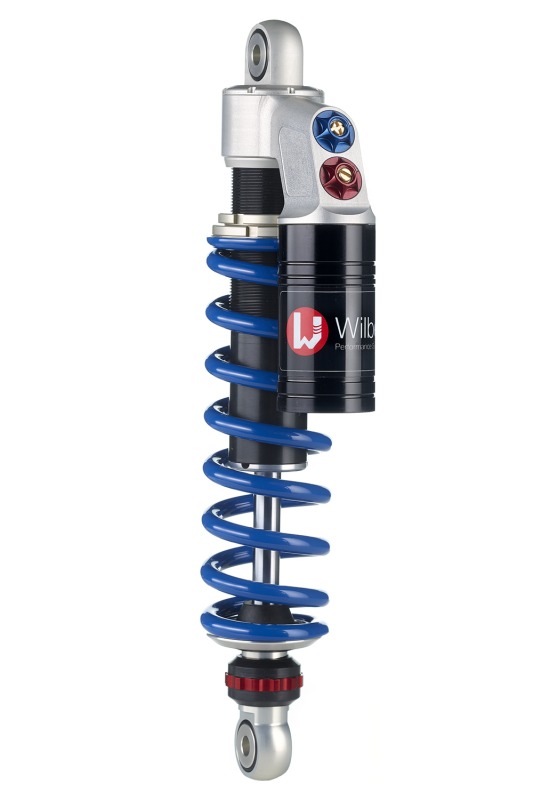

- In addition to the standard versions with black (Blackline) and blue (Blueline) spring, you can, for an extra charge, have the spring painted by us in all RAL colours. Furthermore, it is possible to order the shock absorber as Wilbers Nightline. The aluminium upper surfaces are matt black anodised in the Nightline, the spring is painted black, and applications serving the setting of the shock absorber are red anodised. For extra charge, see form (please specify colour during order process)
- Also available in different lengths for raising or lowering: please inquire about lengths
- Please also specify during the order process: rider weight including clothing in kg, pillion weight including clothing in kg, luggage weight in kg, frequency of solo operation without luggage in %, frequency of pillion operation in %, frequency of luggage operation in %, riding style (touring/sporty), intended use (racetrack/street/off-road)
