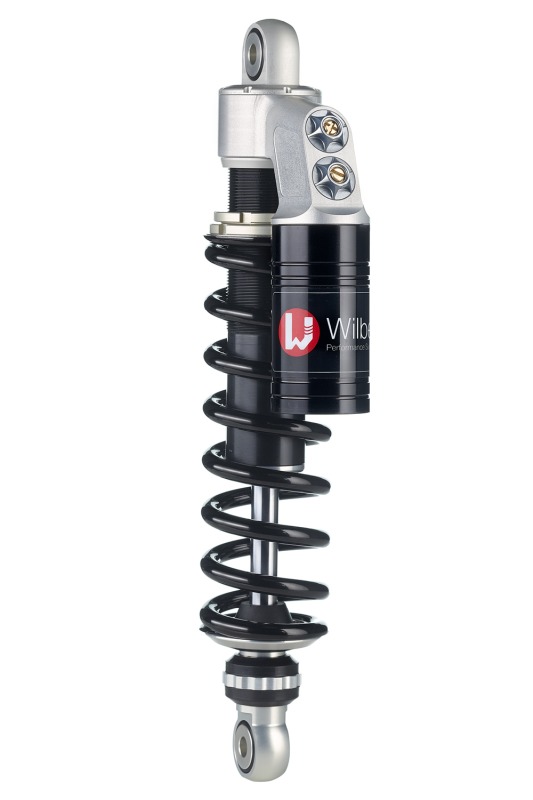

Wilbers shock absorber 633 Adjustline for BMW K 1100 LT 92-98

Product details

Wilbers Performance Suspension Adjustline 633 Competition P, mono-shock rear, rebound and compression damping as well as spring preload adjustable, balance tank pivotable (before delivery or before mounting the shock absorber), for BMW K 1100 LT, Type BMW 100, model year 92-98, with ABE according to scope of application.

General description

Adjustline 36 mm radial pistons in precision-ground cylinders guarantee optimal function without external diameter space issues.

Adjustline 633
With balance tank on the milled part (Type H40) - the best of the best! The mounting for the pressure reservoir is made of solid aluminium and houses the adjustment units for high and low-speed compression damping. Hydraulic blocking and impacts to the chassis are prevented by a pressure relief valve. The shock absorber is fully adjustable with 22 clicks each for high-speed, low-speed, and rebound. The spring preload can be continuously modified mechanically or even hydraulic. Best materials ensure a long service life and high reliability. Damping and spring are, as always, selected based on rider data!

Features:
- With pivotable balance tank (only adjustable at the factory)
- 22-way adjustable low-speed compression damping damping
- 22-way adjustable high-speed compression damping damping
- 22-way adjustable rebound damping
- Stepless spring preload using the supplied hook wrench

Additional info and notes:

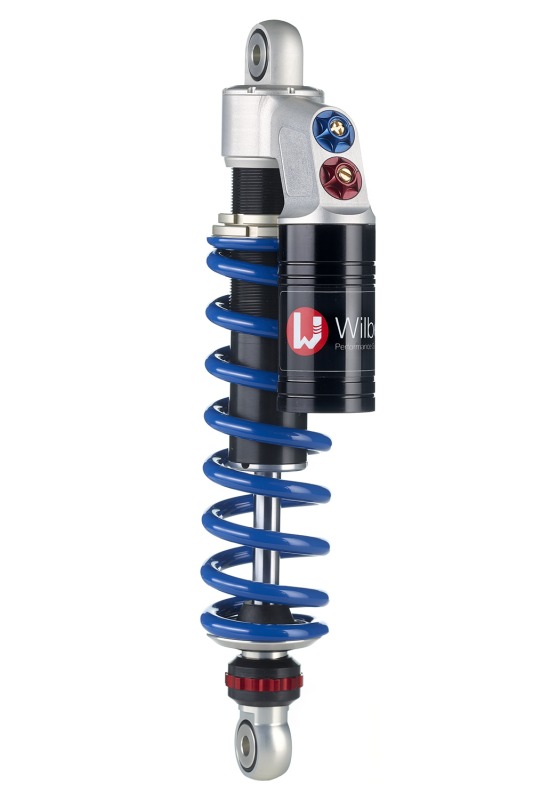

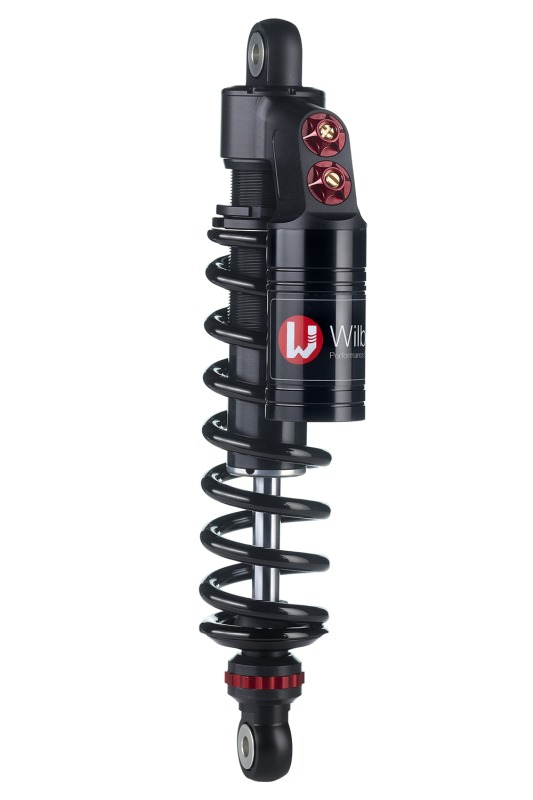

- In addition to the basic versions with black (Blackline) and blue (Blueline) spring, you can have the spring painted by us in all RAL colours for an extra charge. Furthermore, it is possible to order the shock absorber as Wilbers Nightline. The aluminium upper surfaces in the Nightline are anodised matte black, the spring is painted black, and applications serving the setting of the shock absorber are anodised red. For an extra charge, see the form (please specify colour during the ordering process)
- Also available in various lengths for raising or lowering: please enquire about lengths
- During the ordering process, please also specify: rider weight including clothing in kg, pillion weight including clothing in kg, luggage weight in kg, frequency of solo operation without luggage in %, frequency of pillion operation in %, frequency of luggage operation in %, riding style (touring/sporty), intended use (racetrack/street/off-road)
