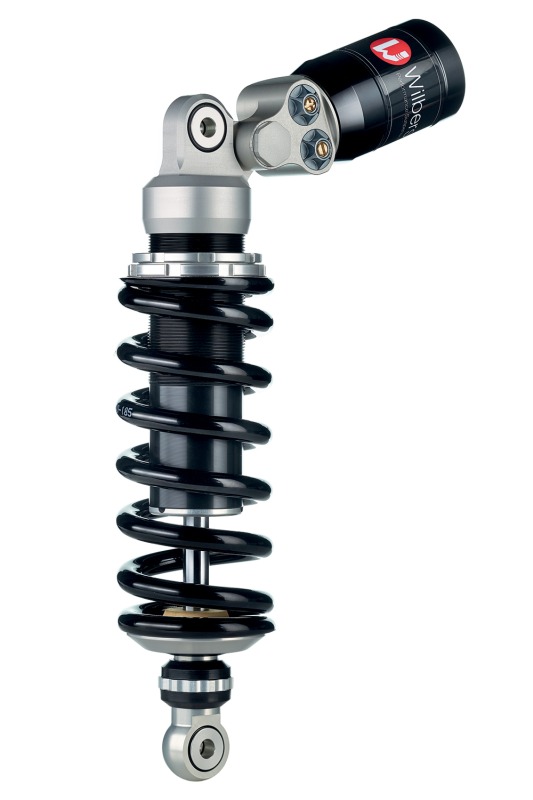

Wilbers shock absorber 633 Adjustline for Bimota DB 07 08-

Product details

Wilbers Performance Suspension Adjustline 633 Competition P, mono-shock absorber rear, adjustable rebound and compression damping as well as spring preload, pistol-shaped and pivotable piggyback reservoir (installed before delivery or before mounting the shock absorber), for Bimota DB 07, type DB 7, model year 08-, with ABE according to scope of application.

General description

Adjustline 36 mm radial pistons in ground precision cylinders guarantee optimal function without outer diameter space issues.

Adjustline 633
With pivotable balance tank (Type H40) - the best of the best! The mounting for the pressure reservoir is made from solid aluminium and houses the adjusters for the high- and low-speed compression damping. Hydraulic blocking and impacts to the chassis are prevented by an overpressure valve. The shock absorber is fully adjustable with 22 clicks each for high-speed, low-speed, and rebound damping. The spring preload can be continuously modified mechanically or even hydraulic. Best materials ensure a long service life and high reliability. Damping and spring are, as always, selected according to rider data!

Features:
- With pivotable balance tank (only adjustable at the factory)
- 22-way adjustable low-speed compression damping damping
- 22-way adjustable high-speed compression damping damping
- 22-way adjustable rebound damping
- Continuous spring preload via the supplied hook wrench.

Additional information and notes:

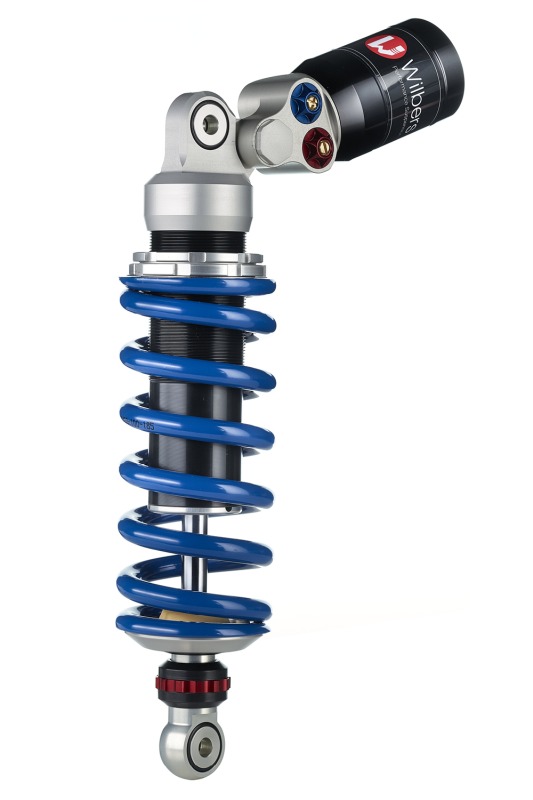

- In addition to the basic versions with black (Blackline) and blue (Blueline) spring, you can, for an extra charge, have the spring painted by us in all RAL colours. Furthermore, it is possible to order the shock absorber as Wilbers Nightline. The aluminium upper surfaces are matt black anodised in the Nightline, the spring is painted black, and applications that serve the setting of the shock absorber are red anodised. For extra charge, see form (please specify colour in the order process).
- Also available in various lengths for raising or lowering: please enquire about lengths.
- During the ordering process, please also state: rider weight including clothing in kg, pillion weight including clothing in kg, luggage weight in kg, frequency of solo operation without luggage in %, frequency of pillion operation in %, frequency of luggage operation in %, riding style (touring/sporty), intended use (race track/street/off-road)
