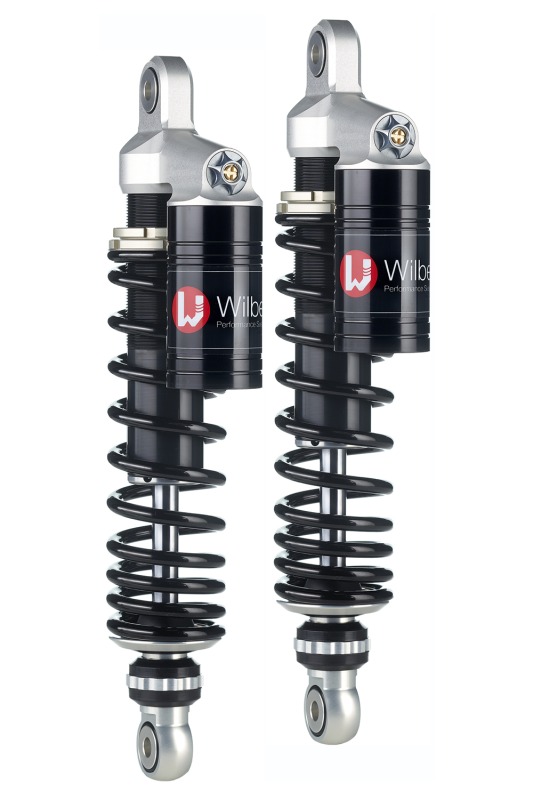

Wilbers shock absorber 632 Adjustline for Yamaha XJR 400 93-

Product details

Wilbers Performance Suspension Adjustline 632 Competition, stereo shock absorbers rear (set), rebound and compression damping as well as spring preload adjustable, piggyback reservoir with milled part mounted on the shock absorber, for Yamaha XJR 400, type, model year 93-, with ABE according to scope of use.

General description

Adjustline 36 mm radial pistons in ground precision cylinders guarantee optimum function without external diameter space issues.

Adjustline 632
The ultimate in motorcycle-shock absorbers! The upper mounting consists of a milled part. It serves as a connection to the balance tank of the compression damping and houses the adjustment knobs for the low and high-speed range of the compression damping. 22 clicks per range allow for optimum fine adjustment. At maximum compression speeds, a pressure relief valve prevents the shock absorber from hydraulic and uncontrolled impacts from being transmitted into the chassis. Rebound damping can be externally adjusted in 22 clicks. The spring base can be continuously preloaded.

Features:
- Larger bumps are gently filtered and absorbed by the “blow-off valve”. This protects the rider more than ever from harsh impacts.
- With balance tank on the milled part
- Continuous spring preload by means of the supplied hook wrench
- 22-way adjustable rebound damping

Additional information and notes:

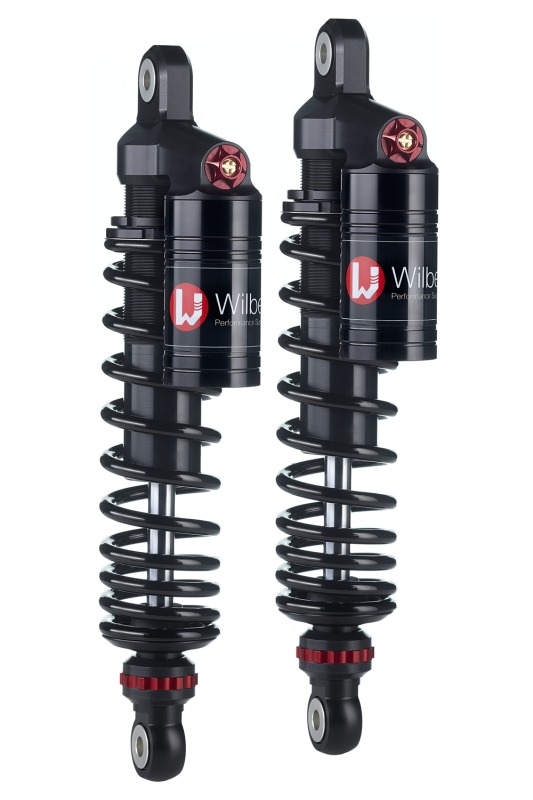

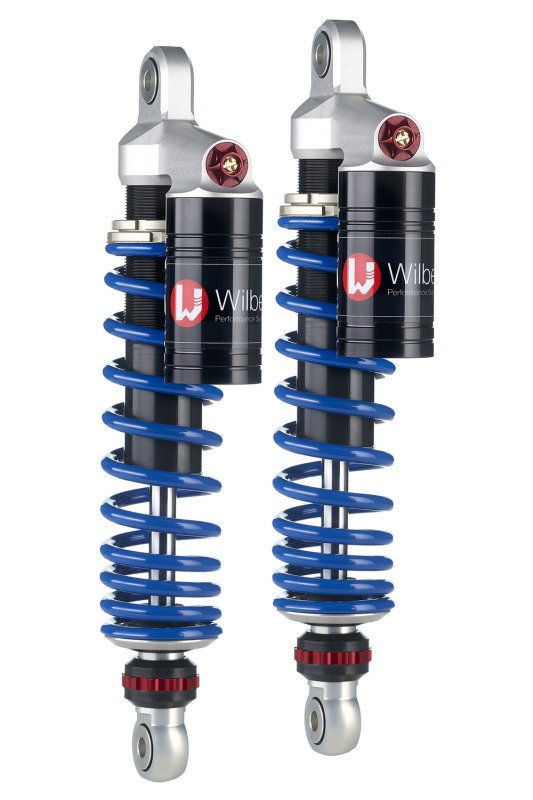

- In addition to the basic versions with black (Blackline) and blue (Blueline) spring, you can, for an extra charge, have the spring painted by us in all RAL colours. Furthermore, it is possible to order the shock absorber as Wilbers Nightline. The aluminium upper surfaces are matt black anodised in the Nightline, the spring is painted black, and applications that serve the setting of the shock absorber are red anodised. For extra charge, see form (please specify colour in the order process).
- Also available in different lengths for raising or lowering: please inquire about lengths.
- Please also specify in the order process: rider weight including clothing in kg, pillion weight including clothing in kg, luggage weight in kg, frequency of solo operation without luggage in %, frequency of pillion operation in %, frequency of luggage operation in %, riding style (touring/sporty), intended use (race track/street/off-road)
