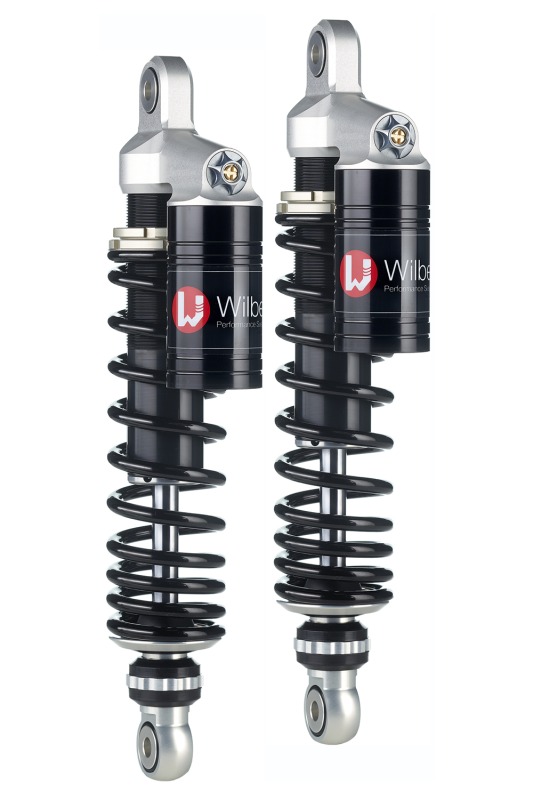

Wilbers shock absorber 632 Adjustline for Triumph Thruxton 1200 16-

Product details

Wilbers Performance Suspension Adjustline 632 Competition, stereo rear (set), rebound and compression damping as well as spring preload adjustable, remote reservoir with milled part mounted on the shock absorber, for Triumph Thruxton 1200, Type DE 01, Model year 16-, fixed raising +15 mm, with ABE (General Operating Permit) according to application range.

General description

Adjustline 36 mm radial pistons in ground precision cylinders guarantee optimal function without outer diameter space issues.

Adjustline 632
The ultimate in motorcycle-shock absorbers! The upper mounting consists of a milled part. It serves as a connection to the balance tank of the compression damping and houses the adjustment knobs for the low and high-speed range of the compression damping. 22 steps per range allow for optimal fine adjustment. At maximum compression speeds, an overpressure valve prevents the shock absorber hydraulic from blocking and uncontrolled shocks from being transferred to the chassis. Rebound damping can be adjusted externally in 22 clicks. The spring base can be continuously pre-tensioned.

Features:
- Larger impacts are gently filtered and absorbed by the “blow-off valve”. This protects the rider more than ever from harsh impacts
- With balance tank on the milled part
- Continuous spring preload using the supplied hook wrenchs
- 22-way adjustable rebound damping

Additional information and notes:
- In addition to the standard versions with black (Blackline) and blue (Blueline) spring, you can have the spring painted by us in all RAL colours, for an extra charge. Furthermore, it is possible to order the shock absorber as Wilbers Nightline. In the Nightline version, the aluminium upper surfaces are matte black anodised, the spring is painted black, and applications serving the setting of the shock absorber are red anodised. For surcharge, see form (please specify colour during the order process)
- Also available in different lengths for raising or lowering: please enquire about lengths
- Please also specify during the order process: rider weight including clothing in kg, pillion weight including clothing in kg, luggage weight in kg, frequency of solo riding without luggage in %, frequency of pillion riding in %, frequency of luggage use in %, riding style (touring/sporty), intended use (racetrack/street/off-road)
