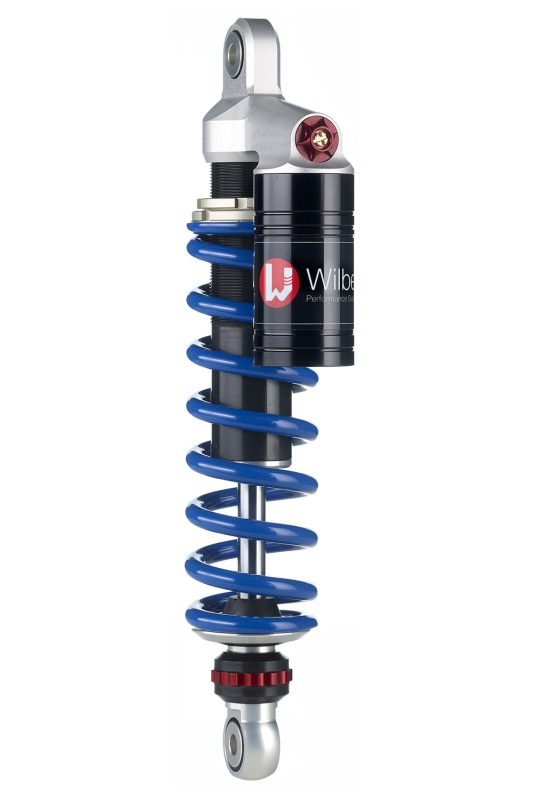

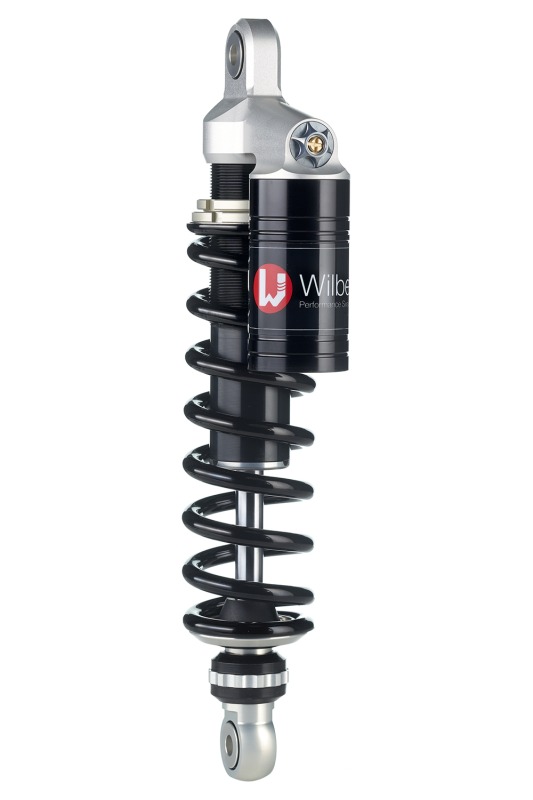

Wilbers shock absorber 632 Adjustline for Triumph Speed Twin 2018

Product Details

Wilbers Performance Suspension Adjustline 632 Competition, 30 mm lowering, stereo shock absorber rear, rebound and compression damping as well as spring preload adjustable, piggyback reservoir with milled part mounted on the shock absorber.

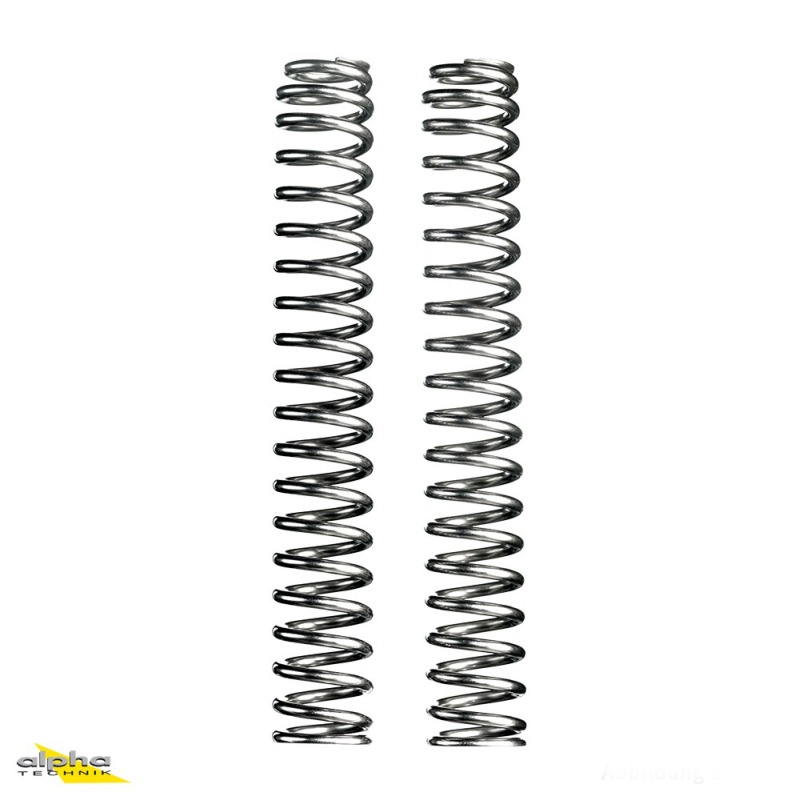

ABE only in conjunction with fork springs WI-601-0469-02 (order separately)!
For Triumph Speed Twin, type DD01, model year 2018

General Description

Adjustline 36 mm radial pistons in honed precision cylinders guarantee optimal function without external diameter clearance issues.

Adjustline 632
The ultimate in motorcycle-shock absorbers! The upper mounting consists of a milled part. It serves as a connection to the balance tank of the compression damping and houses the adjustment knobs for the low- and high-speed range of the compression damping. 22 steps per range allow for optimal fine adjustment. At maximum compression speeds, an overpressure valve prevents the shock absorber from hydraulic blocking and uncontrolled impacts from being transmitted into the chassis. The rebound damping can be adjusted externally in 22 clicks. The spring base can be continuously preloaded.

Features:
- Larger impacts are gently filtered and absorbed by the “blow-off valve”. This protects the rider from harsh impacts more than ever
- With balance tank on the milled part

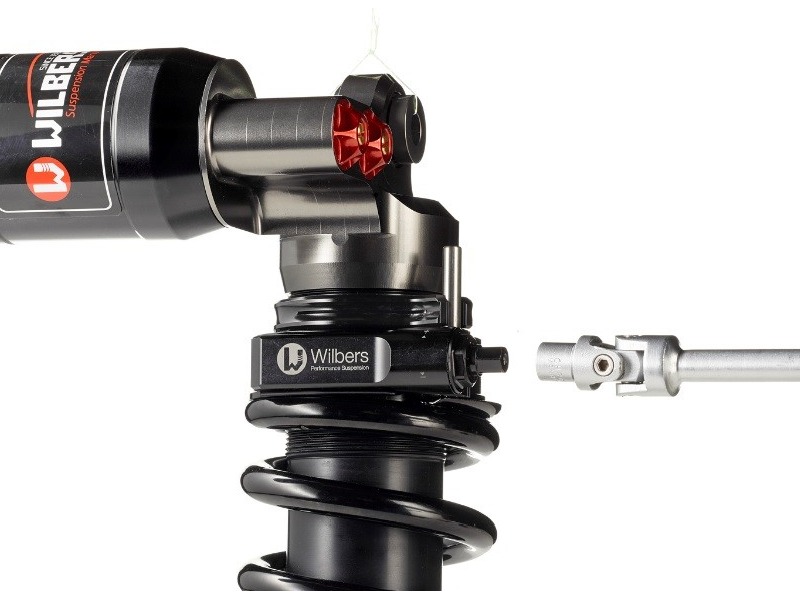

- Continuous spring preload adjustment using the supplied hook wrench
- 22-way adjustable rebound damping

Additional Information and Notes:

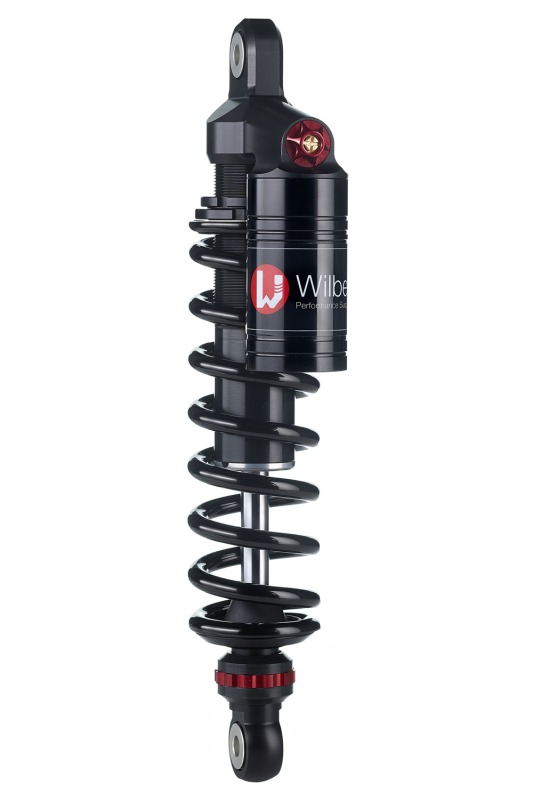

- Besides the basic versions with black (Blackline) and blue (Blueline) spring, you can, for an extra charge, have the spring painted by us in all RAL colours. Furthermore, it is possible to order the shock absorber as Wilbers Nightline. The aluminium upper surfaces in the Nightline version are anodised matt black, the spring is painted black and applications that serve the setting of the shock absorber are anodised red. For extra charge, see form (please specify colour during the order process)
- Also available in various lengths for raising or lowering: please enquire about lengths
- Please also specify in the order process: rider weight including clothing in kg, pillion weight including clothing in kg, luggage weight in kg, frequency of solo operation without luggage in %, frequency of pillion operation in %, frequency of luggage operation in %, riding style (touring/sporty), intended use (racetrack/street/off-road)
