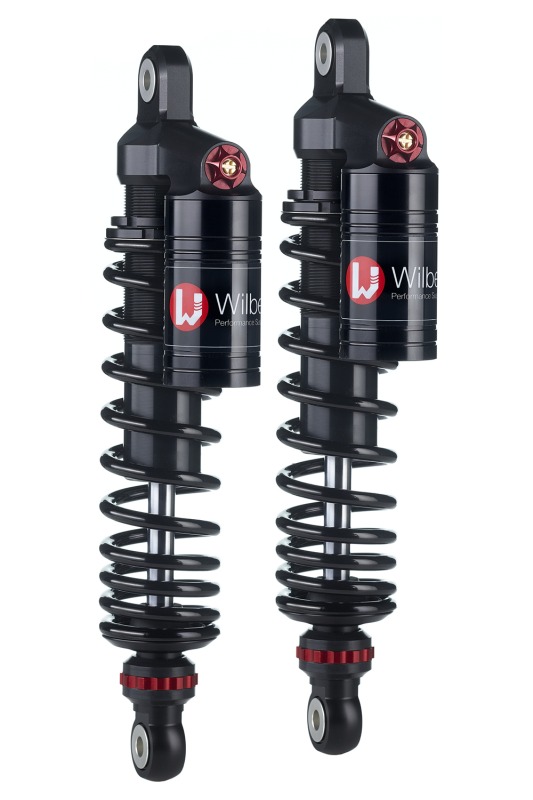

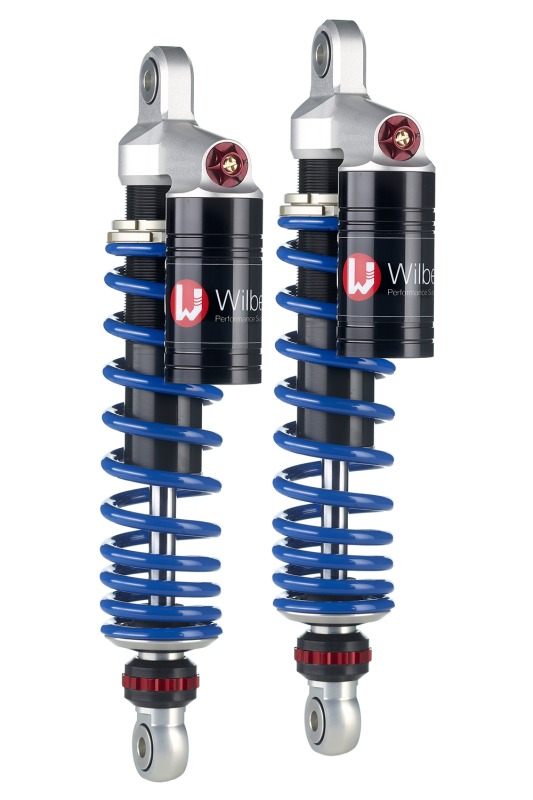

Wilbers shock absorber 632 Adjustline for Suzuki GSX 1100 Katana 80-85

Product details

Wilbers Performance Suspension Adjustline 632 Competition, stereo rear (set), rebound and compression damping as well as spring preload adjustable, pressure reservoir with milled part mounted on the shock absorber, for Suzuki GSX 1100 Katana, type GS 1100 X, model year 80-85, with ABE according to scope of application.

General description

Adjustline 36 mm radial pistons in ground precision cylinders guarantee optimal function without clearance issues in the outer diameter.

Adjustline 632
The ultimate in motorcycle-shock absorbers! The upper mounting consists of a milled part. It serves as a connection to the balance tank of the compression damping and houses the adjustment knobs for the low- and high-speed ranges of the compression damping. 22 stages per range allow for optimal fine adjustment. At maximum compression speeds, an overpressure valve prevents the shock absorber hydraulic from blocking and uncontrolled shocks from being transferred to the chassis. The rebound can be adjusted externally in 22 clicks. The spring base can be infinitely preloaded.

Features:
- Larger impacts are gently filtered and absorbed by the “blow-off valve”. This protects the rider more than ever from harsh impacts.
- With balance tank on the milled part.
- Infinitely adjustable spring preload using the supplied hook wrenchs.
- 22-way adjustable rebound damping.

Additional information and notes:
- In addition to the basic versions with black (Blackline) and blue (Blueline) spring, you can have the spring painted by us in all RAL colours, at an extra charge. Furthermore, it is possible to order the shock absorber as a Wilbers Nightline. The aluminium upper surfaces are matt black anodised in the Nightline, the spring is painted black, and applications serving the setting of the shock absorber are red anodised. For extra charge, see form (please specify colour in the order process).
- Also available in various lengths for raising or lowering: please enquire about lengths.
- Please also specify in the order process: rider weight including clothing in kg, pillion weight including clothing in kg, luggage weight in kg, frequency of solo operation without luggage in %, frequency of pillion operation in %, frequency of luggage operation in %, riding style (touring/sporty), intended use (racetrack/street/off-road).
