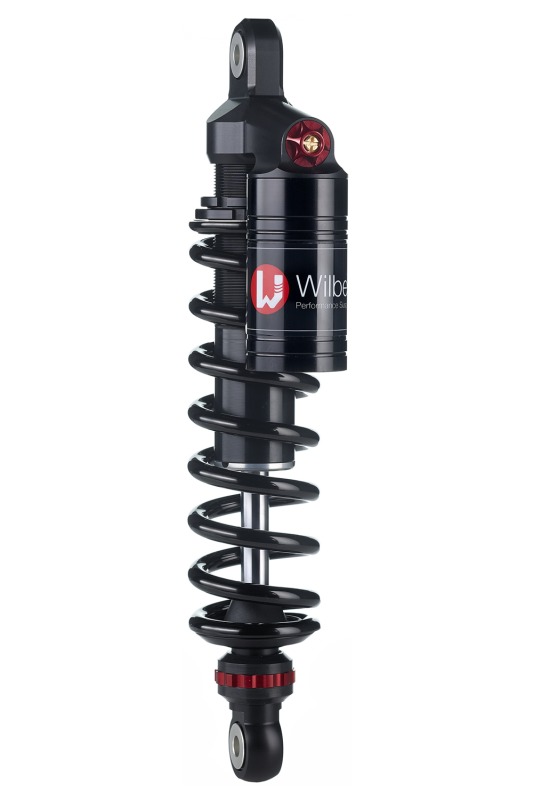

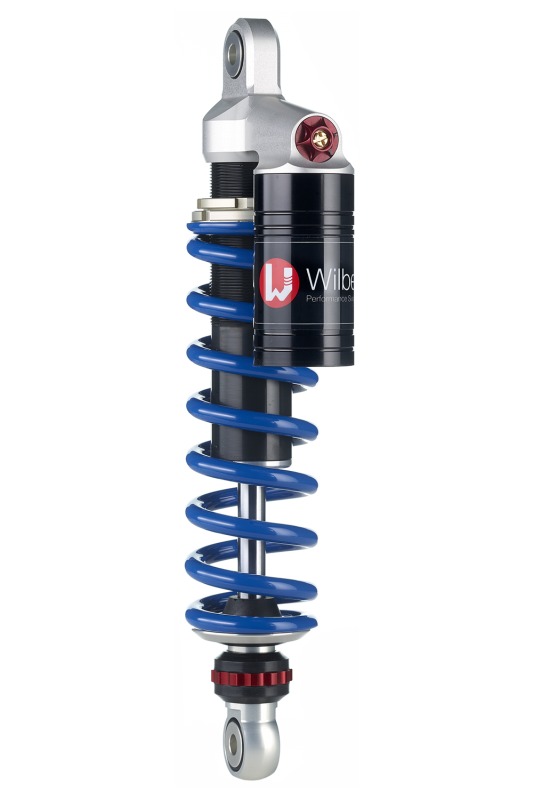

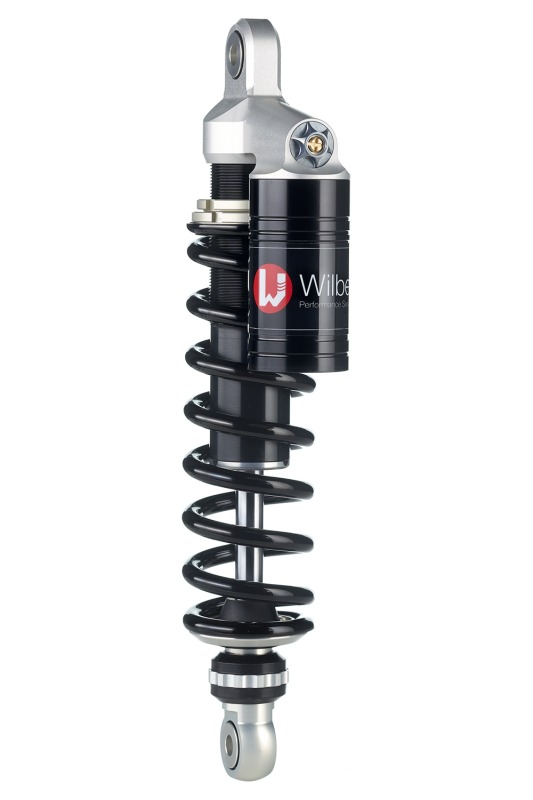

Wilbers shock absorber 632 Adjustline for Moto Guzzi Quota 1000 92-

Product details

Wilbers Performance Suspension Adjustline 632 Competition, mono-shock absorber rear, rebound and compression damping as well as spring preload adjustable, piggyback reservoir with milled part mounted on the shock absorber, for Moto Guzzi Quota 1000, Type KB, model year 92-, with ABE according to scope of use.

General description

Adjustline 36 mm radial pistons in ground precision cylinders guarantee optimal function without outer diameter space problems.

Adjustline 632
The ultimate in motorcycle shock absorbers! The upper mounting consists of a milled part. It serves as a connection to the balance tank of the compression damping and houses the adjustment knobs for the low- and high-speed range of the compression damping. 22 steps per range allow for optimal fine adjustment. At maximum compression speeds, an overpressure valve prevents the shock absorber hydraulic from blocking and uncontrolled shocks from being transferred to the chassis. The rebound damping can be adjusted externally in 22 clicks. The spring base can be continuously preloaded.

Features:
- Larger impacts are gently filtered and absorbed by the “blow-off valve”. This protects the rider more than ever from harsh impacts.
- With balance tank on the milled part
- Stepless spring preload using the supplied hook wrench
- 22-way adjustable rebound damping

Additional information and notes:
- In addition to the basic versions with black (Blackline) and blue (Blueline) spring, you can have us paint the spring in all RAL colours at an extra charge. Furthermore, it is possible to order the shock absorber as Wilbers Nightline. The upper surfaces are anodised matt black in the Nightline, the spring is painted black, and applications serving the setting of the shock absorber are anodised red. For an extra charge, see form (please state colour in the order process).
- Also available in various lengths for raising or lowering: please enquire about lengths.
- Please also state in the order process: rider weight including clothing in kg, pillion weight including clothing in kg, luggage weight in kg, frequency of solo riding without luggage in %, frequency of pillion riding in %, frequency of riding with luggage in %, riding style (touring/sporty), intended use (race track/street/off-road)
