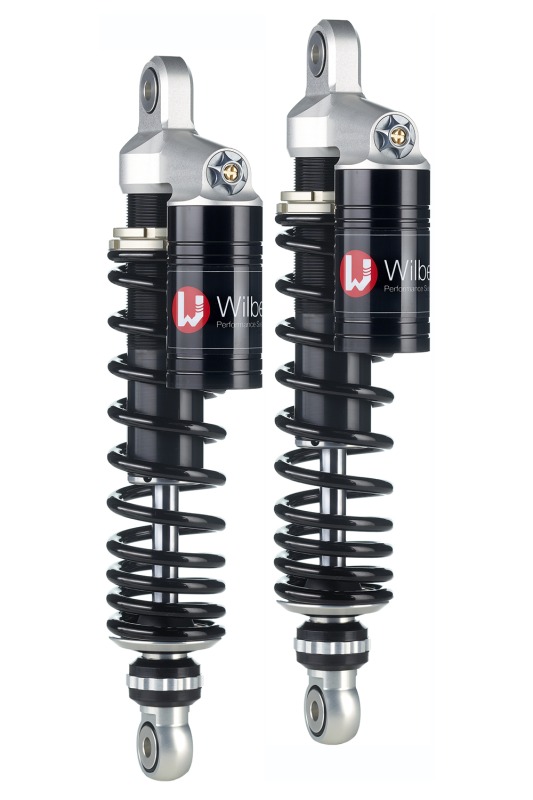

Wilbers shock absorber 632 Adjustline for Kawasaki Zephyr 400 91-

Product details

Wilbers Performance Suspension Adjustline 632 Competition, stereo rear shock absorbers (set), rebound and compression damping as well as spring preload adjustable, expansion reservoir with milled part mounted on the shock absorber, for Kawasaki Zephyr 400, type ZR 400 C, model year 91-, with ABE according to scope of application.

General description

Adjustline 36 mm radial pistons in precision ground cylinders guarantee optimal function without external diameter space issues.

Adjustline 632
The ultimate in motorcycle-shock absorbers! The upper mounting consists of a milled part. It serves as a connection to the balance tank of the compression damping and houses the adjustment knobs for the low and high-speed range of the compression damping. 22 clicks per range allow for optimal fine adjustment. At maximum compression speeds, an overpressure valve prevents the shock absorber from hydraulic blocking and uncontrolled shocks from being transferred to the chassis. The rebound can be adjusted externally in 22 clicks. The spring base can be continuously preloaded.

Features:
- Larger impacts are gently filtered and absorbed by the “blow-off valve”, protecting the rider more than ever from harsh bumps.
- With balance tank on the milled part.
- Stepless spring preload using the supplied hook wrench.
- 22-way adjustable rebound damping.

Additional information and notes:
- In addition to the standard versions with black (Blackline) and blue (Blueline) spring, you can have the spring painted by us in all RAL colours for an extra charge. Furthermore, it is possible to order the shock absorber as Wilbers Nightline. In the Nightline version, the aluminium upper surfaces are anodised matt black, the spring is painted black, and the applications that serve the setting of the shock absorber are anodised red. For an extra charge, please refer to the form (please specify colour in the order process).
- Also available in various lengths for raising or lowering: please enquire about lengths.
- Please also specify in the order process: rider weight including clothing in kg, pillion weight including clothing in kg, luggage weight in kg, frequency of solo operation without luggage in %, frequency of pillion operation in %, frequency of luggage operation in %, riding style (touring/sporty), intended use (racetrack/street/off-road).
