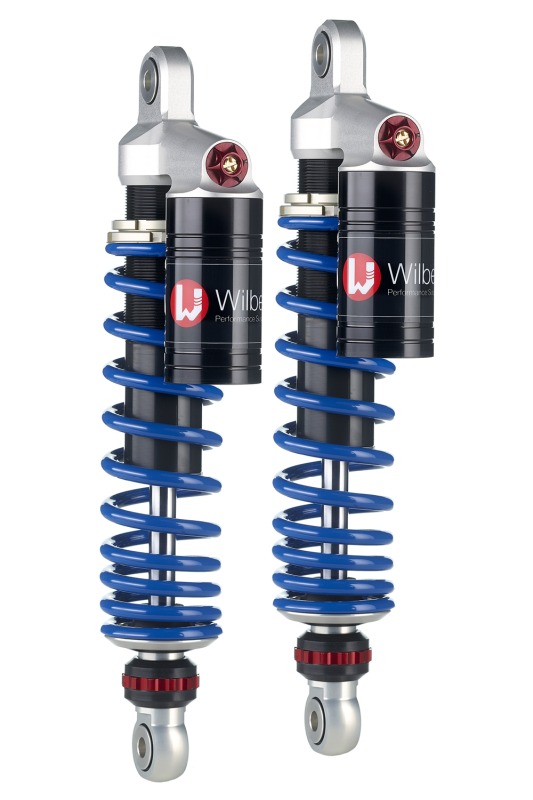

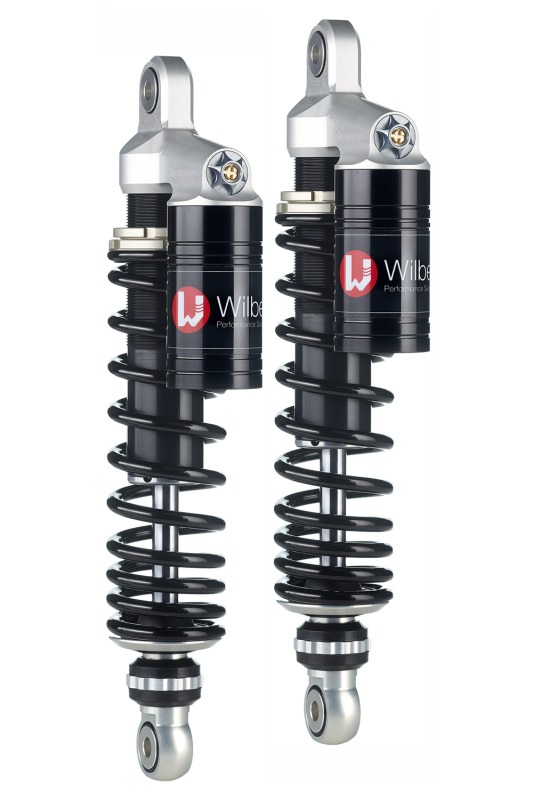

Wilbers shock absorber 632 Adjustline for Honda GL 1200 DX 84-88

Product details

Wilbers Performance Suspension Adjustline 632 Competition, stereo shock absorbers rear (set), rebound and compression damping as well as spring preload adjustable, pressure equalisation reservoir with milled part mounted on the shock absorber, for Honda GL 1200 DX, type SC 14, model year 84-88, with ABE according to scope of application.

General description

Adjustline 36 mm radial pistons in ground precision cylinders guarantee optimal function without external diameter space issues.

Adjustline 632
The ultimate in motorcycle-shock absorbers! The upper mounting consists of a milled part. It serves as a connection to the balance tank of the compression damping and houses the adjustment knobs for the low- and high-speed range of the compression damping. 22 stages per range allow for optimal fine adjustment. At maximum compression speeds, a pressure relief valve prevents the shock absorber hydraulic from blocking and uncontrolled shocks from being transferred to the chassis. The rebound can be adjusted externally in 22 clicks. The spring base can be continuously preloaded.

Features:
- Larger impacts are gently filtered and absorbed by the “blow-off valve”. This protects the rider more than ever from harsh impacts.
- With balance tank on the milled part
- Continuous spring preload using the supplied hook wrench
- 22-way adjustable rebound damping

Additional information and notes:

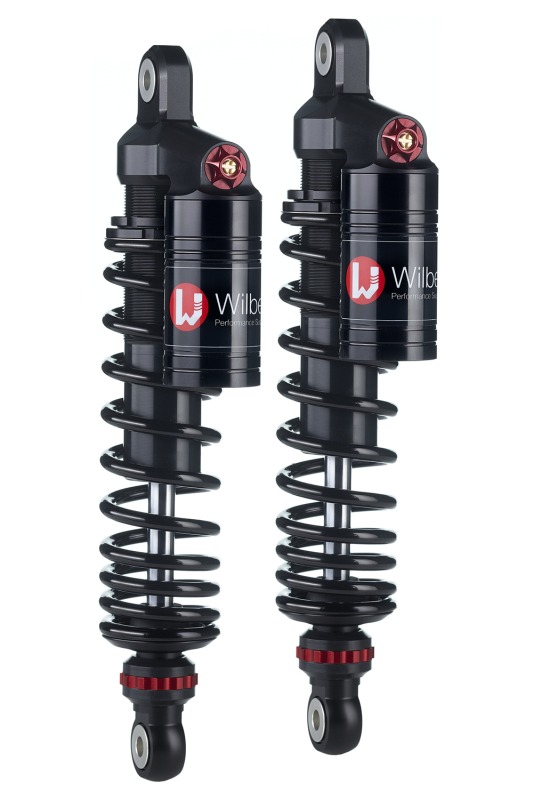

- In addition to the basic versions with black (Blackline) and blue (Blueline) spring, you can have the spring painted by us in all RAL colours for an extra charge. Furthermore, it is possible to order the shock absorber as Wilbers Nightline. The aluminium upper surfaces are matt black anodised in the Nightline, the spring is painted black, and applications serving the setting of the shock absorber are red anodised. For an extra charge, see form (please specify colour during the ordering process)
- Also available in different lengths for raising or lowering: please enquire about lengths
- Please also specify in the ordering process: rider weight including clothing in kg, pillion weight including clothing in kg, luggage weight in kg, frequency of solo use without luggage in %, frequency of pillion use in %, frequency of luggage use in %, riding style (touring/sporty), intended use (racetrack/street/off-road)
