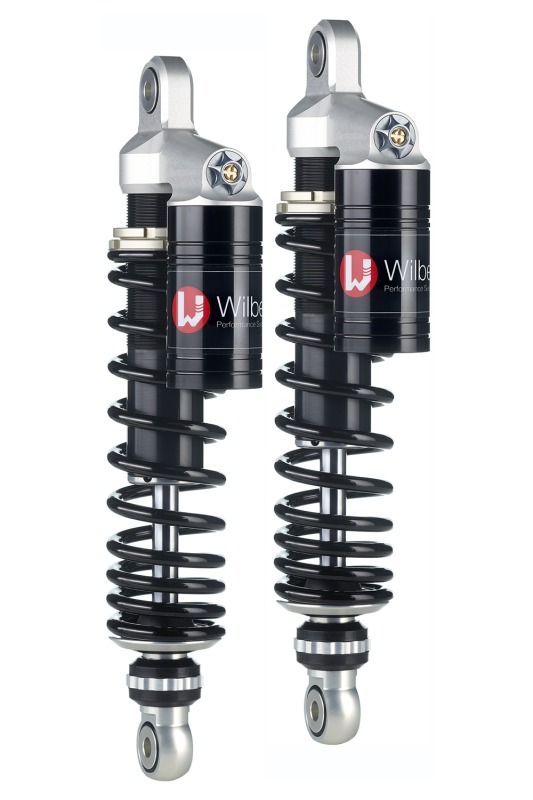

Wilbers shock absorber 632 Adjustline for Harley Davidson 883 Iron 10- Lowering -30 mm

Product Details

Wilbers Performance Suspension Adjustline 632 Competition, stereo shock absorber rear (set), adjustable rebound and compression damping as well as spring preload, pressure expansion reservoir with machined part mounted on the shock absorber, for Harley Davidson 883 Iron, Type XL 2, model year 10-, fixed lowering -30 mm, with ABE according to scope of use

General Description

Adjustline 36 mm radial pistons in ground precision cylinders guarantee optimal function without outer diameter space issues.

Adjustline 632
The ultimate in motorcycle-shock absorbers! The upper mounting consists of a machined part. It serves as a connection to the balance tank of the compression damping and houses the adjustment knobs for the low and high-speed range of the compression damping. 22 clicks per range allow for optimal fine adjustment. At maximum compression speeds, an overpressure valve prevents the shock absorber hydraulic from blocking and uncontrolled impacts from being transmitted to the chassis. The rebound damping can be adjusted externally in 22 clicks. The spring base can be continuously preloaded.

Features:
- Larger impacts are gently filtered and absorbed by the “blow-off valve”. This protects the rider more than ever from hard impacts
- With balance tank on the machined part
- Continuous spring preload using the supplied hook wrench
- 22-way adjustable rebound damping

Additional information and notes:

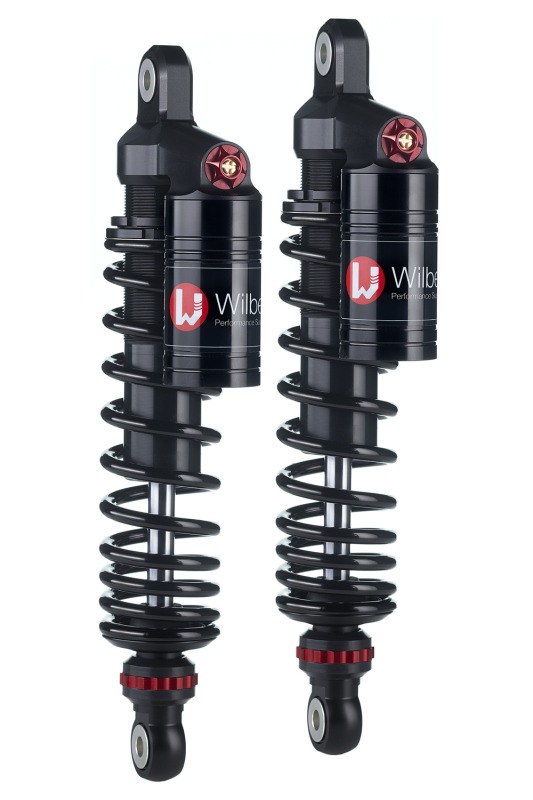

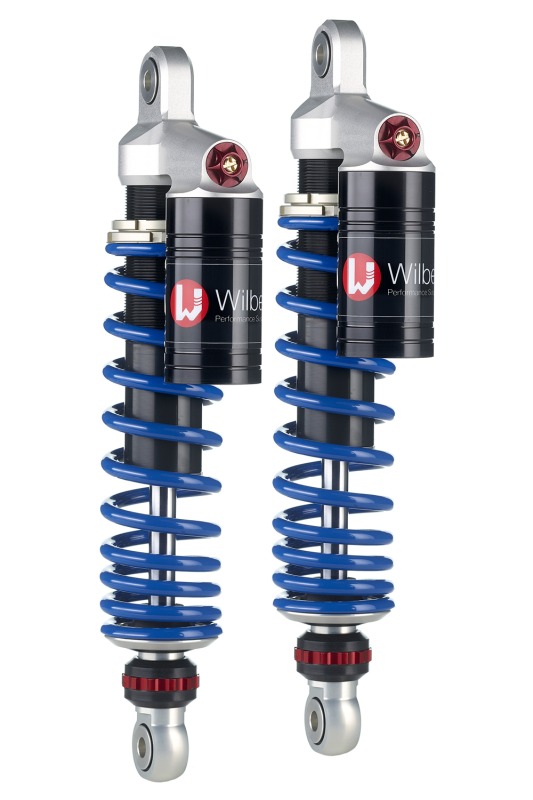

- In addition to the standard versions with black (Blackline) and blue (Blueline) spring, you can, for an extra charge, have the spring painted by us in all RAL colours. Furthermore, it is possible to order the shock absorber as Wilbers Nightline. The upper surfaces are matt black anodised in the Nightline, the spring is painted black, and applications that serve the setting of the shock absorber are red anodised. For extra charge, see form (please specify colour in the order process)
- Also available in various lengths for raising or lowering: please enquire about lengths
- Please also specify in the order process: rider weight including clothing in kg, pillion weight including clothing in kg, luggage weight in kg, frequency of solo operation without luggage in %, frequency of pillion operation in %, frequency of luggage operation in %, riding style (touring/sporty), intended use (racetrack/street/off-road)
